Echo CS-2510TES - 8 Engine

ENGINE
CS-2510TES
250Ts, 250TCs
55

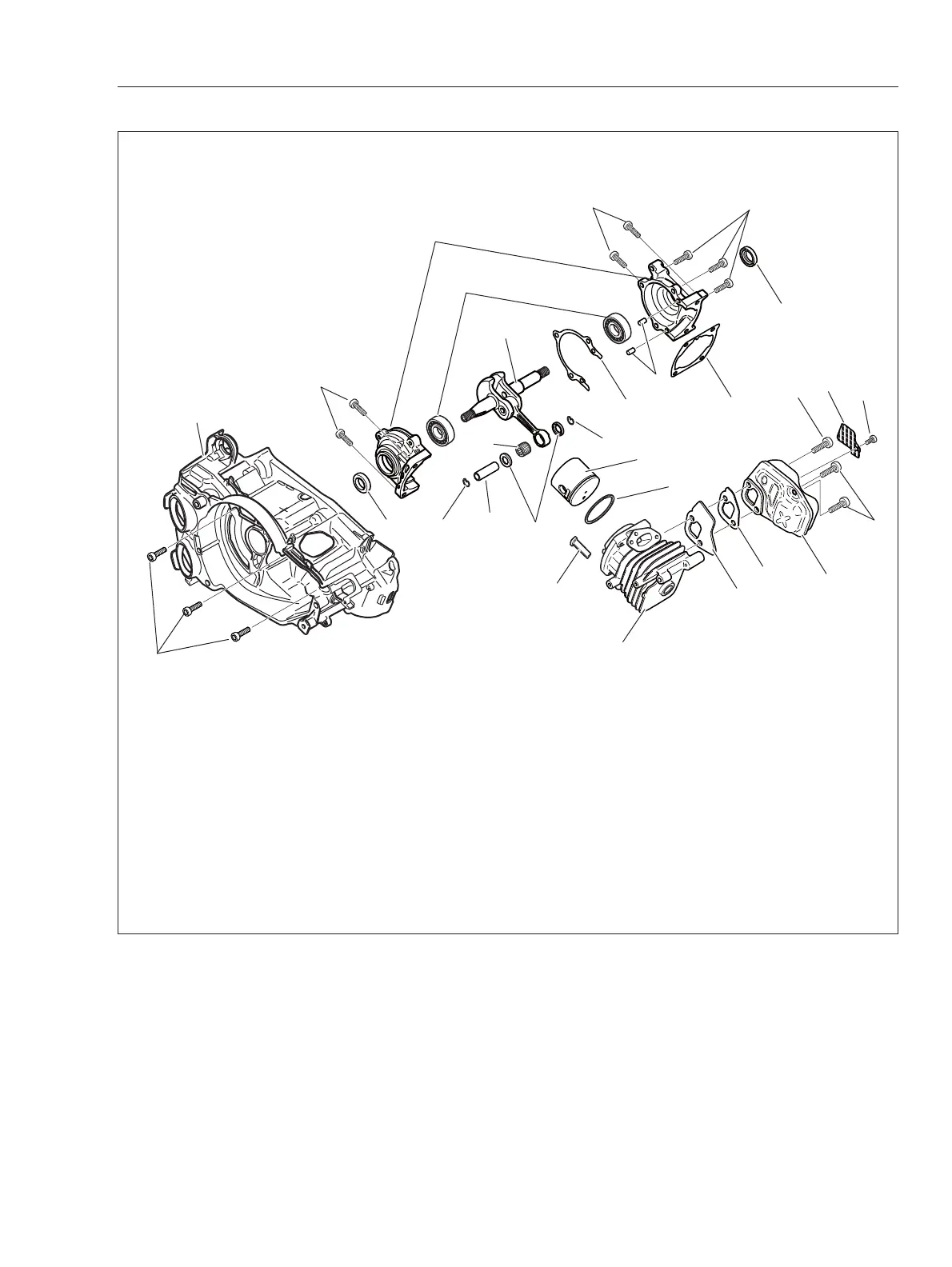

8 ENGINE
(A) Crankcase
(B) Oil seal
(C) Ball bearing
(D) Gasket (Crankcase)
(E) Pin
(F) Bolt (M4)
(G) Crankshaft
(H) Needle bearing
(J) Piston pin spacer
(K) Piston pin
(A)
(D)
(F)
(H)
(K)
(E)
(J)
(L)
(L)
(M)
(N)
(O)
(P)
(R)
(R)
(Q)
(S)
(T)
(U)
(V)
(V)
(W)
(X)
(Y)
(Z)
(L) Snap ring
(M) Piston
(N) Piston ring
(O) Cylinder
(P) Cylinder piece
(Q) Gasket (Cylinder)
(R) Bolt (M4)
(S) Exhaust plate
(T) Exhaust gasket
(U) Muffl er
(V) Bolt (M5)
(W) Spark arrester screen
(X) Screw (M4)
(Y) Engine cover
(Z) Bolt (M4)
(B)
(B)
(C)
(G)
