Echo CS-2510TES Service Manual

CHAIN BRAKE SYSTEM
CS-2510TES
250Ts, 250TCs
44

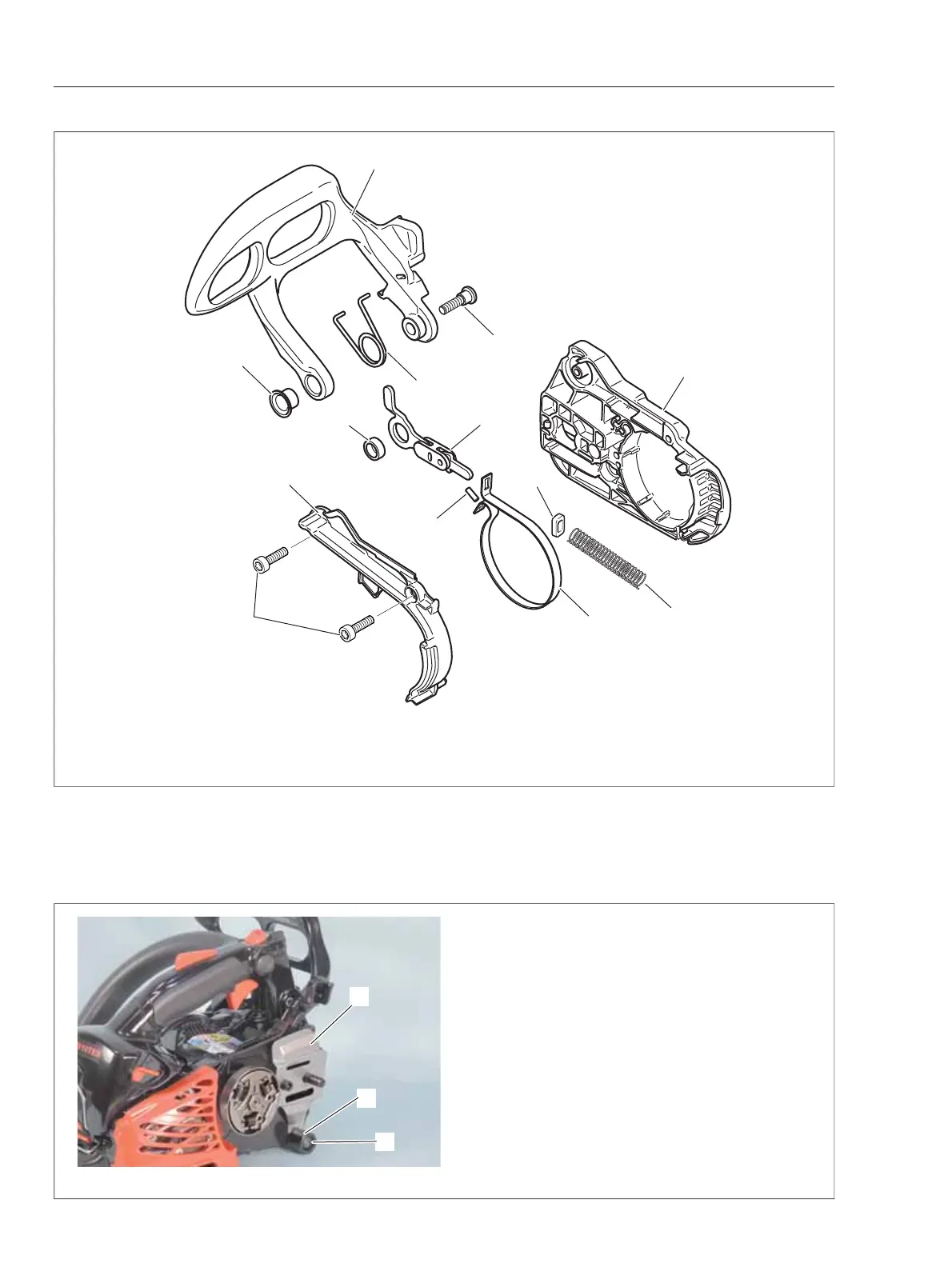

6 CHAIN BRAKE SYSTEM
(B)
(A) Brake lever
(B) Bolt (M5)
(C) Torsion spring
(D) Collar
(E) Sprocket guard
(F) Collar
(G) Brake connector
(H) Pin
(J) Brake band
(K) Spacer
(L) Compression spring
(M) Brake cover
(N) Bolt (M4)
(C)
(D)
(E)
(G)
(J)
(A)
(K)
(L)
(M)
6-1 Replacing brake lever and torsion spring
{Disassembling}
1. Remove starter assembly and sprocket guard
from the unit.
2. Remove bolt (A), chain catcher (B), and sprock-
et guard plate (C)
A
C
B
(F)
(H)
(N)
