FUEL SYSTEM
CS-2510TES
250Ts, 250TCs
40

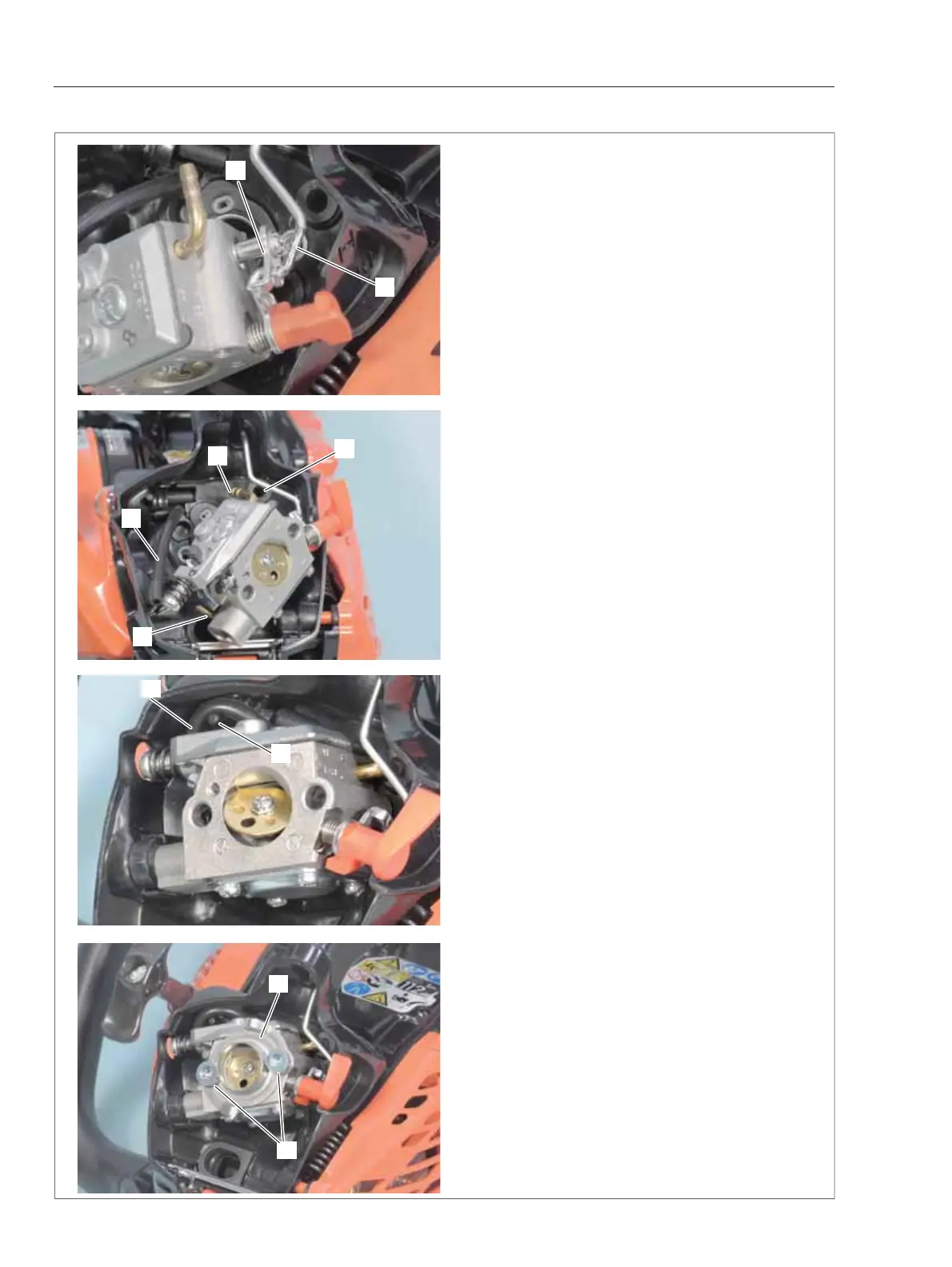

4-14 Installing carburetor
1. Connect throttle rod (A) to throttole lever (B).
2. Connect purge line (C) and joint (D) on carbure-
tor and install fuel inlet (E) to fuel line (F).
3
. Pass purge line (C) through tab (G) as shown.
4. Fasten carburetor and carburetor elbow (H) with
two bolts (J).
5. Reassemble removed parts.
A
B
C
E
D
F
H
J
C
G
