CHAIN BRAKE SYSTEM
CS-2510TES
250Ts, 250TCs
47

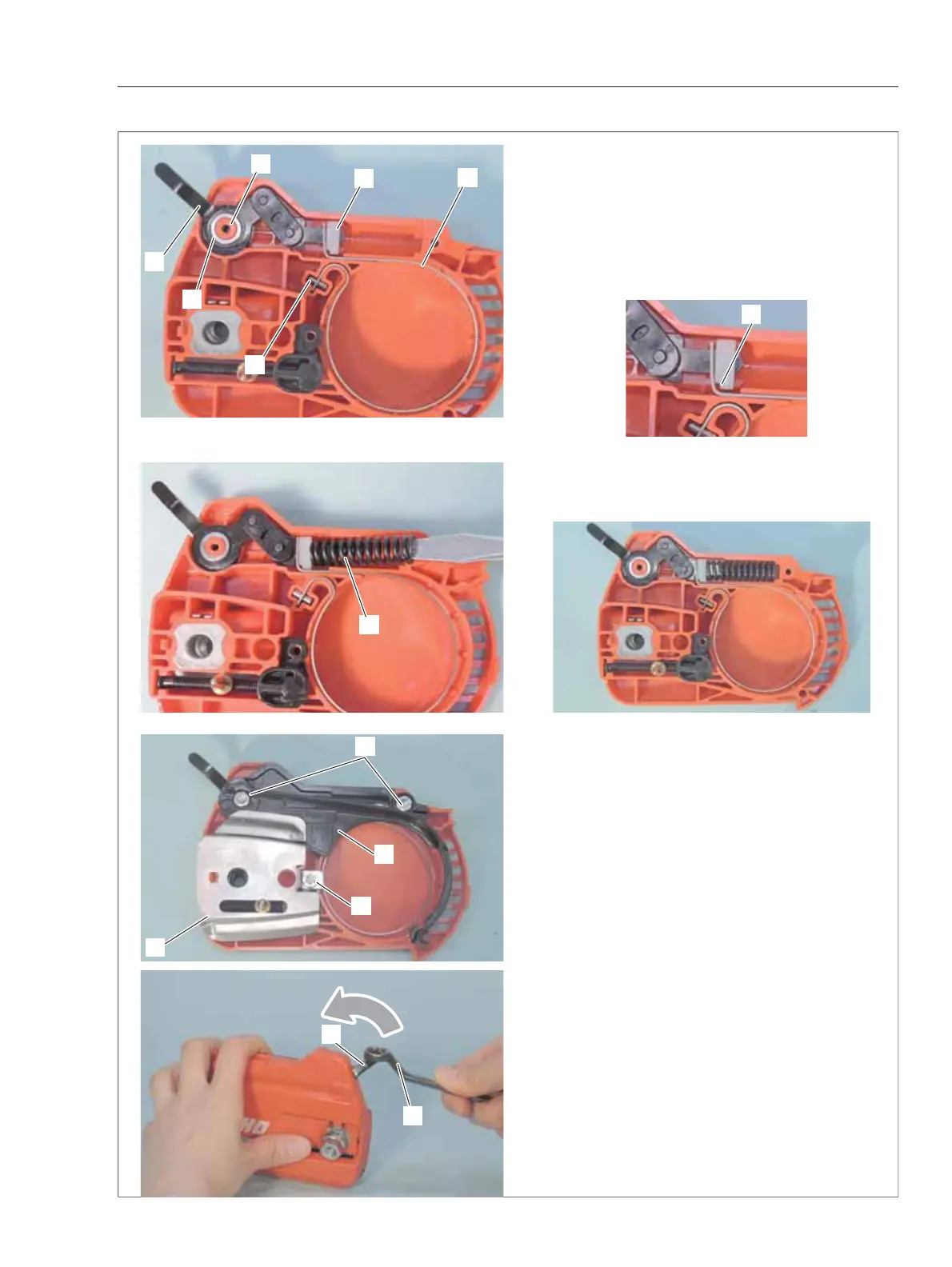

6-2 Inspecting chain brake parts (continued)
7. Apply molybdenum grease to collar (J). And put
collar (J) on boss (K) of sprocket guard.
8. Set brake connector (A), brake band (H) with pin
(G) and spacer (M) in sprocket guard as shown .
Note :
Make sure notch (m) of spacer (M) places
as shown.
9. Push compression spring (N) with driver or other
suitable tool and install compression spring (N) in
sprocket guard as shown.
10. Install brake cover (C) and tighten two bolts (F)
11. Install sprocket guard plate (E) and tighten bolt
(D).
12. Move brake connector (A) with ring wrench
(B) or other suitable tool to released position as
shown.
13. Reassemble removed parts.
J
A
M
H
N
G
m
K
D
E
F
C
A
B
To Next Page
