IGNITION SYSTEM
CS-2510TES
250Ts, 250TCs
24
3-9 Inspecting fl yweel and woodruff key (Continued)

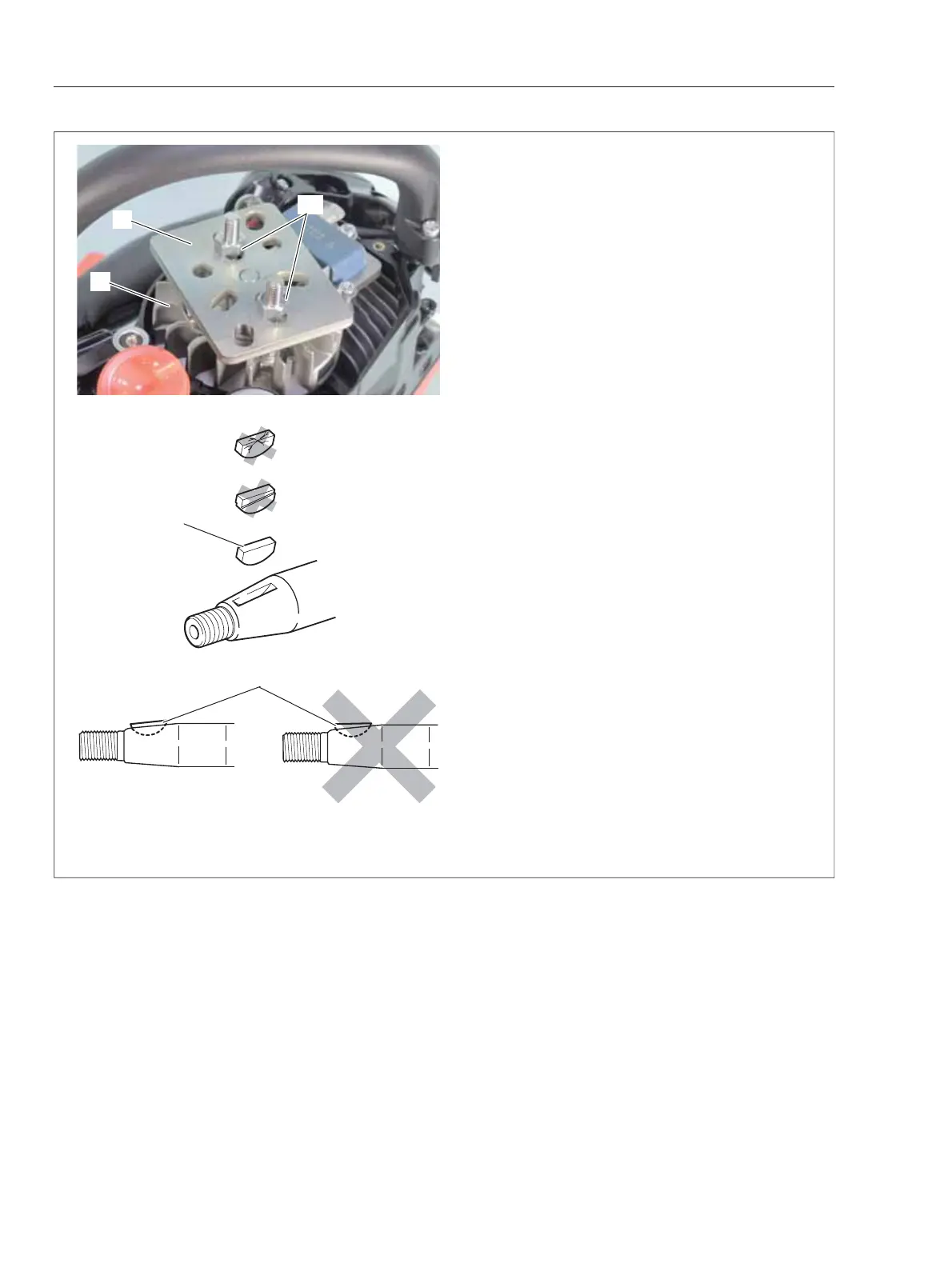

6. Remove starter pawls. Then set puller Y089-
000110 or Y089-000111 (G) on flywheel (A) as
shown.
7. Tighten two nuts (g1) on the puller alternately to
remove fl ywheel (A).
8. Inspect woodruff key (H) for damage or shear-
ing. Replace as required.
9. Wipe off oil from taper part of crankshaft and fl y-
wheel before assembling fl ywheel.
10. Install woodruff key (H) into key groove.
11. Reinstall starter pawls (Refer to “2-4 Replacing
starter pawl”).
12. Align fl ywheel key groove with woodruff key on
crankshaft. Install fl ywheel and fasten fl ywheel nut
clockwise.
g1
G
A
H
H
To Next Page
