IGNITION SYSTEM
CS-2510TES
250T
s, 250TCs
18
3-6

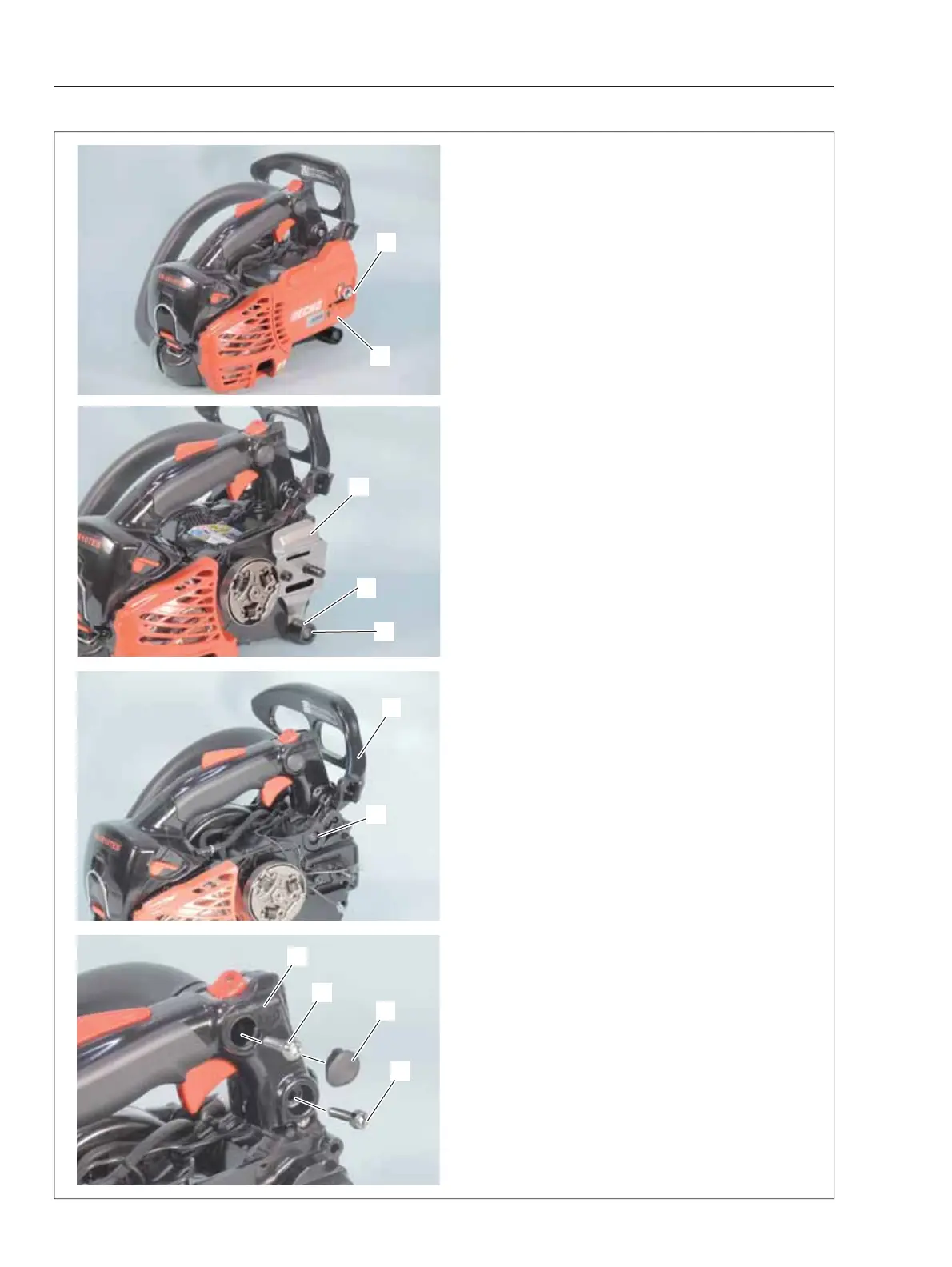

Replacing ignition switch (Continued)
4. Loosen nut (F) and remove sprocket guard (G).
5. Remove bolt (H), chain catcher (J), and sprocket
guard plate (K)
6. Remove bolt (L) and brake lever (M).
7. Remove plug (N) and bolt (P).
8. Remove bolt (Q) and rear handle lid (R).
F
G
H
K
J
P
N
Q
R
M
L
19
21
Table of Contents
Default Chapter
3
Table of Contents
3
1 Service Information
4
Specifi Cations
4
Technical Data
5
Torque Limits
6
Special Repairing Materials
6
Service Limits
7
Special Tools
8
2 Starter System
9
Disassembling Starter Assembly
10
Replacing Starter Rope
11
Assembling Starter
12
Replacing Starter Pawl
14
3 Ignition System
15
Troubleshooting Guide
16
Testing Spark
17
Inspecting Spark Plug
18
Replacing Spark Plug Cap and Coil
18
Inspecting Ignition Switch
19
Replacing Ignition Switch
19
Replacing Ignition Coil
24
Setting Pole Shoe Air Gaps
25
Inspecting Fl Ywheel and Key
25
4 Fuel System
27
Inspecting Air Fi Lter
28
Inspecting Fuel Cap and Fuel Strainer
29
Inspecting Fuel Tank and Line
30
Inspecting and Replacing Tank Vent
31
Replacing Purge Bulb
33
Replacing Fuel Line and Fuel Return Line
34
Adjusting Carburetor
36
General Adjusting Rules
36
Presetting Idle Adjust Screw, L Mixture Needle and H Mixture Needle
36
Adjusting Carburetor
37
Testing Carburetor
38
Inspecting Crankcase Pulse Passage
39
Inspecting Metering Lever Height
39
Inspecting Inlet Needle Valve
40
Inspecting Diaphragm and Others
41
Replacing Welch Plug
41
Installing Carburetor
42
5 Clutch System
43
Inspecting Clutch Parts
43
Replacing Clutch Parts
45
Installing Clutch Assembly
45
6 Chain Brake System
46
Replacing Brake Lever and Torsion Spring
46
Inspecting Chain Brake Parts
48
7 Saw Chain Lubrication System
50
Inspecting Oil Cap and Strainer
50
Inspecting Oil Tank Vent
51
Inspecting and Replacing Oil Line
52
Inspecting Worm Gear
53
Cleaning and Replacing Auto-Oiler Assembly
54
8 Engine
57
Testing Cylinder Compression
58
Cleaning Cooling Air Passages
59
Inspecting Muffl er and Exhaust Port
60
Testing Crankcase and Cylinder Sealings
61
Removing Engine Block
62
Inspecting Cylinder
63
Inspecting Piston and Piston Ring
64
Replacing Oil Seal
65
Inspecting Crankcase and Crankshaft
66
Replacing Oil Seal and Ball Bearing
67
Assembling Crankshaft and Crankcase
68
Installing Piston Ring and Cylinder
69
9 Handle and Control System
70
Replacing Throttle Control Parts
71
Replacing Front Handle and Spring
72
Replacing Rear Handle and Springs
73
10 Guide Bar Mounting System
76
Replacing Nut for Fi Xing Guide Bar
76
Replacing Chain Tensioner
77
Replacing Guide Bar Stud
77
11 Maintenance Guide
78
Troubleshooting Guide
78
Disassembly Chart
80
Service Intervals
81
Index
82
