IGNITION SYSTEM
CS-2510TES
250Ts, 250TCs
19
3-6 Replacing ignition switch (Continued)

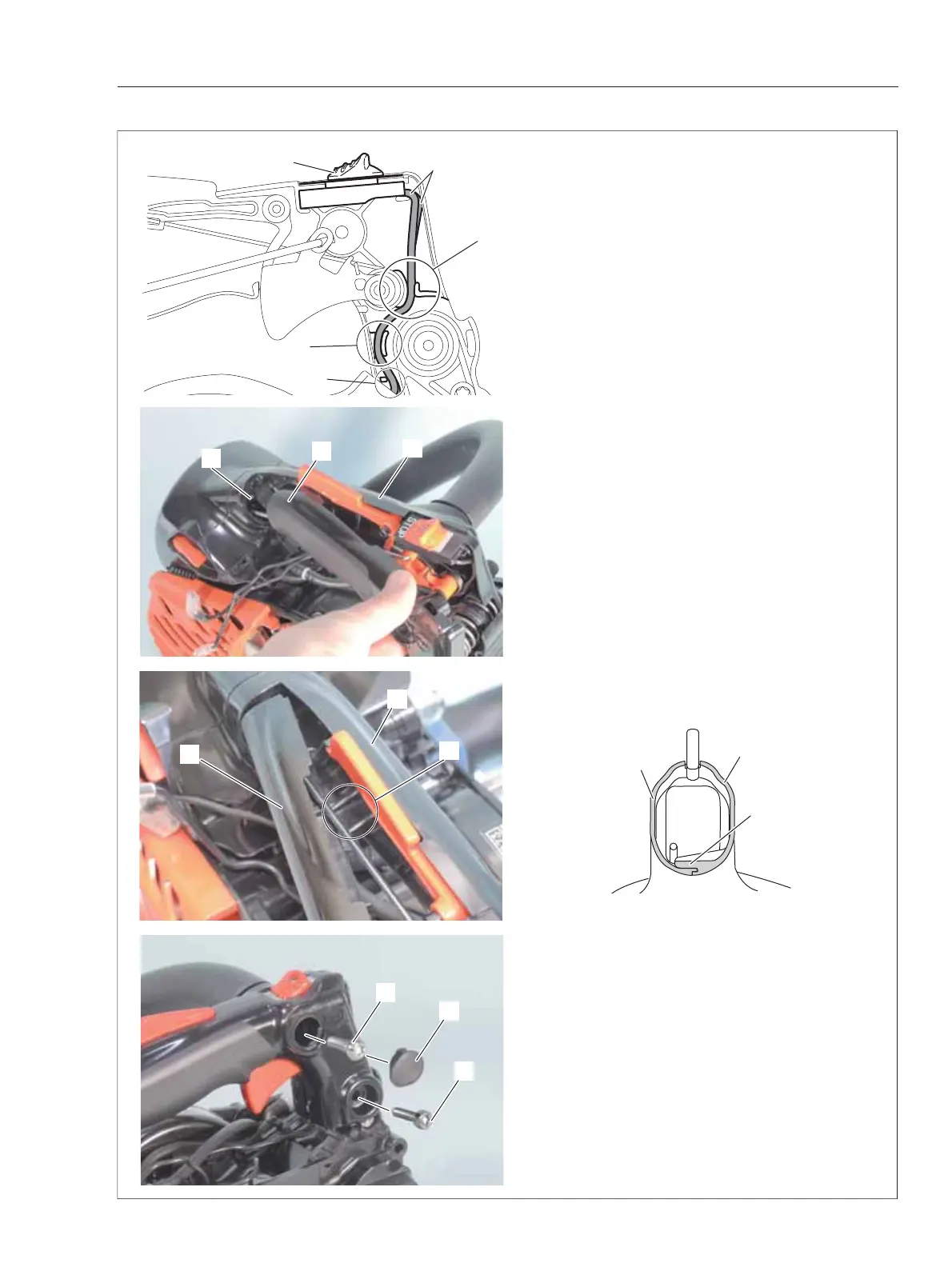

9. Remove ignition switch (S) .
{Installing}
10. Install new ignition switch (S), passing switch
lead (t1) and (t2) through notch on rib (U1), (U2)
and (U3) .
11. Insert rear part of rear handle lid (R) to hole (v1)
on rear handle assembly (V) as shown.
12. Assemble rear handle lid (R) as rib (v2) on rear
handle assembly (V) enters into rear handle lid (R).
13. Tighten M5 bolt (P) and M4 bolt (Q).
14. Install plug (N).
R
v1
V
v2
R
P
N
Q
V
v2
R
Section view
V
S
U1
t1, t2
U2
U3
