IGNITION SYSTEM
CS-2510TES
250Ts, 250TCs
20

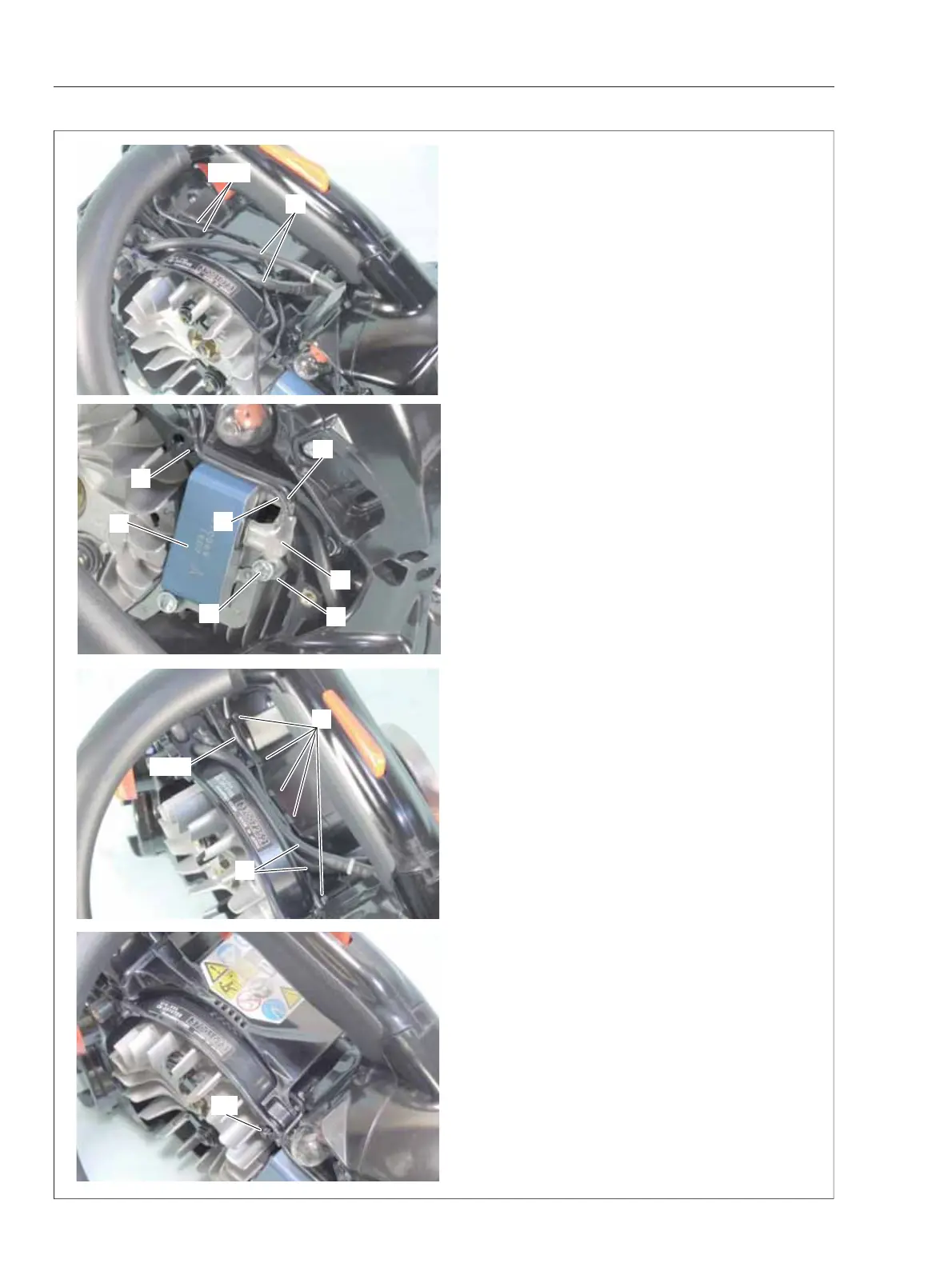

3-6 Replacing ignition switch (Continued)
15. Pass switch lead (t1) and (t2) under fuel lines
(W).
16. Install bolt (A) with ignition switch terminal (B)
and connect ignition switch (C) as shown (Refer to
“3-7 Replacing ignition coil”, “3-8 Setting pole shoe
air gaps”).
17. Pass switch lead (t1) (for terminal (B)) through
notch (X), then pass switch lead (t2) (for terminal
(C)) over the lead (t1)
18. Set switch lead (t1) and (t2) between engine
cover and ignition coil (D) as shown.
19. Pass switch lead (t1) through four guides (Y),
then pass switch lead (t2) over the lead (t1)
20. Place fuel lines (W) as shown.
21. Insert projection (e1) on dust cover to hole on
engine cover.
X
t1
C
D
B
W
t2
e1
Y
W
t1, t2
t1, t2
A
To Next Page
