Ecotechnics ECK FLAG - EDIT REFRIGERANT;OIL CHARGE DATA

INSTRUCTIONS MANUAL
-33-

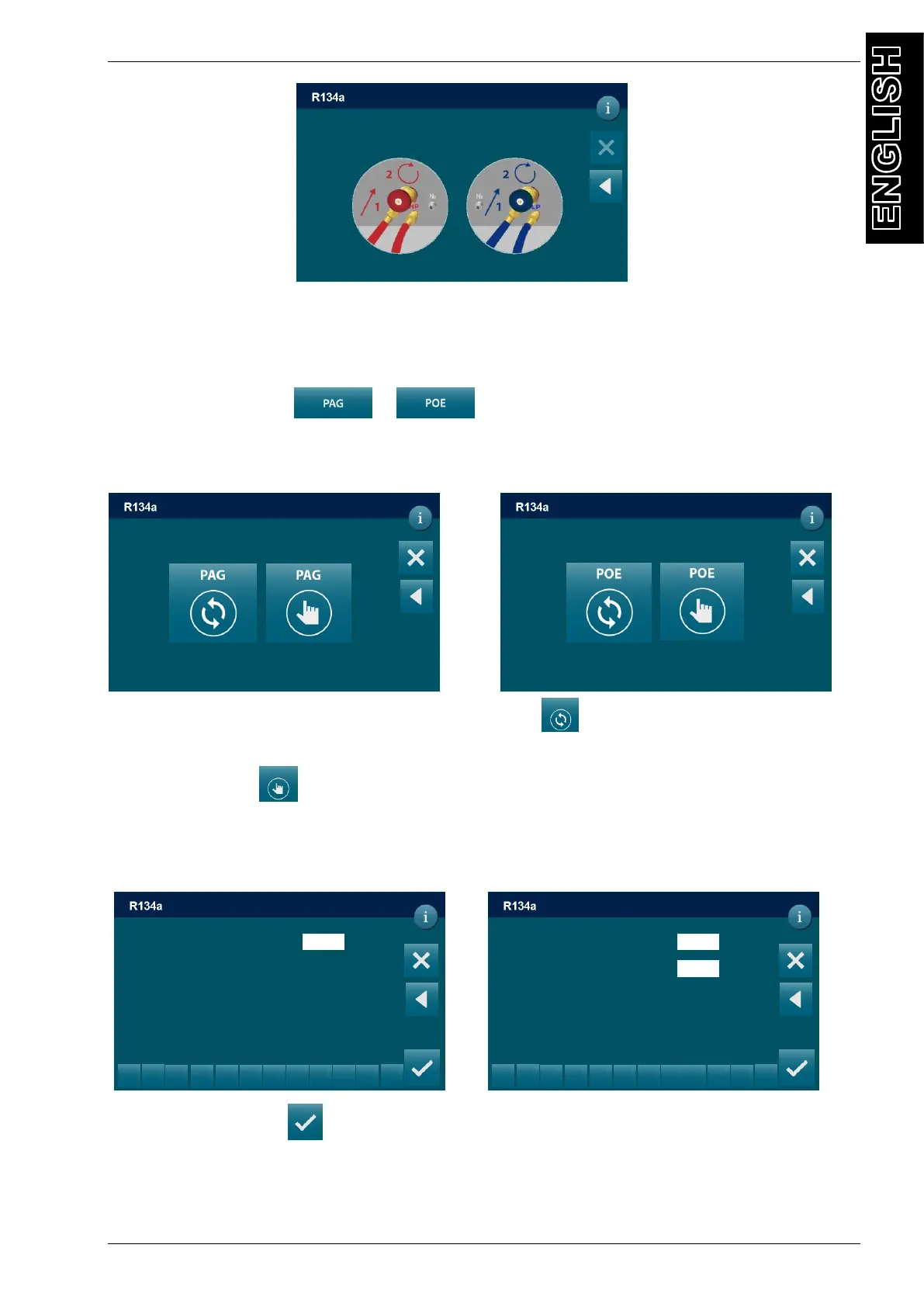

If HYBRID VEHICLE is selected the machine will perform FLUSHING HOSES
In the OIL-UV INJECTION sequence press the oil type required PAG or POE
By selecting oil symbol or the following screen will be displayed:
PAG OIL injection setting POE OIL injection setting
Select PAG/POE oil symbol AUTOMATIC injection for insert the gas quantities and
reintegrate the same quantity of oil extracted during recovery. Select PAG/POE oil symbol
MANUAL injection for insert the gas quantities manually.
Edit REFRIGERANT/OIL CHARGE data:
Automatic oil injection Manual oil injection
Press ENTER symbol
NOTE: For most systems the quantity of fluid to be refilled is indicated on a plate that is in the
vehicle’s engine compartment. If this quantity is not known, look for it in the relevant manuals.
Use the keys 0 to 9 to type the quantity (in grams) of refrigerant to be charged into the A/C
system.
