Ecotechnics ECK FLAG - CHARGE OPERATION

INSTRUCTIONS MANUAL
-48-
CHARGE

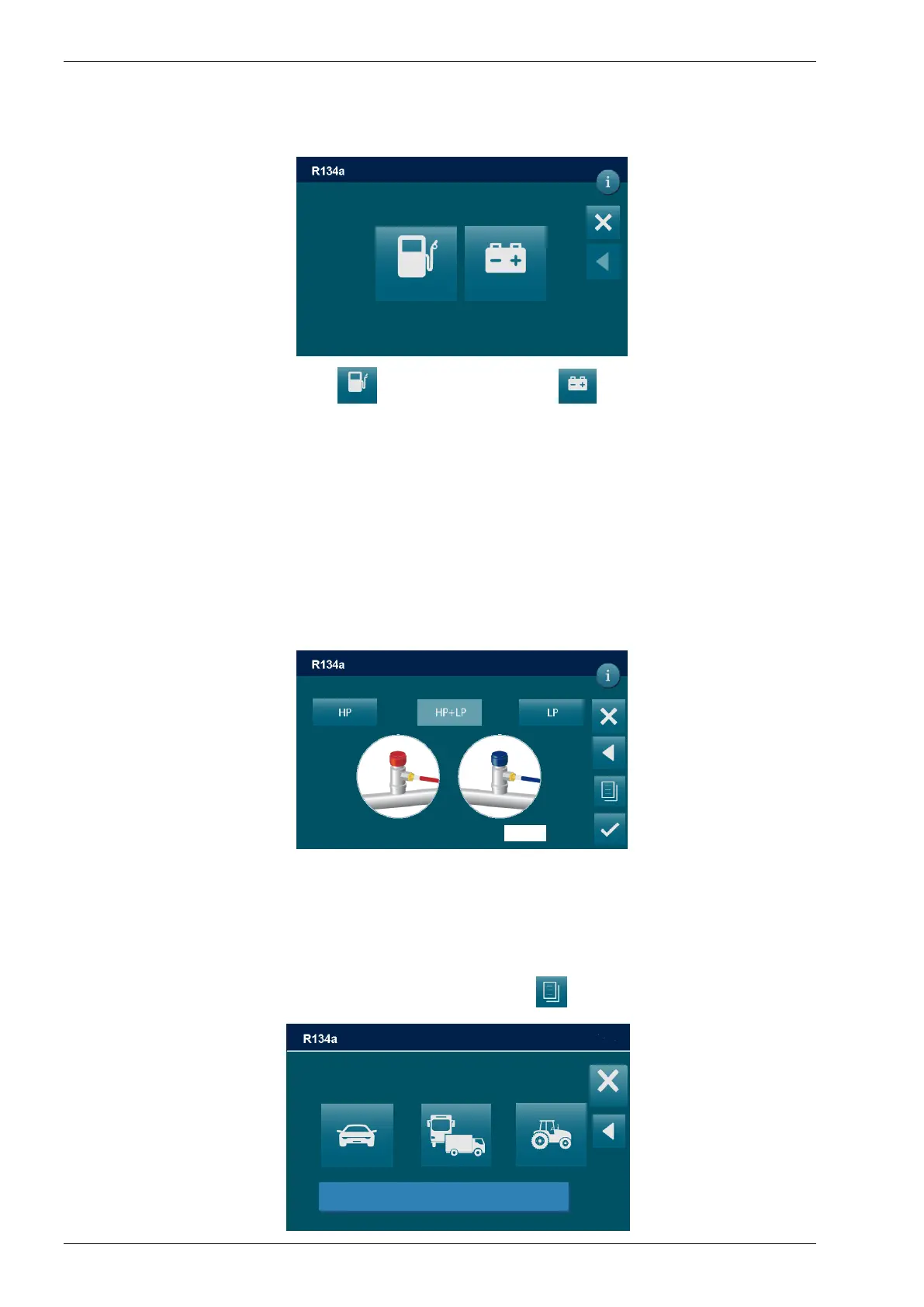

From the MANUAL PROCEDURE, select CHARGE, the following screen will be displayed:
Select the STANDARD VEHICLE or HYBRID VEHICLE the following screen will be
displayed:
EDIT GAS FILLING DATA
NOTE: For most systems the quantity of fluid to be refilled is indicated on a plate that is in the
vehicle’s engine compartment. If this quantity is not known, look for it in the relevant manuals.
NOTE: If DATABASE is installed, can be used to insert the value of refrigerant into the GAS
FILLING field.
EDIT GAS FILLING MODE
Select the connection mode:
- HP+LP fill the refrigerant from both HP and LP service ports
- HP to fill the refrigerant only from the HP service port,
- LP to fill the refrigerant only from the LP service port,
Use the touchscreen keys 0 to 9 to type the quantity (in grams) of refrigerant to be charged into
the A/C system or if installed, press DATABASE button , the following screen will be
displayed:
DD/MM/YY XX:XX PM
MANUAL / CHARGE
STANDARD VEHICLE HYBRID VEHICLE
DD/MM/YY XX:XX PM
MANUAL / CHARGE
CHARGE AMOUNT
g
0
DATABASE
ESC
DD/MM/YY XX:XX PM
CUSTOM
