Unscrew and disconnect HP and LP coupling from A/C system end press to complete the
RECOVERY / RECYCLE PROCEDURE.
Press the symbol for printing.
Type the plate of the car,VIN, Km, Operator and press to confirm. BACK to return back.
VACUUM
Use the quick-connect couplings to connect the hoses to the A/C system, bearing in mind that
BLUE must be connected to the low pressure side and RED to high pressure. If the system is
equipped with a single quick-connect coupling for high or low pressure, connect only the
relative hose.

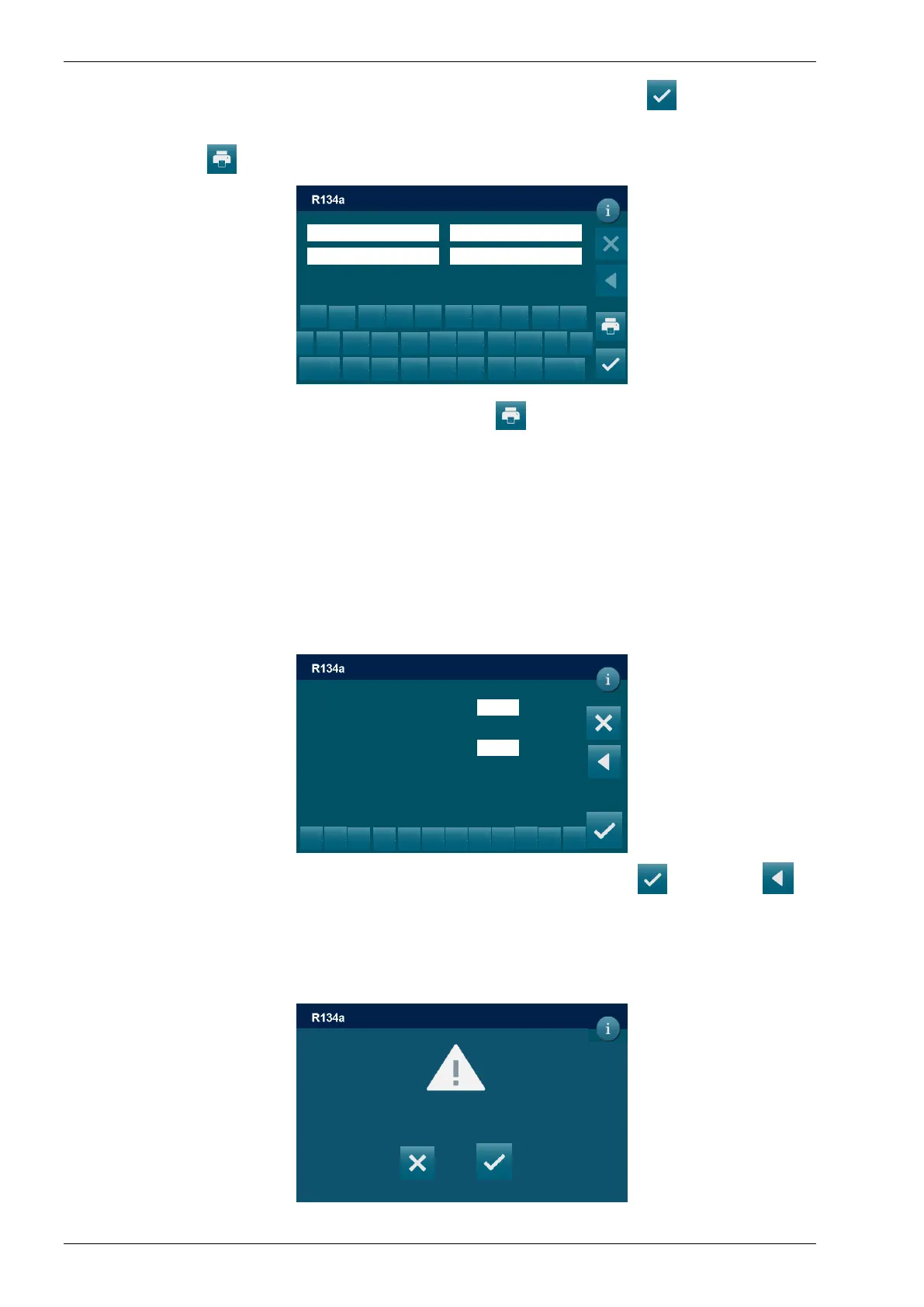

From the MANUAL PROCEDURE, select VACUUM, the following screen will be displayed:
use the KEYPAD to insert the new value of the VACUUM TIME, press to confirm, to
return back.
NOTE: use the VACUUM SETTING to change the duration of the LEACK CHECK.
NOTE: if selected VACUUM TIME is lower 15 minutes the following popup warning will be
displayed:
