Connect and open the coupling (HP, LP, or HP/LP, depend of the previous choice) connected
to the A/C system, then press , press to return back.
The machine will start the filling with the preset quantity of refrigerant.

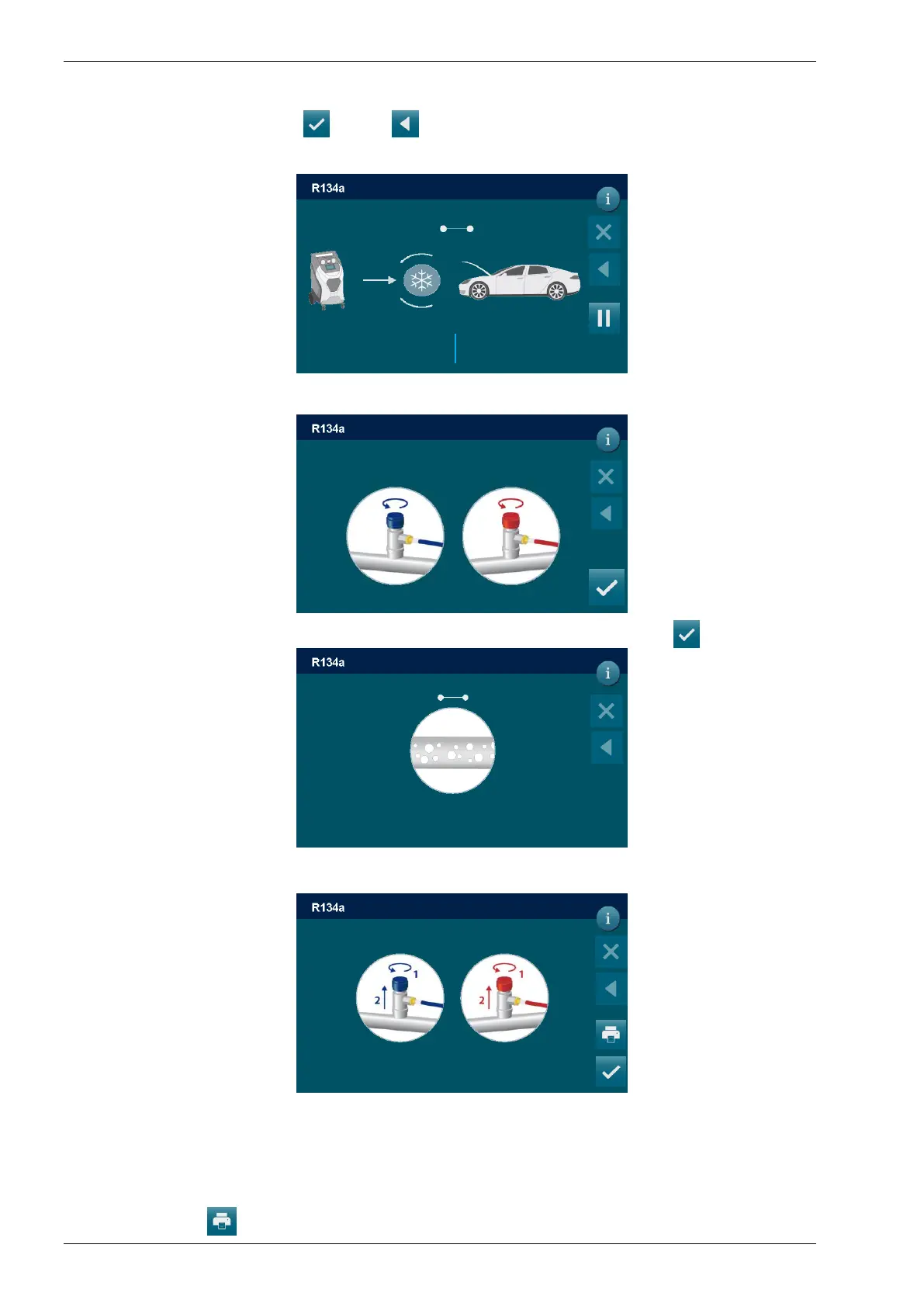

Then the following screen will be displayed:
Unscrew HP and LP coupling without disconnect from A/C system end press to continue:
The machine will recover the residual refrigerant into the service hoses, then the following
screen will be displayed:
Disconnect coupling from A/C system.
Procedure is now successfully completed.
NOTE: Rarely, charging may not run to completion due to pressure balance. In this case, close
the high pressure tap (leaving the low-pressure side open), and switch on the A/C system.
Press the symbol for printing.
Charge
DD/MM/YY XX:XX PM
MANUAL / CHARGE
Refrigerant charged
200 / (100%)
Tank pressure
7 bar
0 ml / 0 ml
A/C pressure
4.85 bar
Tank temperature
22 °C
Close HP and LP couplings without disconnected
from A/C system and press to continue
DD/MM/YY XX:XX PM
MANUAL / OIL-UV INJECTION
Empty hoses
DD/MM/YY XX:XX PM
MANUAL / CHARGE
Hoses pressure
4.01 bar
END OF PROCEDURE
Disconnected HP and LP coupling from A/C system
DD/MM/YY XX:XX PM
MANUAL / CHARGE
Refrigerant charged
200 g
