EDAN C6A - Definitions and Symbols

C3A, C6A, C6A HD Video Colposcope User Manual Safety Guide
- 4 -
Patient environment means any volume in which intentional or unintentional contact can occur
between the patient and parts of the system or between patient and other persons touching parts of
the system (reference IEC 60601-1). It is difficult to apply unique dimensions to the volume, and
the dimensions given in the figure below have been justified.
Examination
table
1.5 m
Overhead view
Floor
1.5 m 1.5 m
2.5 m
Examination table
Side view

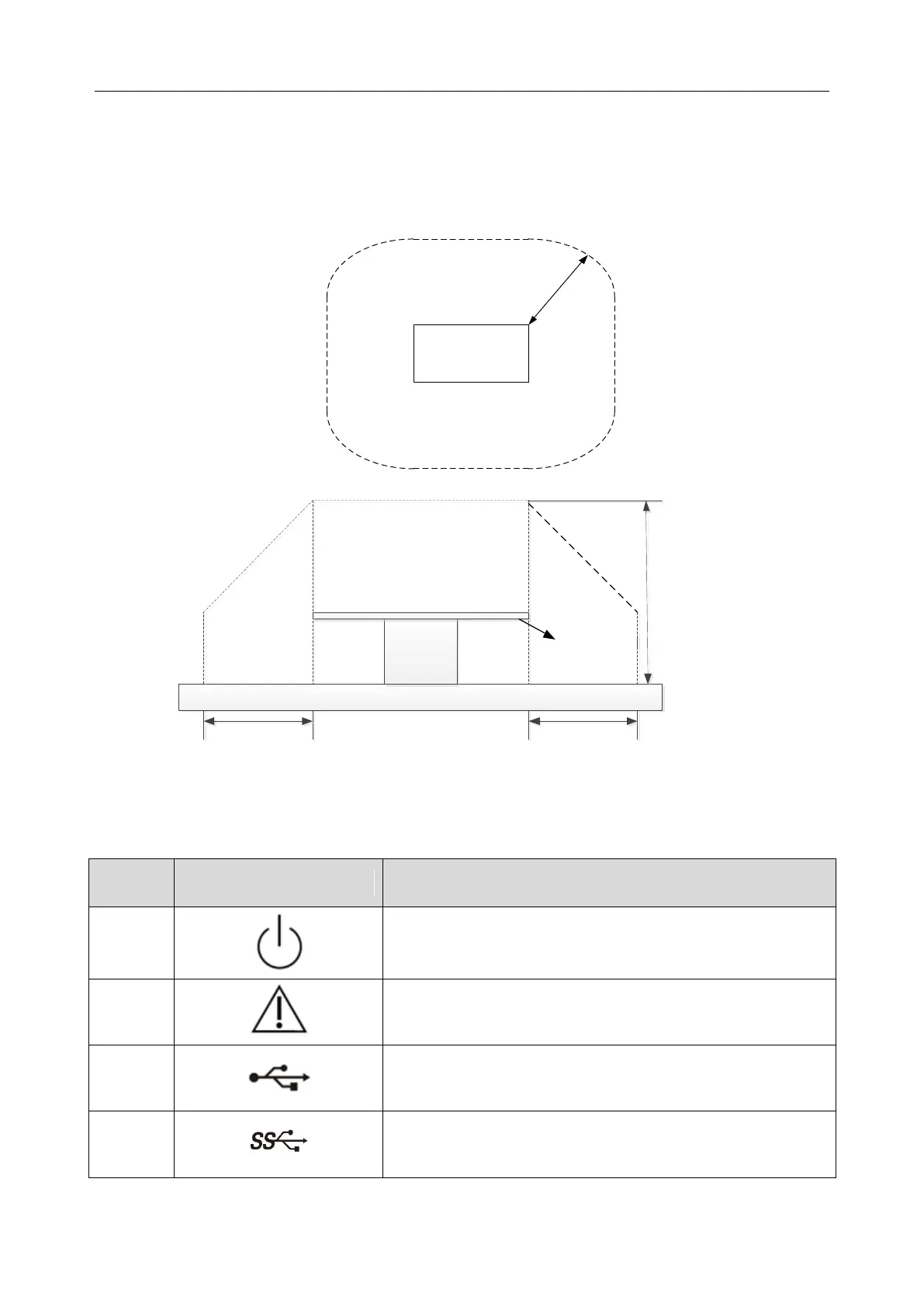

Figure 1-1Patient environment
1.3 Definitions and Symbols
No.
Symbol
Description
1
Stand-by
2
Caution
3
USB connection
4
USB 3.0 connection
