3.3 Port

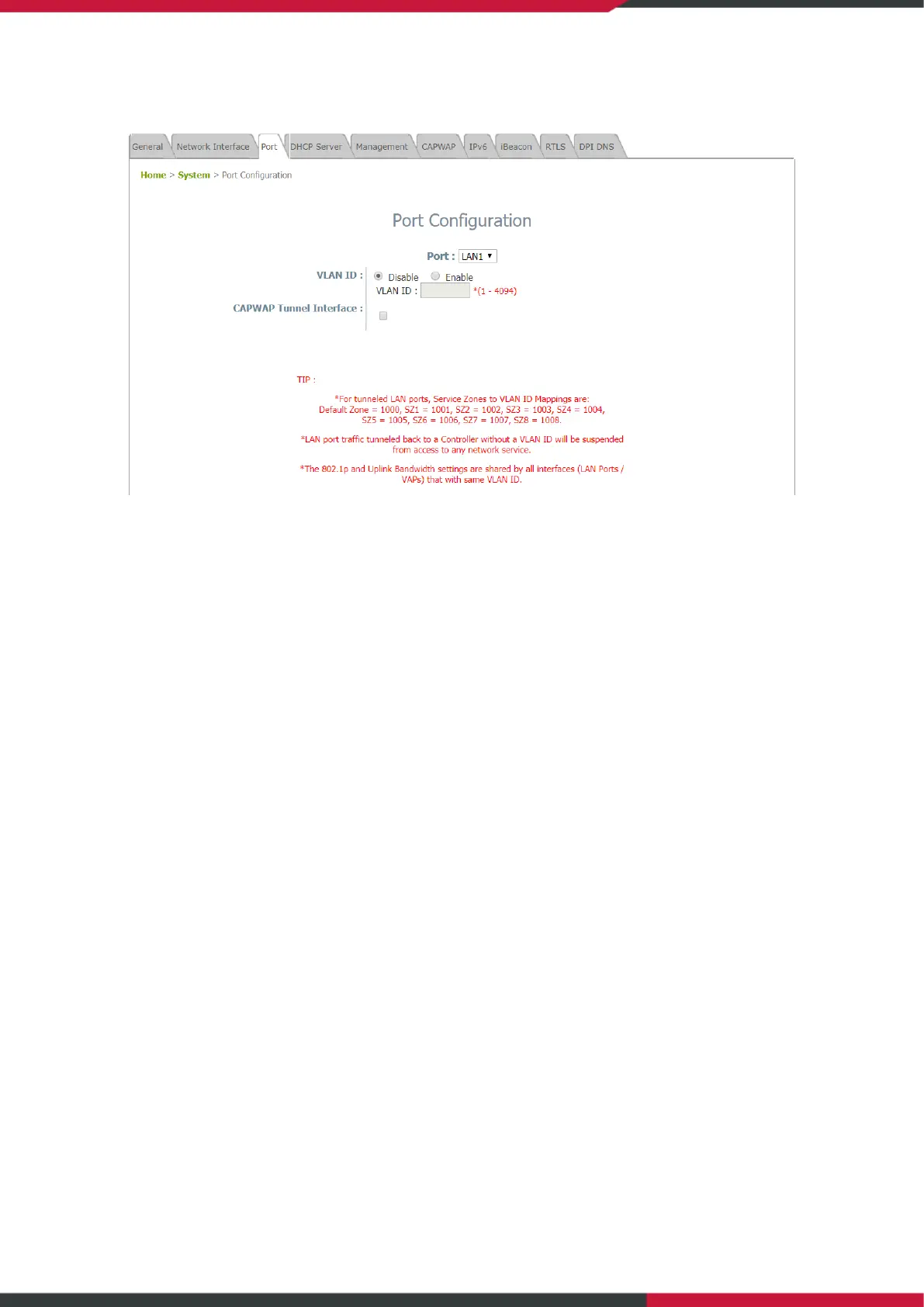

Port: Select one Port for further configuration.
VLAN ID: Enable selected implies that network traffic sent upstream from this LAN port will be tagged
with the VLAN ID configured in the field below. Disable selected implies that traffic from this LAN port
will not be tagged with a VLAN ID.
CAPWAP Tunnel Interface: Select a LAN, VAP or WDS interface to designate its traffic to pass through
the CAPWAP Tunnel established between the AP and the controller. For network interfaces that are
unchecked, their traffic will be forwarded locally into the internet if this AP is deployed remotely on the
WAN side of a controller.
The ‘TIP’ in red at the bottom of the page explains that each service zone, from default to Service Zone
8, has its fixed, pre-determined VLAN ID number when utilizing CAPWAP. Admin needs to enter one of
the numbers in order to direct traffic back to a certain Service Zone.
