User Manual
Enterprise Access Point
33

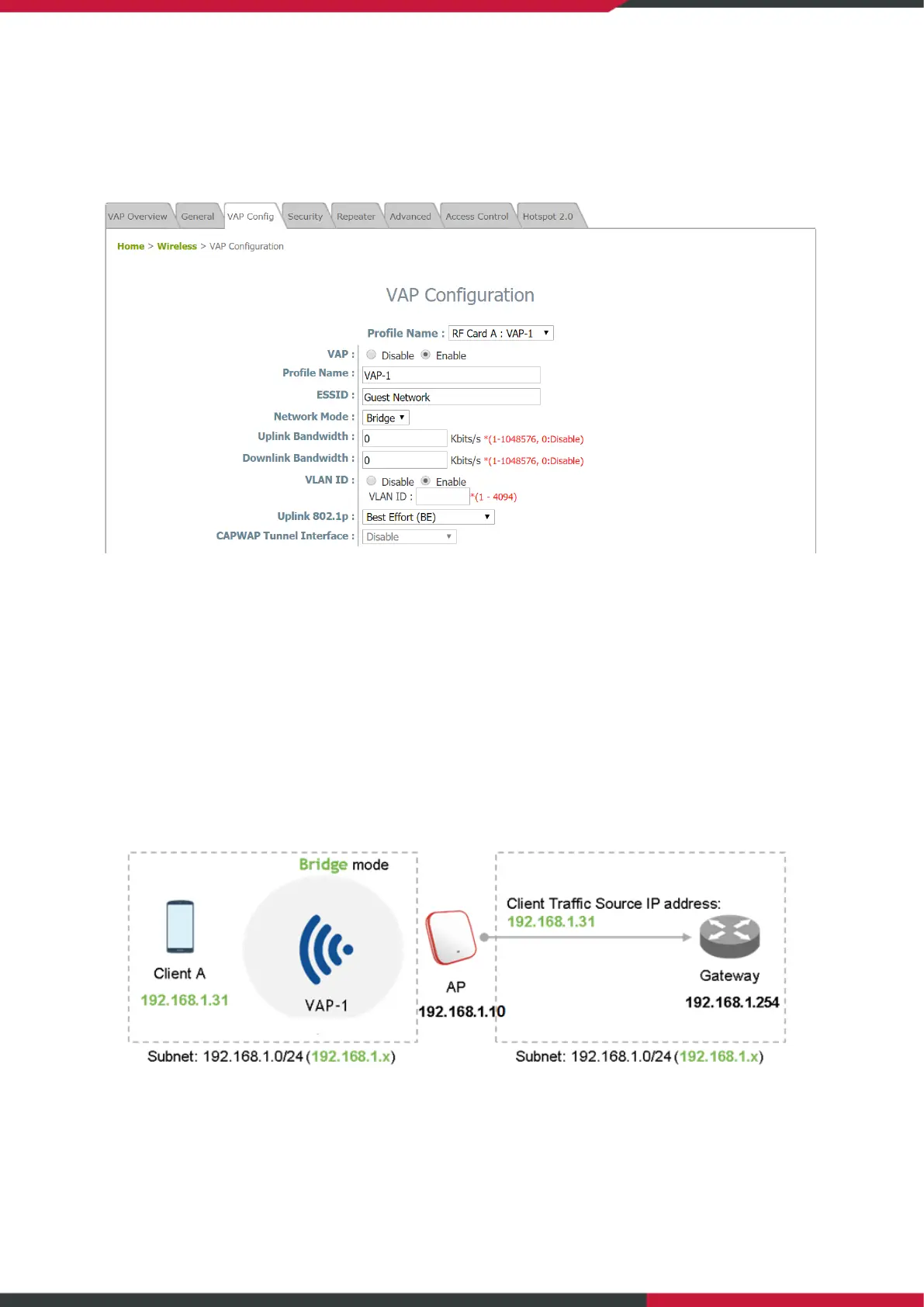

4.3 VAP Config
This section provides configuration of each Virtual Access Point with settings such as Profile Name,
ESSID, and VLAN ID. To enable specific VAP, select the VAP from the drop-down list of Profile Name.
VAP: Disable or Enable this VAP.
Profile Name: Name of the VAP profile for identity / management purposes.
ESSID: Extended Service Set Identifier (ESSID) serves as an identifier for clients to associate with the
specific VAP.
Network Mode – Bridge mode: the VAP operates transparently (i.e. no NAT, no DHCP) such that client
devices will be assigned a dynamic IP address from a DHCP server on the LAN side. The source IP address
of client traffic seen by the uplink gateway/switch will remain the original IP address of the client (in this
case, 192.168.1.31, as shown in the diagram below).
