User Manual
Enterprise Access Point
27
4. Wireless
This section includes the following functions: VAP Overview, General, VAP Configuration, Security,
Repeater, Advanced, Access Control and Hotspot 2.0. The Edgecore Access Point supports up to sixteen
Virtual Access Points (VAPs) per RF card. Each VAP can have its own settings (e.g. ESSID, VLAN ID,
security settings, etc.). With such VAP capabilities, different levels of service can be configured to meet
network requirements.

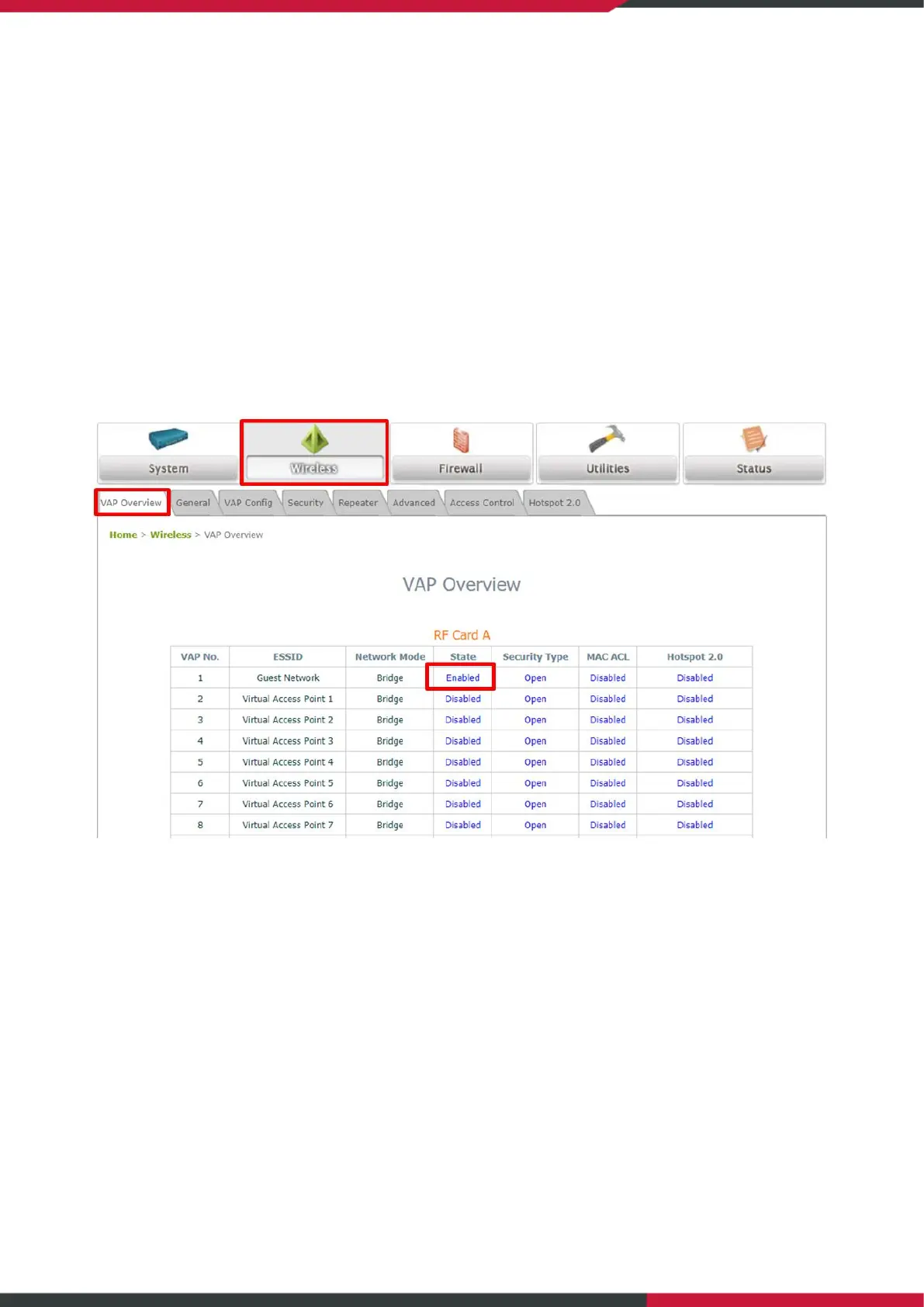

4.1 VAP Overview
An overall status is collected on this page, including ESSID, Network Mode, State, Security Type, MAC
ACL, and Hotspot 2.0, where the AP features 16 VAPs per radio with respective settings. In this table,
please click on the hyperlinks to further configure each individual VAP.
