Edgetech 4125 Series User Manual

C-7

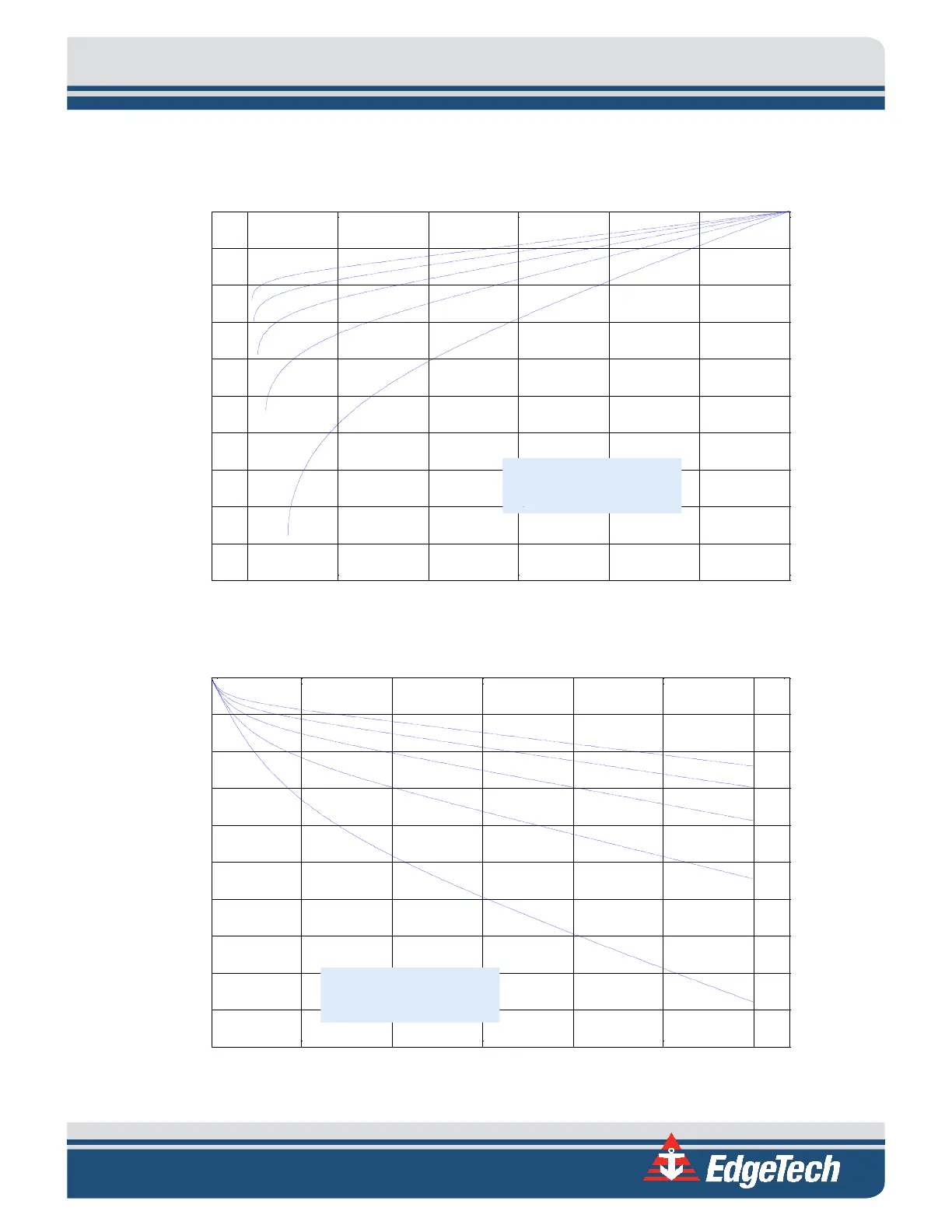

C.1.2 Config. 4: 4125, 23080 Cable - 300m Long
-300 -250 -200 -150 -100 -50 0
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
Tow Cable Shape & Tow Fish Position
Position Aft of Tow Vessel (m)
Depth (m)
Kevlar Tow Cable - p/n 23080,
Length - 300m
Tow Fish - 4125 Telemetry
6 kts
5 kts
4 kts
3 kts
2 kts
0 50 100 150 200 250 300
-100
-90
-80
-70
-60
-50
-40
-30
-20
-10
0
Tow Cable Length vs Depth
Cable Length (m)
Depth (m)
2 kts
Kevlar Tow Cable - p/n 23080,
Length - 300m
Tow Fish - 4125 Telemetry
6 kts
5 kts
4 kts
3 kts
