Edgetech 4125 Series User Manual

3-13

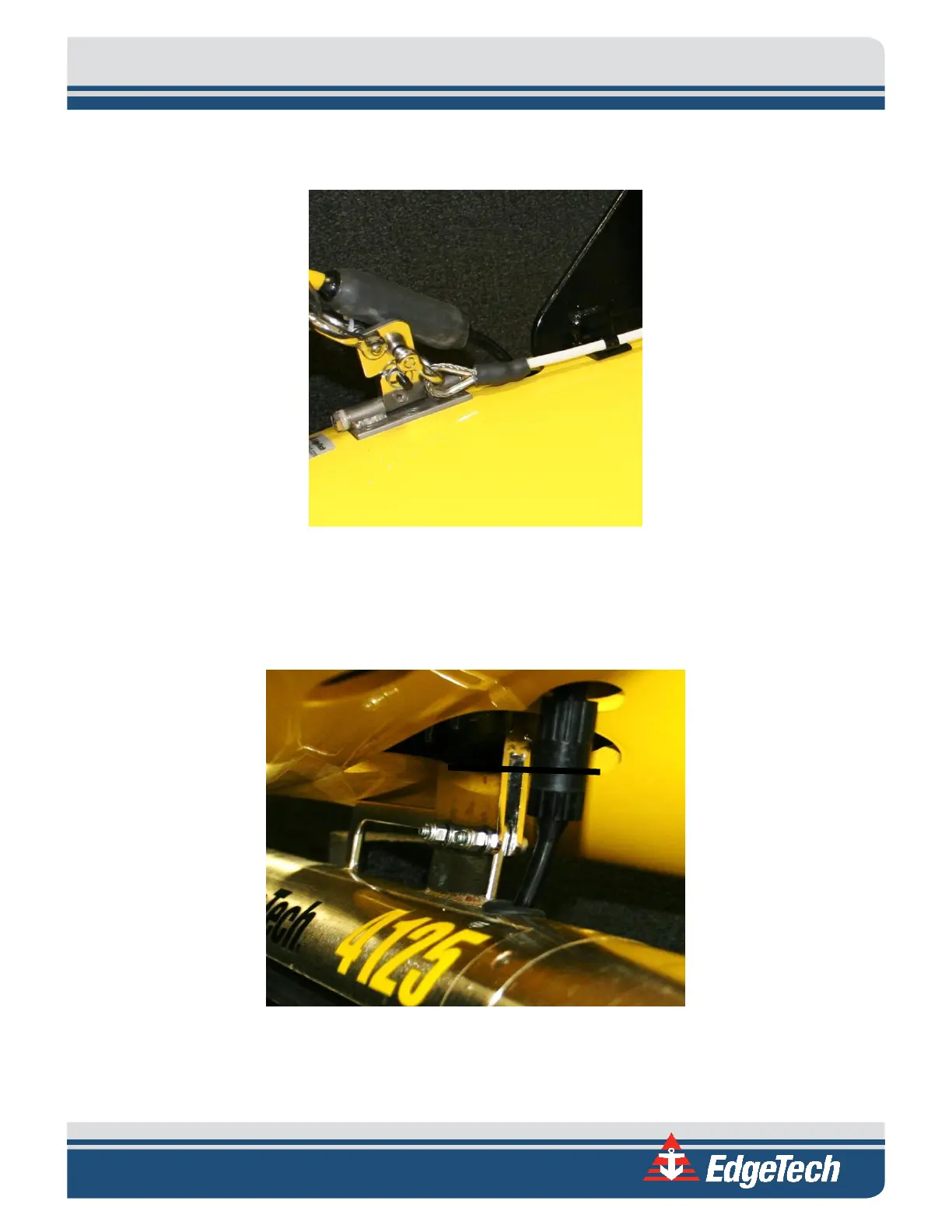

7. Pass the tow cable through the hole on the top of the depressor wing from the top as shown.
Figure 3-10: Tow cable shown Routed through Depressor Wing Top Hole.
8. Connect the tow cable connector to the tow fish connector and secure the connector locking
sleeve. Secure pigtail connectors to center post with a Tie-wrap.
Figure 3-11: Tow cable and Tow Fish Pigtail Connectors.
