Edgetech 4125 Series User Manual

C-41
C.1.36 Config. 80: 4125 + 15 lb. Keel Weight + Dep. Wing, A302799 Cable - 600m
-600 -500 -400 -300 -200 -100 0
-350
-300
-250
-200
-150
-100
-50
0

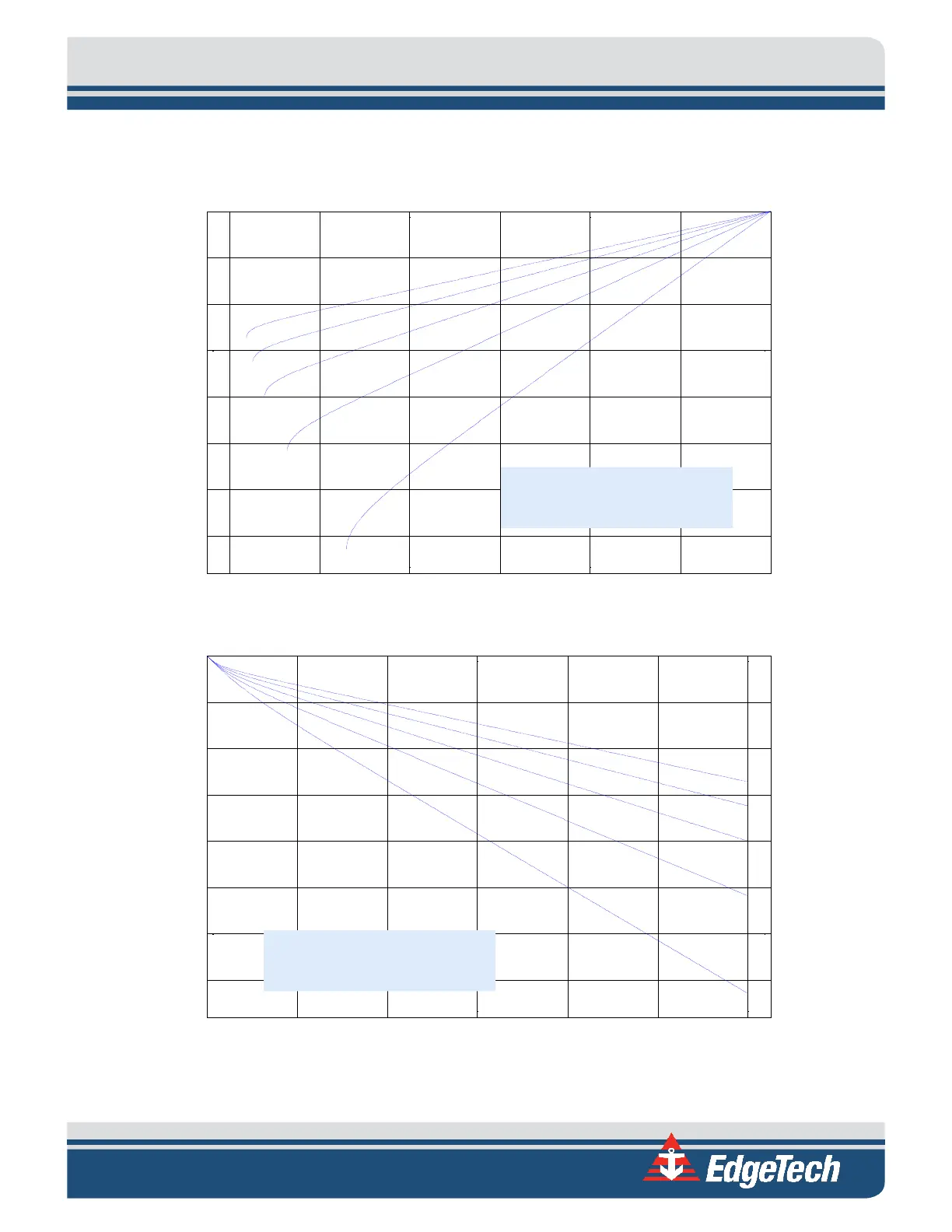

Tow Cable Shape & Tow Fish Position
Position Aft of Tow Vessel (m)
Depth (m)
Tow Cable - p/n A302799,
Length - 600m
Tow Fish - 4125 Telemetry + Depressor
+ 15 lbf Wt.
2 kts
3 kts
4 kts
5 kts
6 kts
0 100 200 300 400 500 600
-350
-300
-250
-200
-150
-100
-50
0
Tow Cable Length vs Depth
Cable Length (m)
Depth (m)
Tow Cable - p/n A302799,
Length - 600m
Tow Fish - 4125 Telemetry + Depressor
+ 15 lbf Wt.
2 kts
3 kts
4 kts
5 kts
6 kts
