Edgetech 4125 Series User Manual

C-29

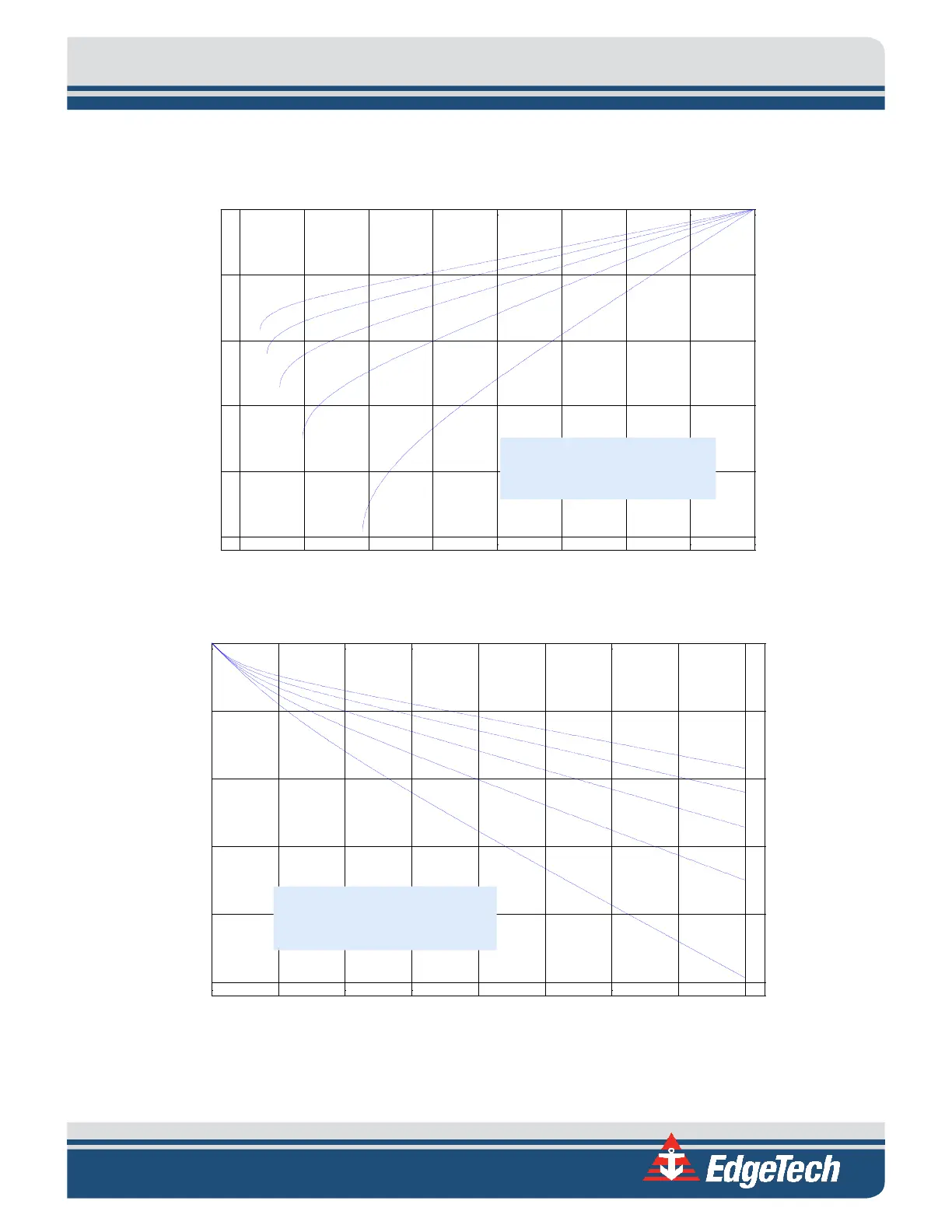

C.1.24 Config. 52: 4125 + 15 lb. Keel Wt. + Dep. Wing, A320327 Cable - 400m
-400 -350 -300 -250 -200 -150 -100 -50 0
-250
-200
-150
-100
-50
0
Tow Cable Shape & Tow Fish Position
Position Aft of Tow Vessel (m)
Depth (m)
Tow Cable - p/n A320327,
Length - 400m
Tow Fish - 4125 Telemetry + Depressor
+ 15lbf Wt.
2 kts
3 kts
4 kts
5 kts
6 kts
0 50 100 150 200 250 300 350 400
-250
-200
-150
-100
-50
0
Tow Cable Length vs Depth
Cable Length (m)
Depth (m)
2 kts
3 kts
4 kts
5 kts
6 kts
Tow Cable - p/n A320327,
Length - 400m
Tow Fish - 4125 Telemetry + Depressor
+ 15lbf Wt.
