Edwards ModuLaser User Manual

Chapter 1: Introduction
ModuLaser Modular Aspirating Smoke Detector Installation Manual 5
Module overview
The product range includes three display modules and a detector module.
Note: Display modules and detector modules also incorporate a backplane (for
inputs, outputs, and field wiring, etc.). See Chapter 2 “Installation” on page 11 for
more information on the backplane.

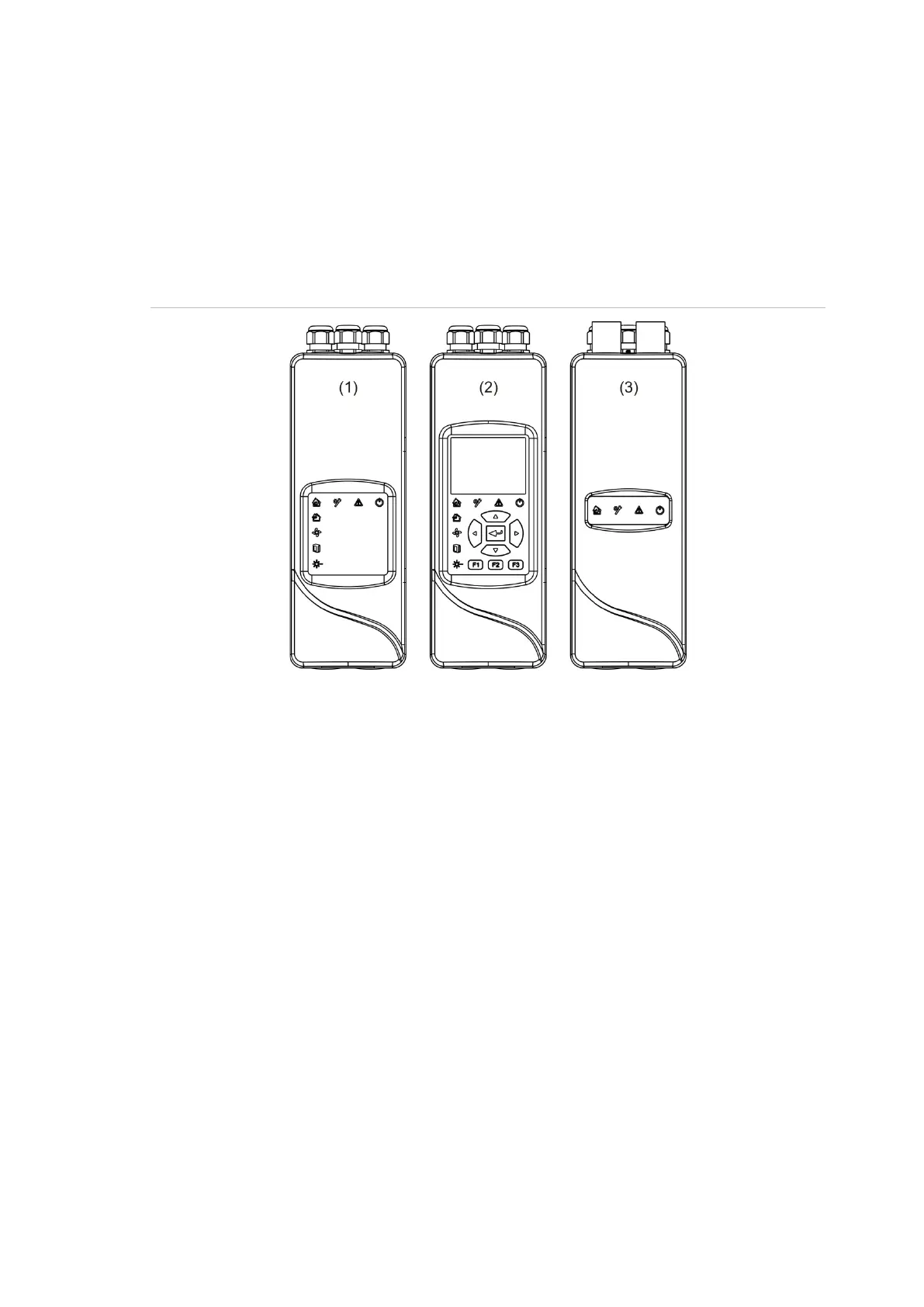

Figure 2: Module overview
1. Minimum display module
2. Standard or command display module
3. Detector module
Display modules
The following display modules are available.
Minimum display module
The minimum display module provides LED status indicators only – it has no TFT
display or user controls. LED status indicators display the status of detector
modules in the same cluster.
The module provides connections to integrate the cluster into a SenseNET
network. A PC connection is provided for configuring and monitoring the module
and associated detector modules.
