Chapter 2: Installation

16 ModuLaser Modular Aspirating Smoke Detector Installation Manual

Detector module

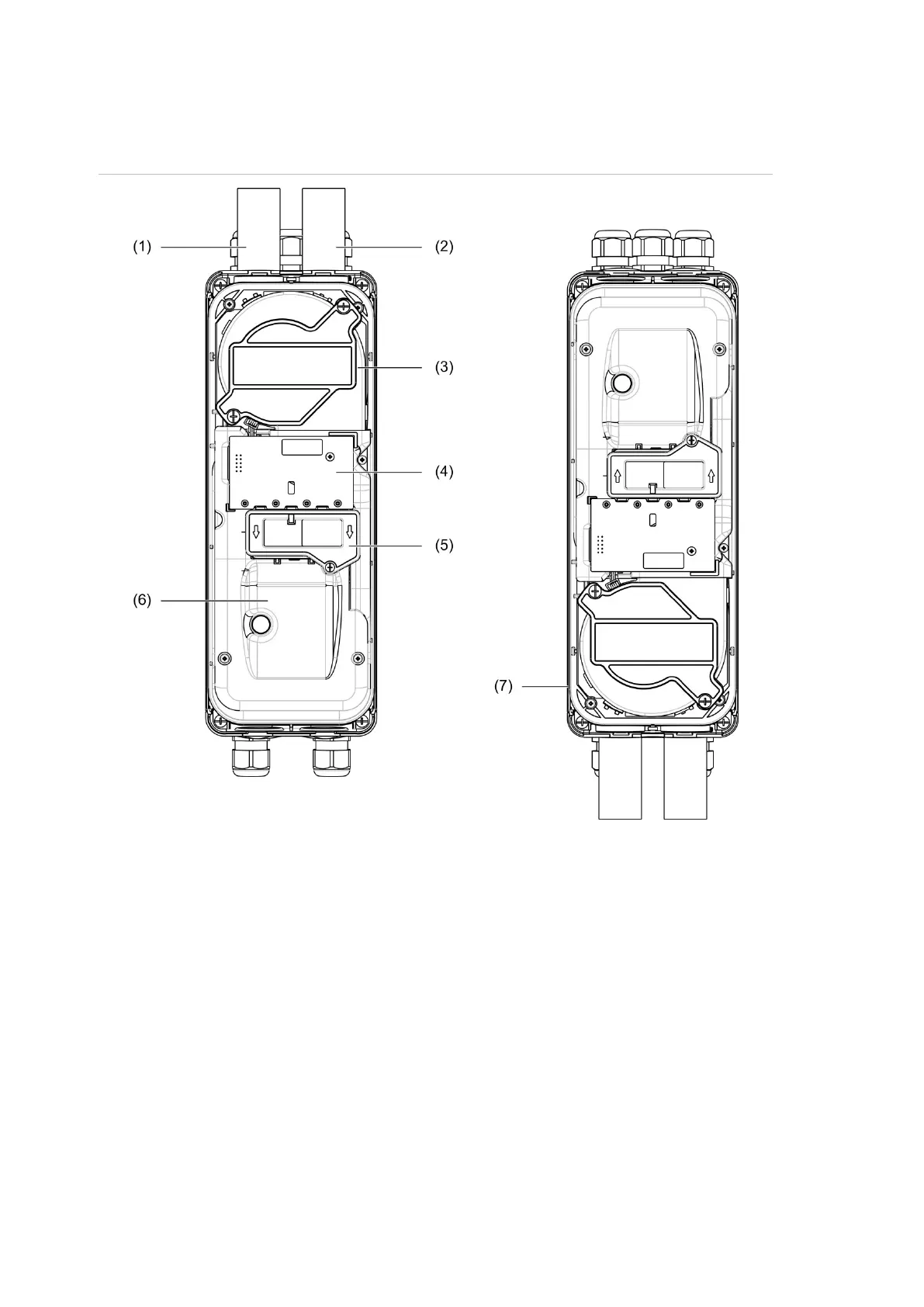

Figure 8: Detector module layout

. Exhaust pipe (outlet)

. Sampling pipe (inlet)

. Fan

4. User interface PCBA

5. Filter cover

6. Laser cover

7. Detector module installed at 180 degrees

Note: The detector module may also be installed onto the backplane at

180 degrees to enable pipe entry from below (as shown on the right in Figure 8

above). There is no change to the installation orientation of the backplane.
