Functional description
Page 12 of 45 MSM-BSM2G-BA-UK-001

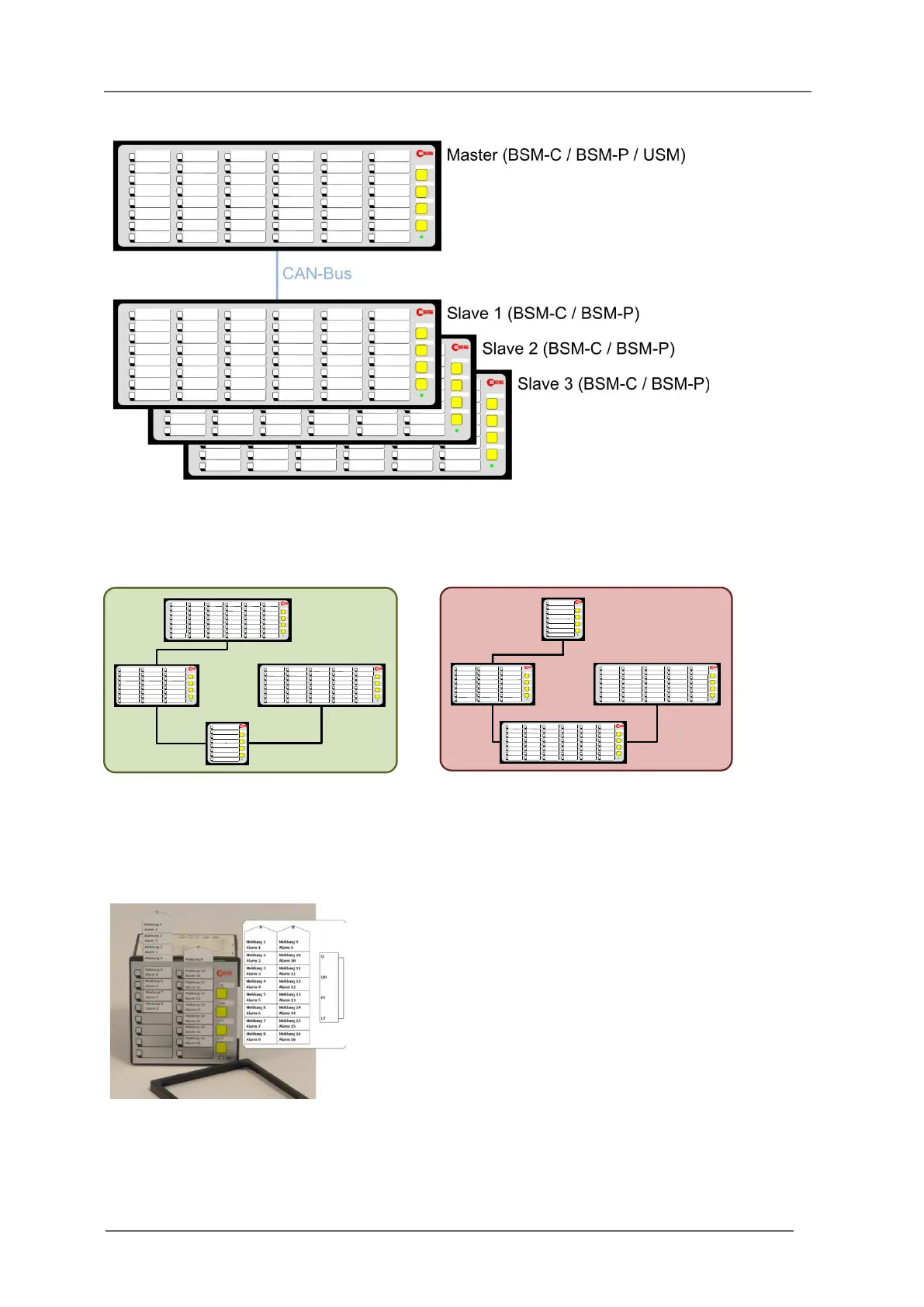

Fig. 3.1: General design of a cascaded fault annunciator system
Fig. 3.2: Examples of cascaded annunciator systems
3.5 Labelling
Fig. 3.3: Insertion of labelling strips after removing
the front frame
Labelling of the annunciators is done by means of
designation strips that can be inserted beneath
the cover foil after removing the front frame.
The designation strips with signal names can be
created and printed directly from the
parameterisation software for the BSM-P. For
manual generation of labelling strips for BSM-C
or BSM-P patterns in Word-format are available.
