EES BSM - 6.2.4.4 Submenu Relay (function relays)

To Next Page

To Previous Page

Parameterisation

Page 38 of 45 MSM-BSM2G-BA-UK-001

Function

Note

Lamp acknowledgement 1, 2,

Optical acknowledgement: Acknowledgement of the alarms in the

collective report groups 1, 2 or 3

Reset 1, 2, 3

Reset of the alarms in the collective report groups 1, 2 or 3

Horn

Acknowledgement audible alarm

Lamp test

Function test

Simulation of alarms at all inputs

Function mute

Horn triggering acc. to the settings in „Horn mute“

Table 6.4: Assignment of buttons and function inputs

6.2.4.4 Submenu Relay (function relays)

On this page the assignment of the 4 function relays to different annunciation functions, buttons or

function inputs can be defined.

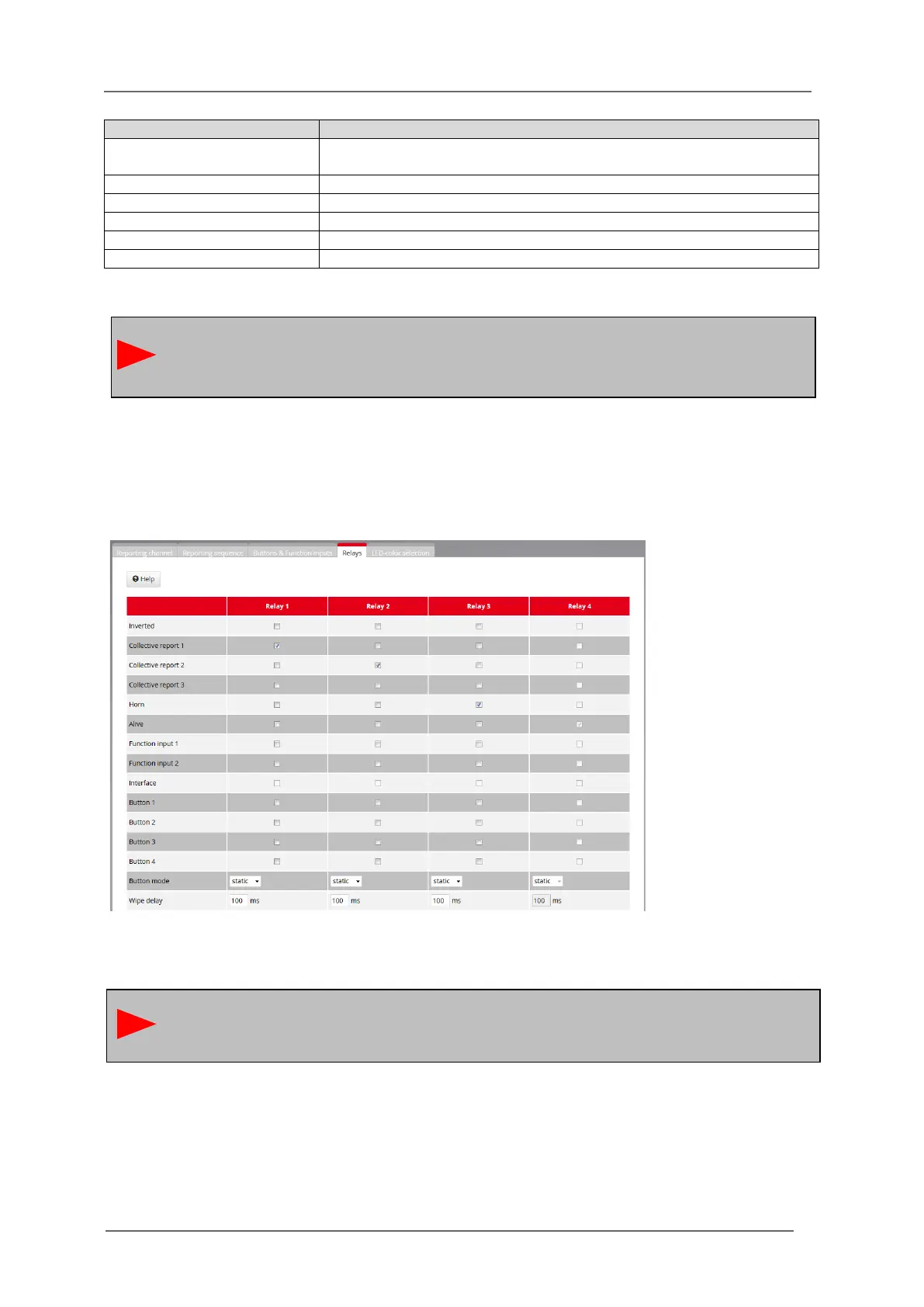

Fig. 6.17: Page Relay

The assignment is done in a matrix – the lines are representing the functions and the

columns are representing the buttons and function inputs. Implemented assignments are

displayed by a tick in the respective checkbox.

The assignment is done in a matrix – the lines are representing the triggering events (e.g.

pushing a button) and the columns are representing the relays. Implemented assignments

are displayed by a tick in the respective checkbox.
