Function
Note
Inverted
When activated the switching function is negated
Collective report 1, 2, 3
Activated by collective report 1,2 or 3
Horn
Relay contact for connection and triggering of an external horn
Alive
Alive-contact of the internal self-monitoring (fixed assigned to relay 4)
Function input 1, 2
Relay follows function input
Interface
Triggering from IEC interface (pulse commands with below defined wipe
duration possible)
Button 1 … 4
Relay follows button
Button mode
Function of the relay when triggered from button or IEC interface
Static – relay is activated as long as the button is pushed
Toggle – flip-flop function, relay converts with each excitation
Wipe – relay is activated with each excitation and drops after the defined
wipe duration (10…10000 ms)
Table 6.5: Function assignment of the relays
Multiple allocations, e.g. aggregation of collective reports, are possible. For each relay the switching
function can be negated – in this case the relay drops e.g. when a collective report is activated.
6.2.4.5 Submenu Repeat Relays

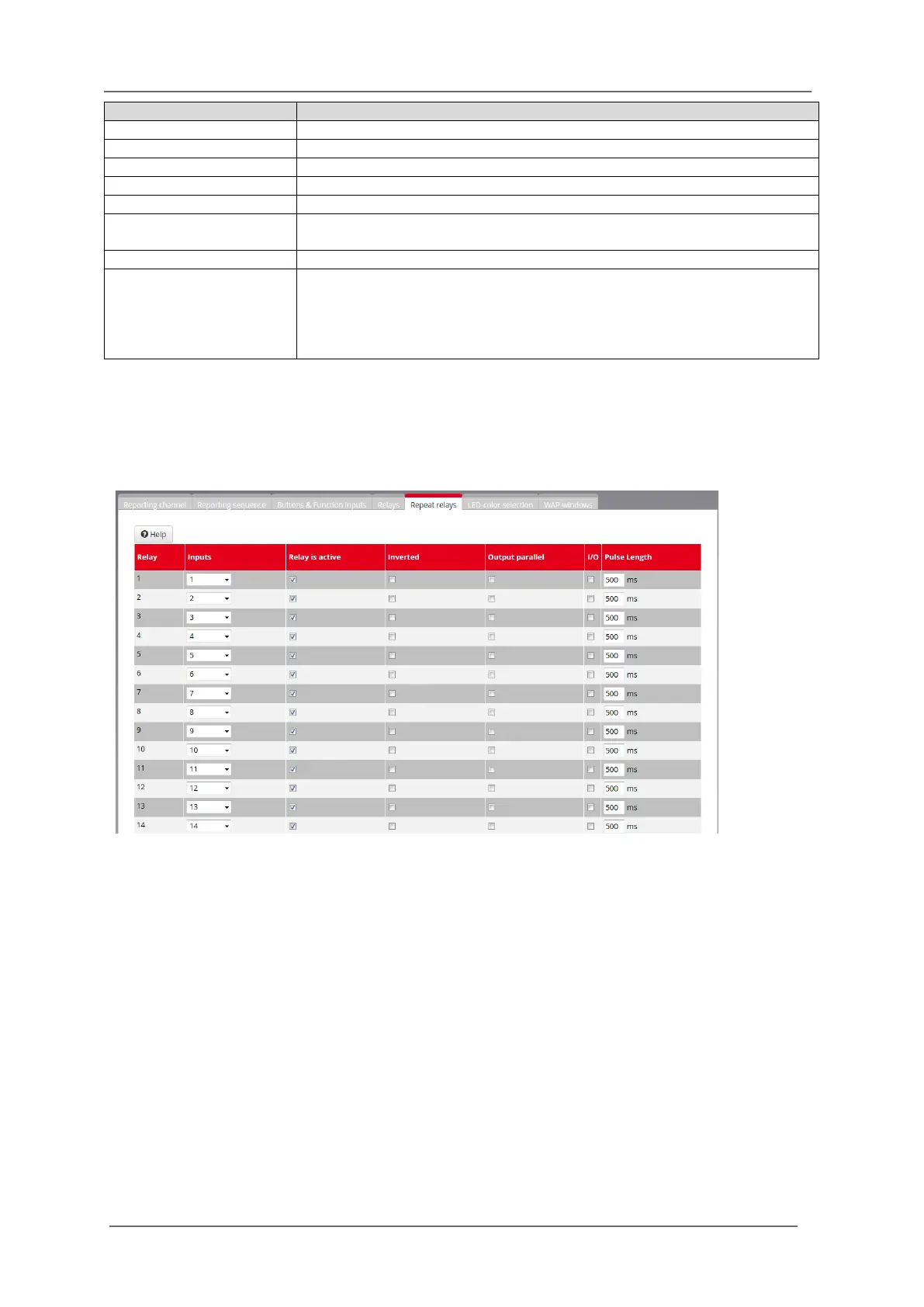

Fig. 6.18: Page repeat relays
The optionally integrated repeat relay cards (8 NO contacts each) are independent from the 4 function
relays described in the previous section.
Only the relays as available in the hardware to be parameterised will be displayed.
For each relay the following definitions can be made:
Inputs
Here the trigger for the relay can be defined. The following options are available:
 Function collective report 1,2 or 3
 Function horn triggering
 Available galvanic signal inputs
Relay is active
By unchecking the checkbox the relay is deactivated.
Inverted
When this checkbox is ticked, the respective function is negated. In this case e.g. the relay drops
when a collective report is at issue and is energized when no collective report is at issue.
