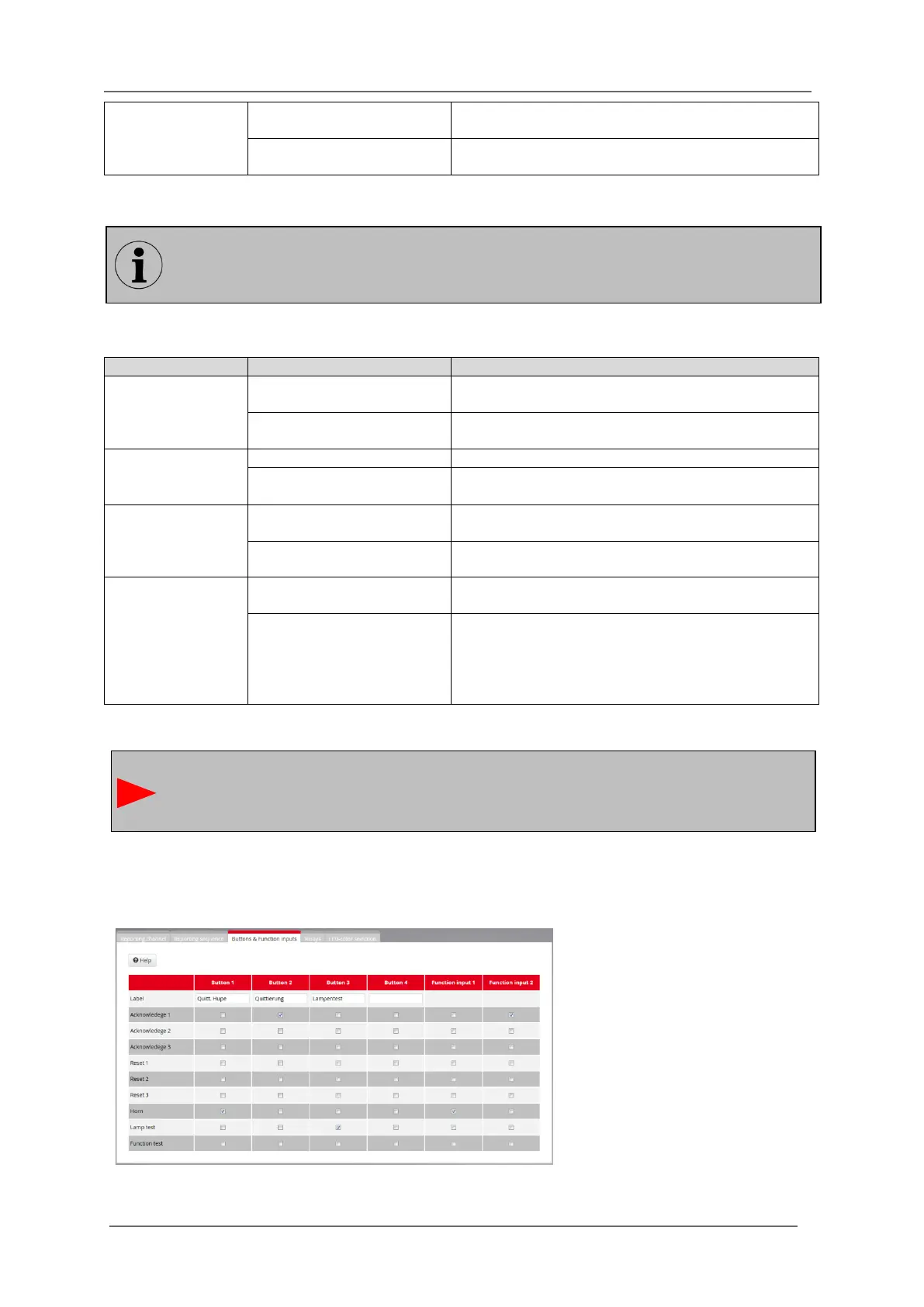

Parameterisation
MSM-USM2G-BA-UK-001 Page 37 of 45
Horn is triggered by subsequent alarm, even if there
are already alarms at issue.
Horn is triggered by subsequent alarms only if no
alarms are at issue.
Table 6.2: Options reporting group
Horn
Internal and external horn will be triggered in
parallel.
Internal horn is deactivated, relay contact for
triggering of external horn stays active.
Horn priority
acknowledgement
Horn can always be acknowledged.
Alarm can only be acknowledged once the horn has
been acknowledged.
Horn is acknowledged manually by button or
function input.
Horn is acknowledged automatically according to
the set time.
Horn is not triggered as long as function horn mute
is activated.
Horn is acknowledged automatically according to
the set time as long as function horn mute is
activated. This time can be defined independently
from the time for automatic horn acknowledgement
in normal operation mode.
Table 6.3: Options horn
6.2.4.3 Submenu Buttons & Function inputs
Fig. 6.16: Submenu assignment of buttons and function inputs
On this page, the specified functions
can be assigned to the push buttons
1…4 and the function inputs 1&2.
Multiple allocations are possible.
The designations of the buttons in the
line „Label“ will automatically be
adopted in the labelling strips and can
be printed from the page „reporting
channels“.
For additional information on the integrated reporting sequences, please refer to the
separate document „Alarm sequences of the EES fault annunciators“.
Please note that the parameters „horn priority acknowledgement“ and „Horn triggering“
(HT, page „Reporting channel“) depend on each other. If horn priority acknowledgement is
activated, the alarm can generally only be acknowledged after the horn has been
acknowledged.
