EKF SC3-LARGO - Processor Debug Header P-XDP

User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
5xxx Processor
Processor Debug Header P-XDP
The SC3-LARGO may be equipped with a 26-position processor debug header for hard- and software
debugging (specified by Intel
®
as XDP-SFF-26 Pin Platform Connection). The connector is suitable for
installation of a flat flex cable (FFC), in order to attach an JTAG debugger (emulator) such as the
Arium ECM-XDP3. An adapter (ITP-XDP-SFF-26) is required in addition to convert the 26-pin
XDP-SFF-26 Pin connector to the standard 60-pin XDP.
The header P-XDP would be mounted on the PCB bottom side, but is not stuffed by default.

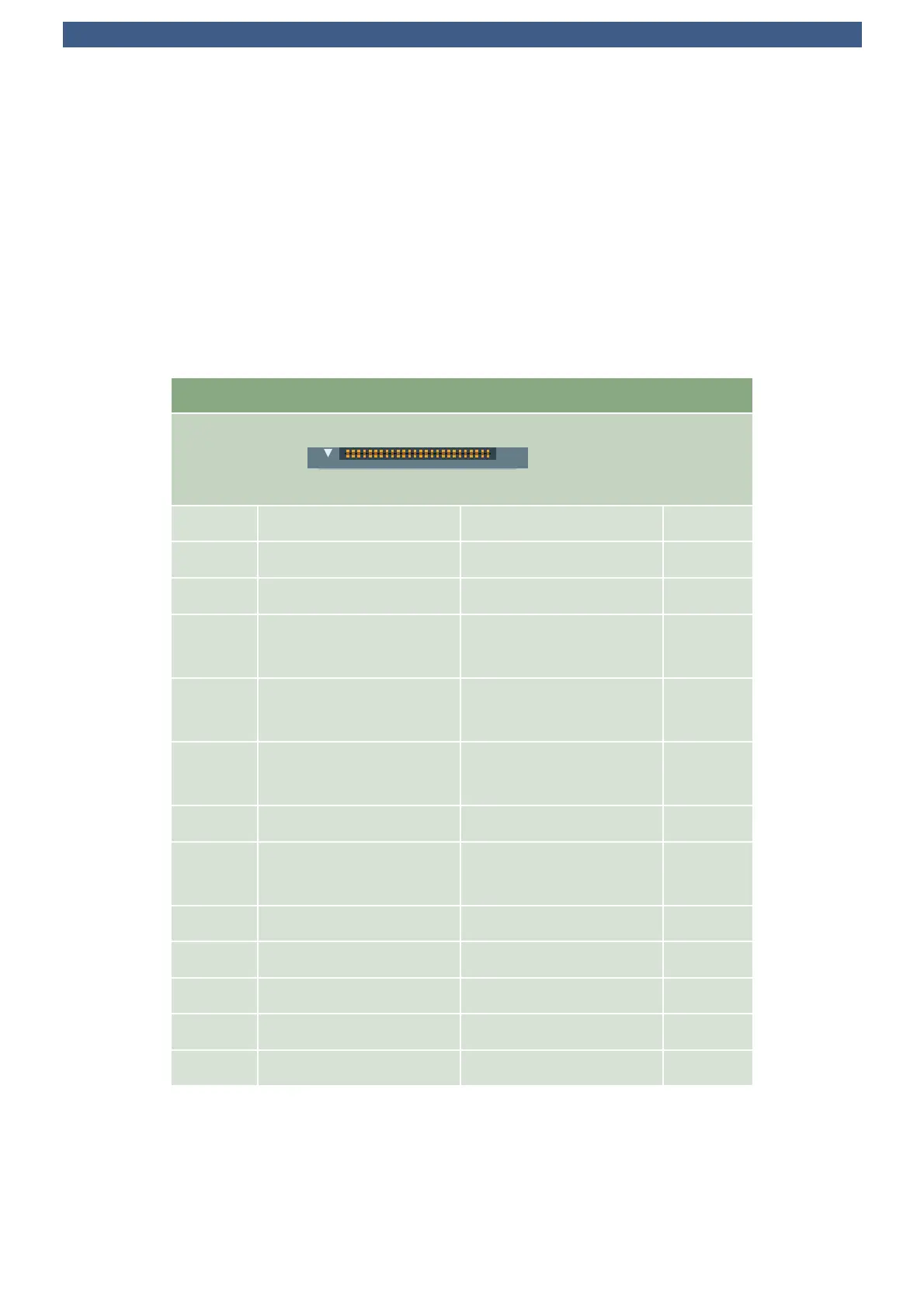

P-XDP Processor Debug Connector
1 OBSFN_A0 (PREQ#) OBSFN_A1 (PRDY#) 2
3GND
OBSDATA_A0
4
5
OBSDATA_A1
GND 6
7
OBSDATA_A2
OBSDATA_A3
(CPU_CFG3)
8
9 GND HOOK0
(CPU_PWRGOOD)
10
11 HOOK1
(XDP_PWRBTN)
HOOK2 (PWR_DBG#) 12
13 HOOK3 (SYS_PWROK)
HOOK4
14
15
HOOK5
VCCOBS_AB
(VCCIO_CPU)
16
17 HOOK6 (PLTRST#) HOOK7 (DBRESET#) 18
19 GND TDO 20
21 TRST# TDI 22
23 TMS
TCK1
24
25 GND TCK0 (TCK) 26
269.1.026.902 FFC Connecto
r
•
