EKF SC3-LARGO - PLD Programming Header P-ISP

User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
5xxx Processor
PLD Programming Header P-ISP
The SC3-LARGO is provided with a powerful PLD (in-System Programmable Logic Device) which
replaces legacy glue logic. The programming header P-ISP is not stuffed (in use for manufacturing
only). Its footprint is situated at the bottom side of the board.

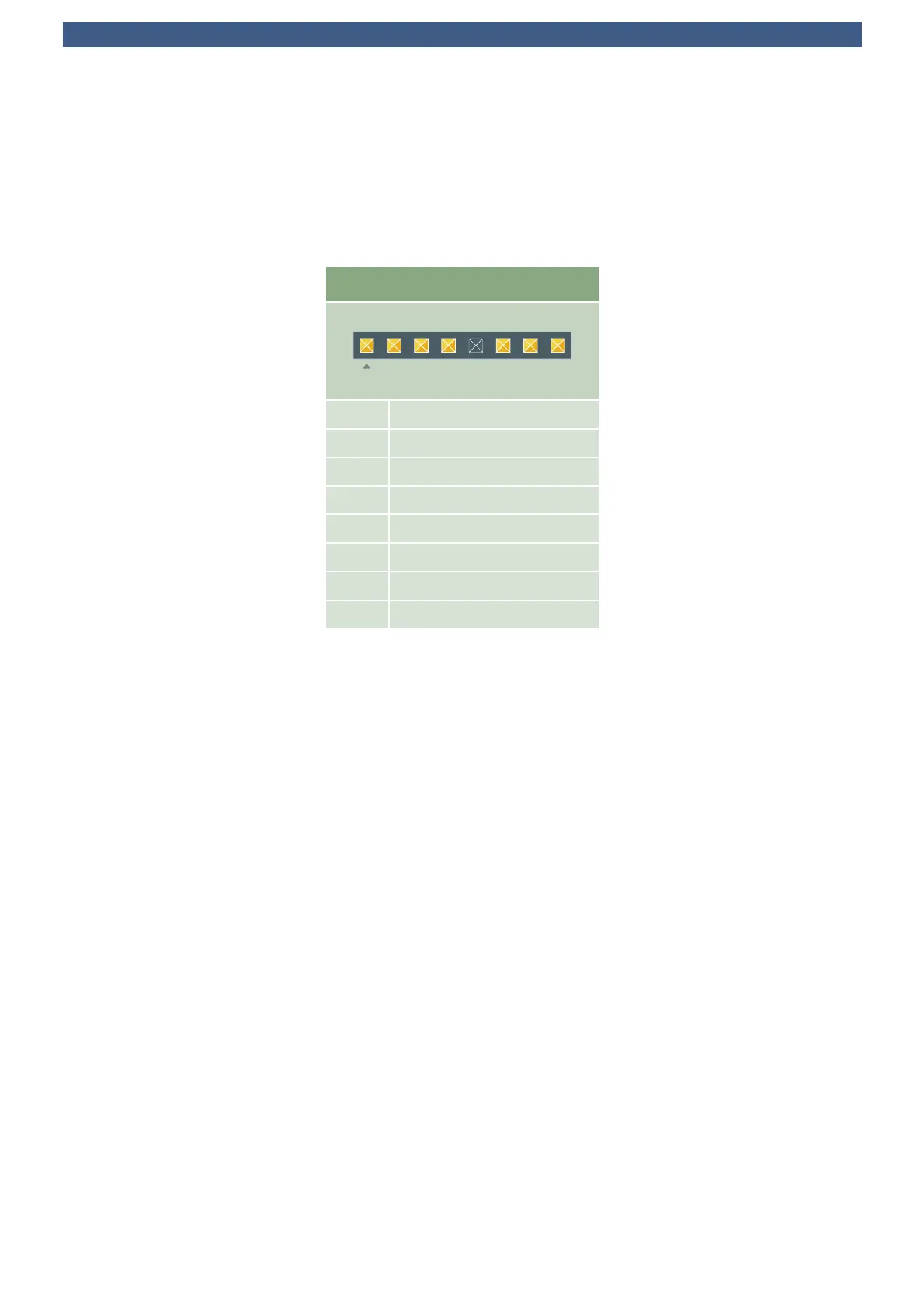

P-ISP
1 +3.3V
2TDO
3TDI
4 NC
5 KEY
6TMS
7GND
8TCK
240.1.08.I • © EKF • ekf.com
key
