EKF SC3-LARGO - High Speed Expansion Connector P-HSE

User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
5xxx Processor
High Speed Expansion Connector P-HSE

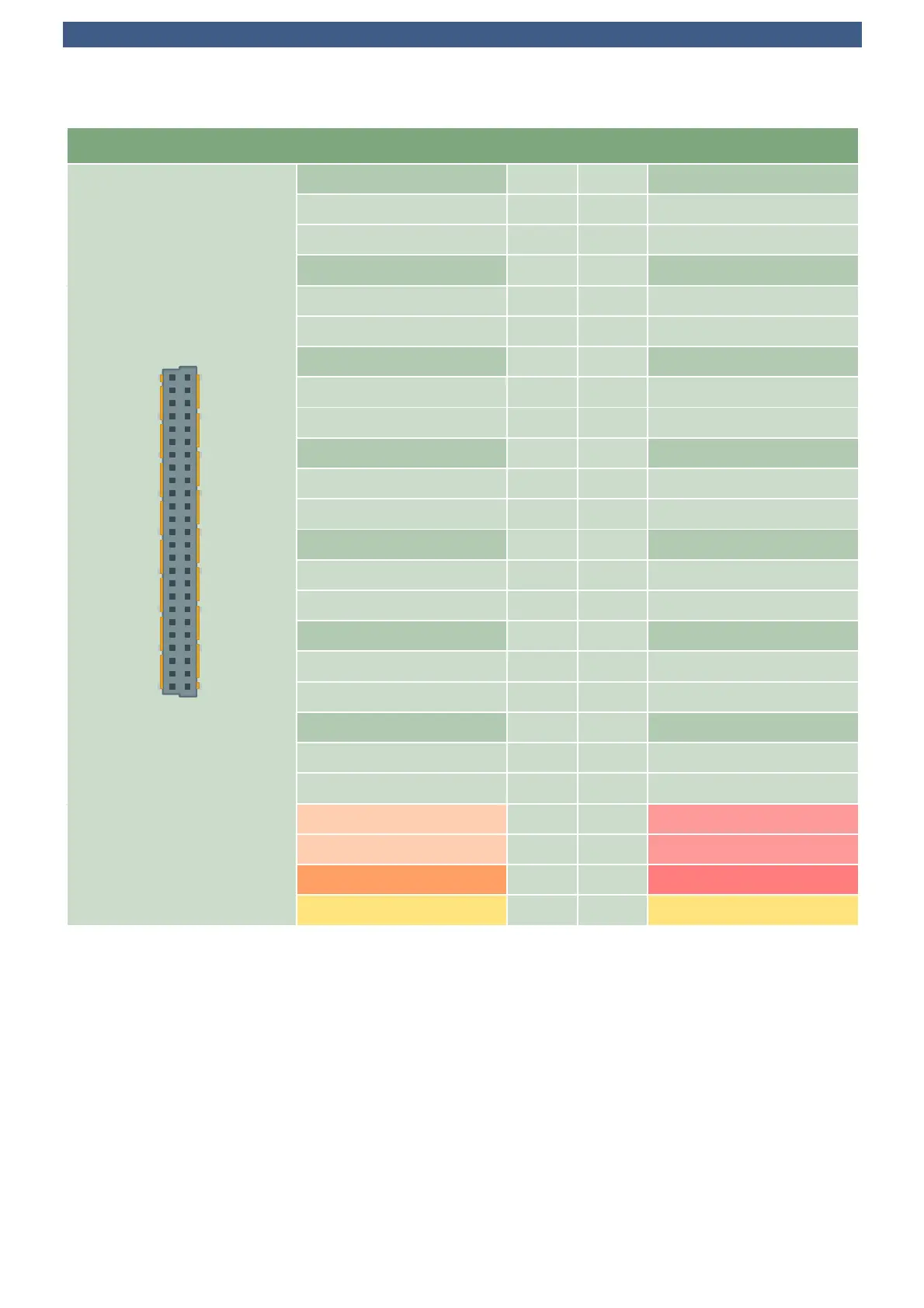

High Speed Expansion P-HSE
GND a1 b1 GND
SATA_HSE1_TXP a2 b2 SATA_HSE3_TXP
6)
SATA_HSE1_TXN a3 b3 SATA_HSE3_TXN
6)
GND a4 b4 GND
SATA_HSE1_RXN a5 b5 SATA_HSE3_RXN
6)
SATA_HSE1_RXP a6 b6 SATA_HSE3_RXP
6)
GND a7 b7 GND
SATA_HSE2_TXP a8 b8 SATA_HSE4_TXP
4)
SATA_HSE2_TXN a9 b9 SATA_HSE4_TXN
4)
GND a10 b10 GND
SATA_HSE2_RXN a11 b11 SATA_HSE4_RXN
4)
SATA_HSE2_RXP a12 b12 SATA_HSE4_RXP
4)
GND a13 b13 GND
USB_HSE1_P a14 b14 USB_HSE3_P
USB_HSE1_N a15 b15 USB_HSE3_N
GND a16 b16 GND
USB_HSE2_P a17 b17 USB_HSE4_P
USB_HSE2_N a18 b18 USB_HSE4_N
GND a19 b19 GND
USB_HSE_OC1# a20 b20 USB_HSE_OC34#
USB_HSE_OC2# a21 b21 USB_HSE_OC34#
+3.3VS
1)
a22 b22 +5VS
1)
+3.3VS
1)
a23 b23 +5VS
1)
+3.3VA
2)
a24 b24 +5VA
2)
+12V
3)
a25 b25 +12V
3)
1)
Power rail switched on in state S0 only (Switched).
2)
Power rail on with system stand-by power (Always).
3)
Power rail switch off in state S5.
4)
This SATA channel is not connected on SC3-LARGO.
5)
All SATA channels are derived from the PCH QM87.
6)
This SATA channel is limited to max. 3Gbps.
7)
All TX/RX designations with respect to the SATA controller.
WARNING: The +3.3V, +5V and +12V power pins are not protected against a short circuit event. The connector P-HSE
therefore should be used only for attachment of an approved expansion side card. The maximum current flow through
these power pins should be limited to 0.5A per pin.
a1
s1
s9 s18
s10
a25
b25
b1
1.00mm Pitch High Speed Female Connector (H=8mm)
© EKF • 275.90.08.068.01 • ekf.co
m
© EKF -94- ekf.com
