User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
5xxx Processor

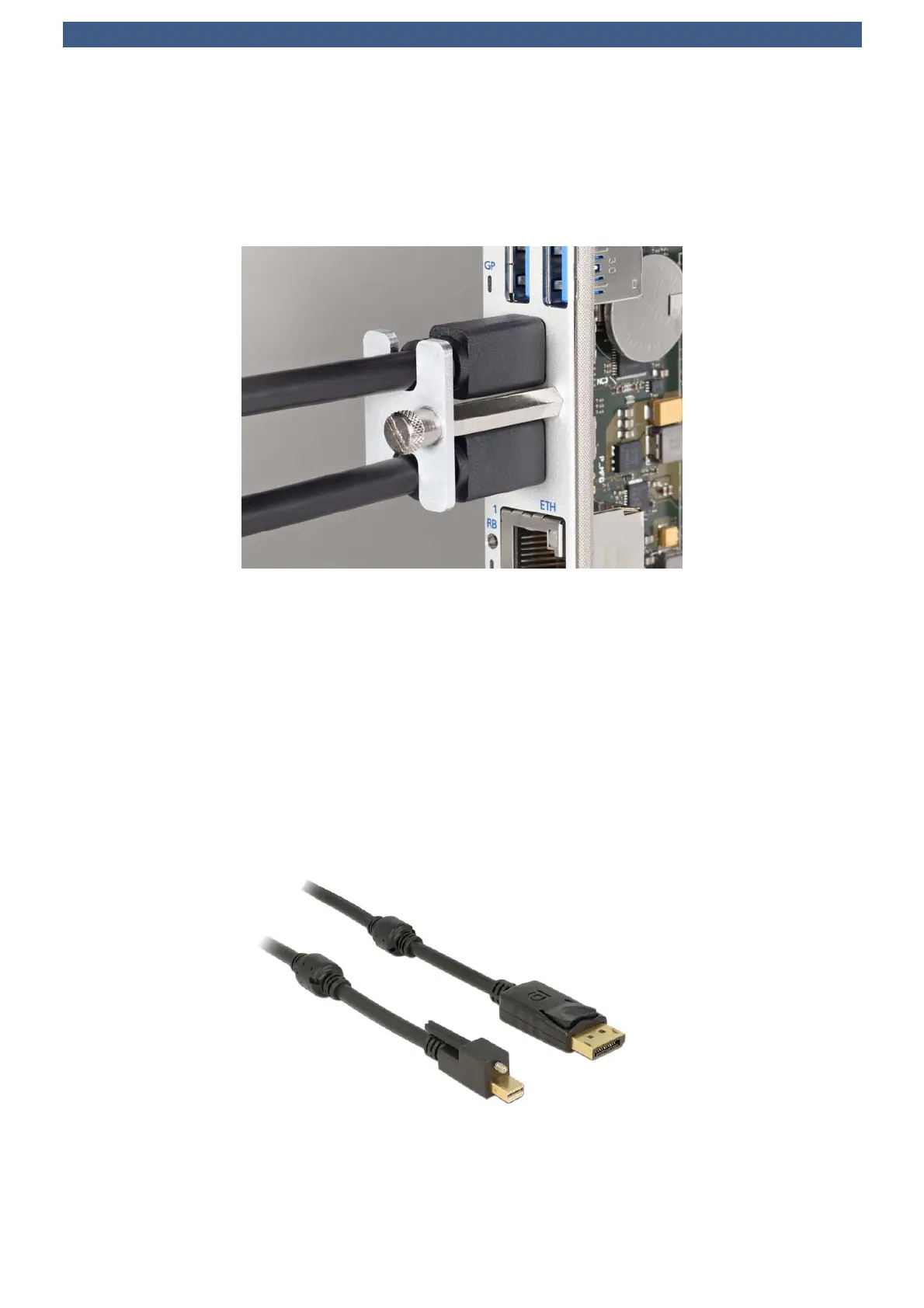

Screw-Locked mDP Connector Cable Assembly (Delock)
Option Screw-Lock Plate for mDP Cable Connectors
Screw Locking Option for mDP Connectors
Opposite to the Standard DisplayPort cable connectors, mDP connectors are not provided with a
latching device. For rugged applications with need for a connector locking mechanism, EKF offers two
methods of fixing.
1. The front panel is provided with a threaded hole for fixing a removable H-shape retainer plate,
which is available from EKF as accessory (image above).
2. As an alternate, the customer can use cable assemblies with screw-locked mDP connectors (image
below). The front panel has to be modified however for this solution (two threaded holes in addition,
please specify when ordering).
© EKF -86- ekf.com
