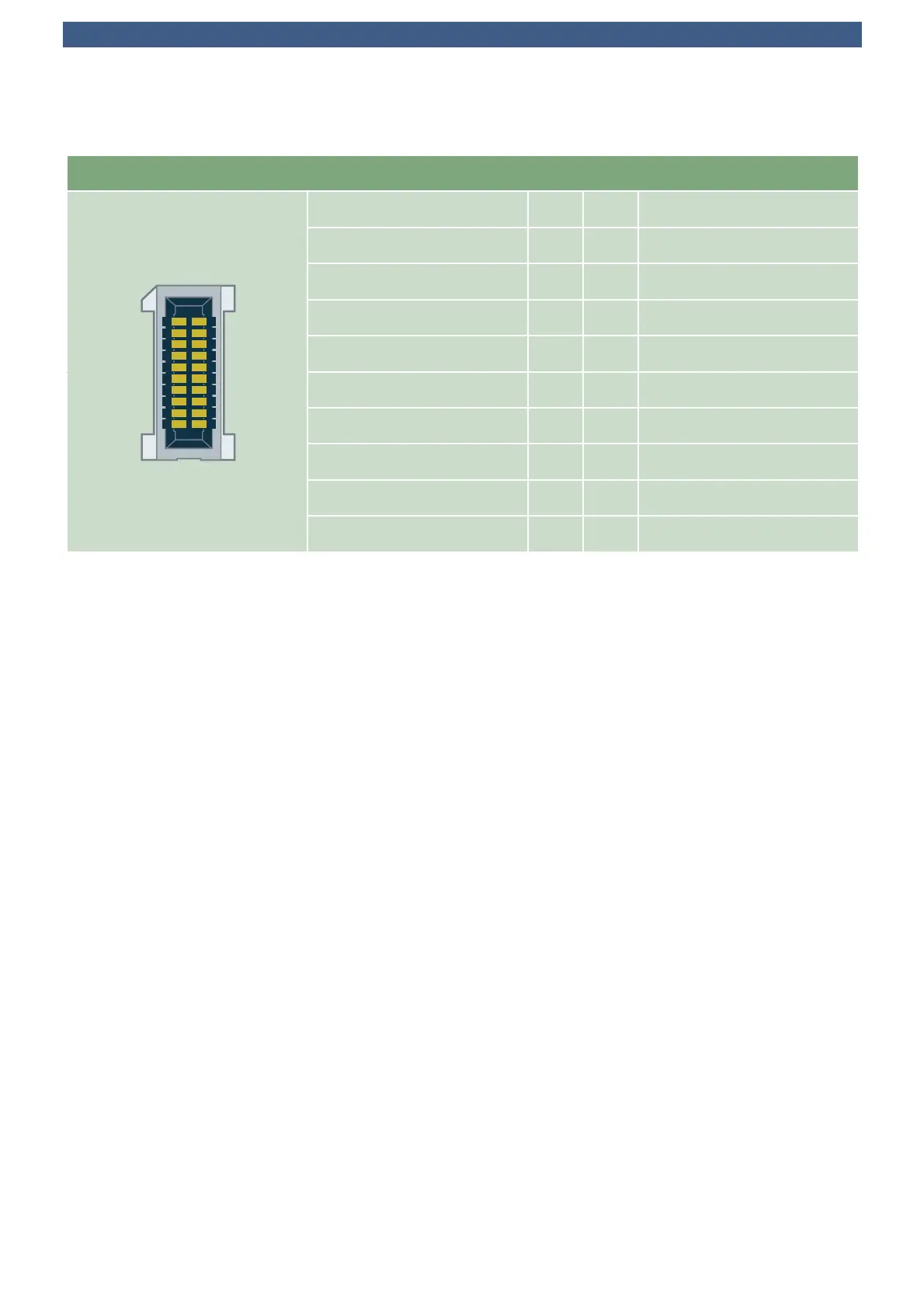

DisplayPort Expansion Header P-DP3
P-DP3
GND 1 2 GND
DP_LANE0+ 3 4 DP_LANE3+
DP_LANE0- 5 6 DP_LANE3-
GND 7 8 GND
DP_LANE1+ 9 10 DP_AUX+
DP_LANE1- 11 12 DP_AUX-
GND 13 14 GND
DP_LANE2+ 15 16 DP_HPD
DP_LANE2- 17 18 DP_CFG1
GND 19 20 GND
