User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
4xxx Processor

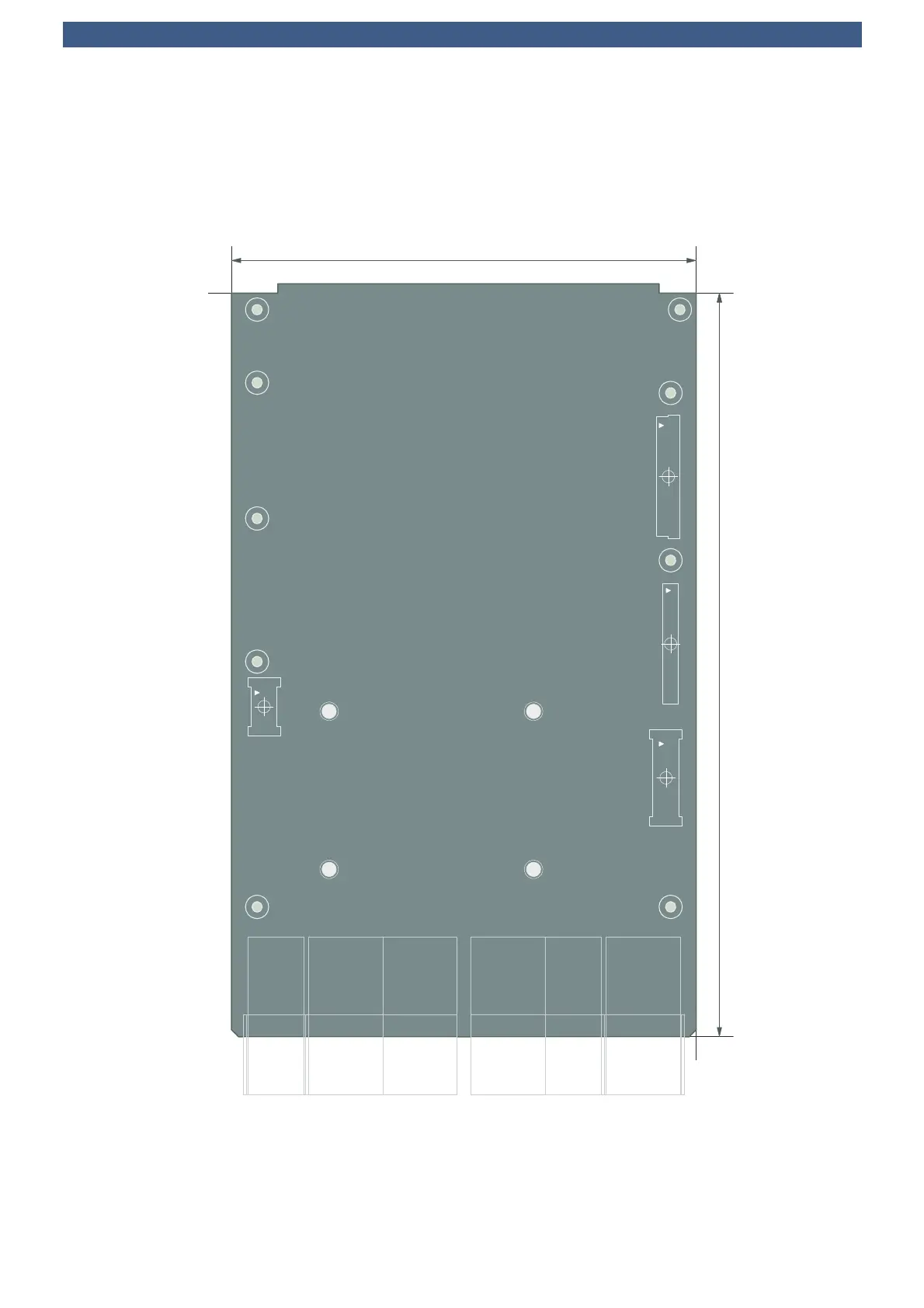

Mechanical Drawing
The following drawing shows the positions of mounting holes and expansion connectors on the
SC3-LARGO.
3.57/96.5mm
HSE
EXP PCIE
39.5/94.0mm
21.5/
94.5mm
75.5/94.5mm
132.07/94.5mm
104.3/93.5mm
DP
48.5/5.5mm
79.3/5.5mm
89.0/7.0mm
132.07/5.5mm
100.0mm
3.57/5.5mm
19.3/5.5mm
160.0mm
160.0/100.0mm
© EKF
ekf.com
Mezzanine
Connector
Alignment
P-HSE
P-DP3
P-EXP
P-PCIE
SC3-LARGO
CompactPCI
Serial
EKF
ekf.com•®•©•
