User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
5xxx Processor
SC3-LARGO
5th Generation
Intel® Core™ i7 CPU
EKF ekf.com©•
P1
P2
P3
P4
P5
P6
SC3-LARGO CompactPCI Serial EKF ekf.com•®•©•
HSE
3 x SATA 6G
(PCH)
4 x USB
LPC USB
SMBus
HD Audio
EXP
PCI Express®
Gen2
1 x 4 • 4 x 1
PCIE
Flat-
Panel
Video
DP 3
DP3
Top S i d e
Connector Assembly
Front Panel - Mezzanine - Backplane
Dual
GbE
VGA
DP
2
DP
1
2 x
USB
3.0
PE Gen3 x 8 (2)
PE Gen3 ½ x 8 (1)
2 x USB2 (3-4)
PE Gen3 ½ x 8 (1)
1 x USB3 (1)
Sideband
Power
3 x SATA (PCH)
4 x SATA (RAID)
1 x USB3 (2)
2 x USB2 (5-6)
4 x PE (3-6)
Gen2
4 Links x 1
Clk PE (1-8)
2 x PE (7-8)
Gen2
2 Links x 1
GbE
(1-2)
J-GP
J-RTC
J-MFG
P-HSE
P-USB
P-FPH
P-ETH
P-DP3
P-EXP
P-PCIE
P-DP1
P-DP2
P-VGA

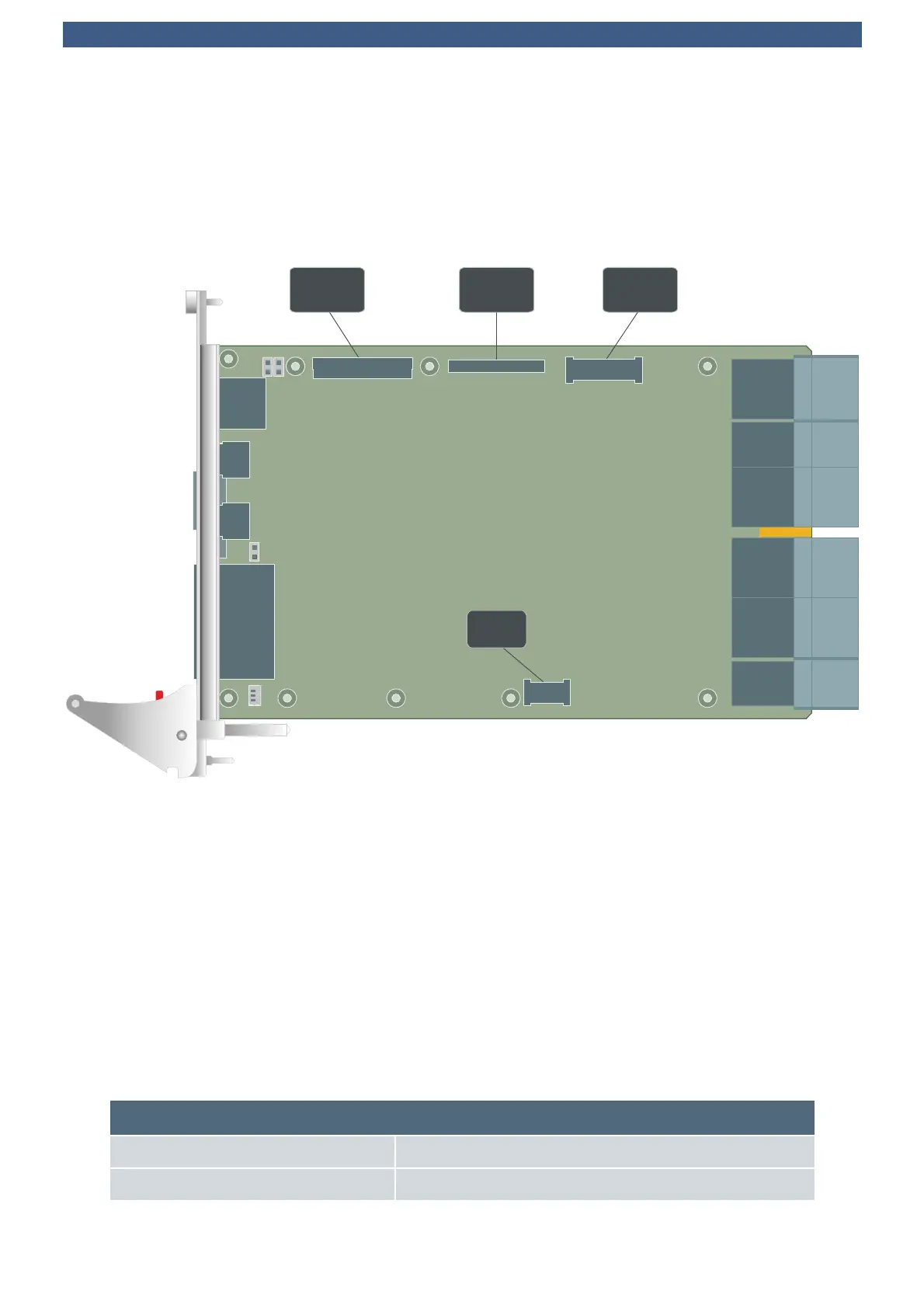

SC3-LARGO • Connector Assembly
Mezzanine Side Board Options
The SC3-LARGO is provided with several stacking connectors for attachment of a mezzanine
expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please
refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore
offers custom specific development of side boads (please contact sales@ekf.de).
Most mezzanine expansion modules require an assembly height of 8HP in total, together with the
CPU carrier board (resulting from two cards at 4HP pitch each).
In addition, cropped low profile mass storage mezzanine modules can be attached to P-HSE, which
maintain the 4HP envelope, for extremely compact systems. Furthermore these small size modules
may be combined with the full-size expansion boards (that means an assembly comprised of three
PCBs in total).
Related Documents Mezzanine Modules and Side Cards
C4* Series Mezzanine Storage Modules www.ekf.com/c/ccpu/c4x_mezz_ovw.pdf
SCS-TRUMPET Mezzanine Side Card www.ekf.com/s/csc/scs.html
© EKF -39- ekf.com
