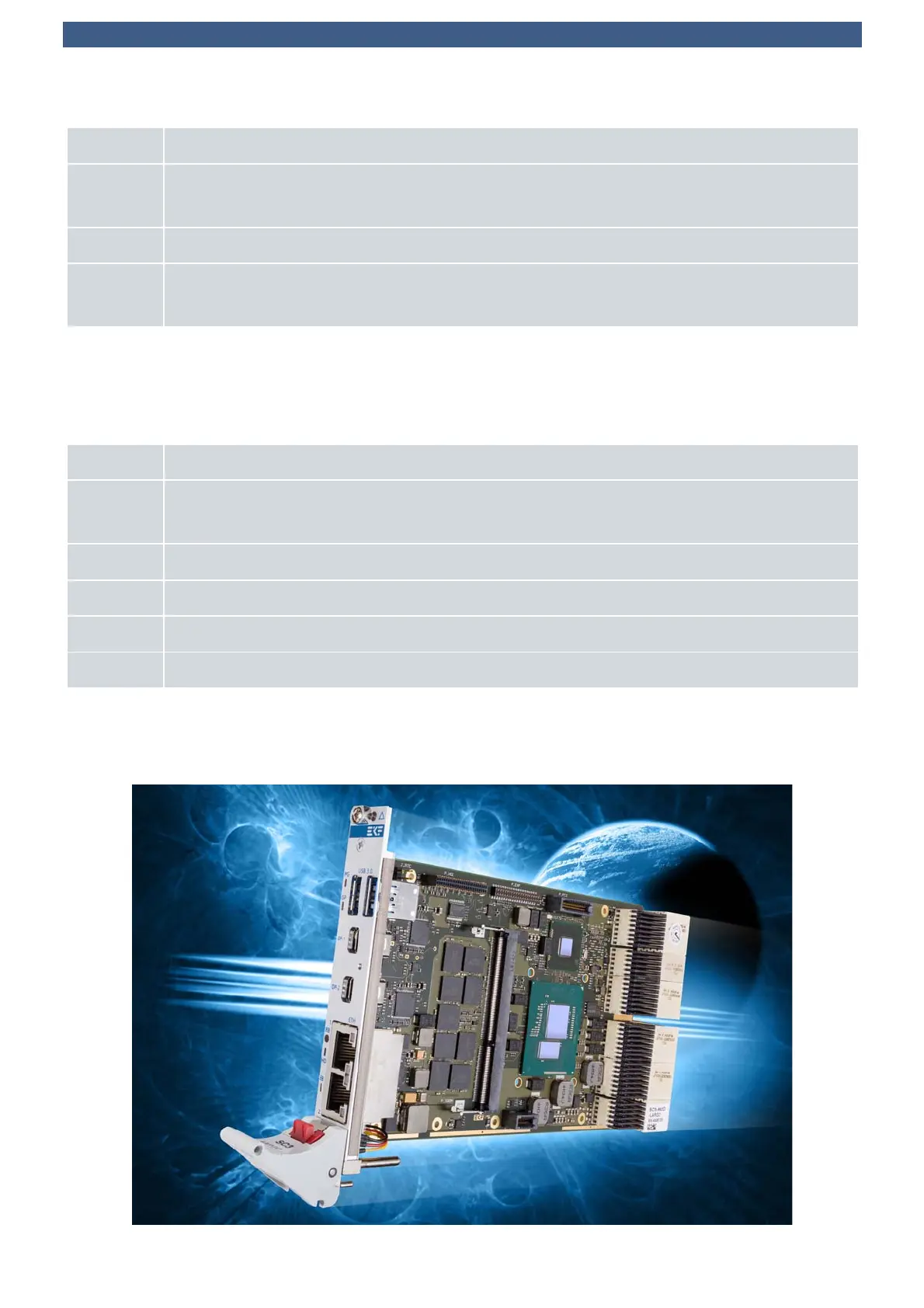

User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
5xxx Processor
Front Panel Connectors
ETH1/2 Dual Gigabit Ethernet RJ-45 receptacles with integrated indicator LEDs
DP1/2 Mini DisplayPort digital video output receptacle (VGA connector available as
alternate)
USB1/2 Universal Serial Bus 3.0 type A receptacles
VGA VGA analog video output connector (Mini DisplayPort connectors available as
alternate)
Front Panel Switches & Indicators
EB LED indicating Backplane Ethernet activity
FPH Front Panel Handle with integrated switch (programmable function, power event
button by default)
GP General Purpose bicolour LED
HD Bicoloured LED indicating any activity on SATA ports
PG Power Good/Board Healthy bicolour LED
RB System Reset Button (Option)
© EKF -19- ekf.com
