User Guide • SC3-LARGO • CompactPCI
®
Serial CPU Board • Intel
®
Core
TM
5xxx Processor
111
5
15
10
6

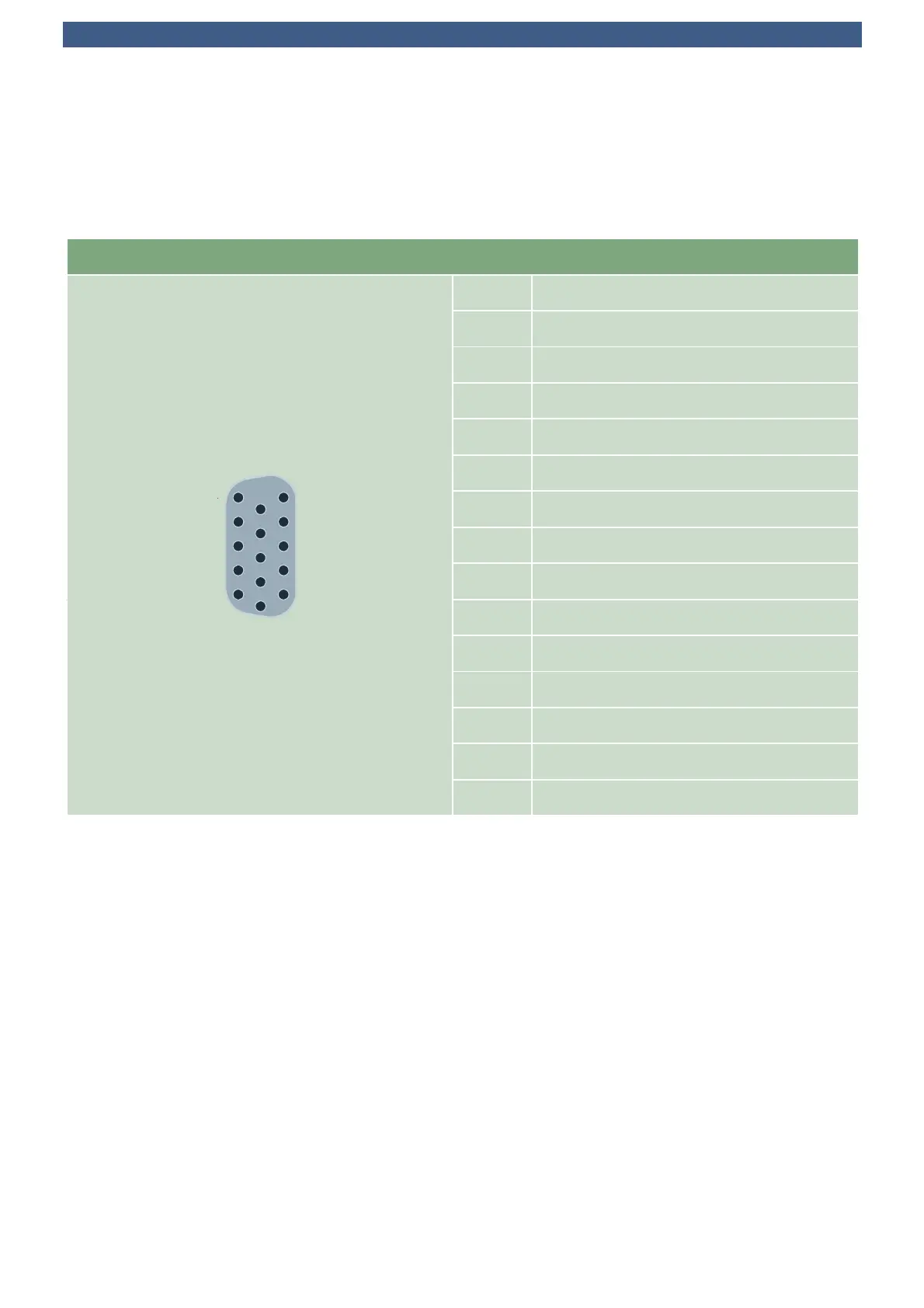

VGA Video Connector
As an option, the SC3-LARGO can be equipped with a legacy VGA connector (High-Density D-Sub
15-position female connector). The connector VGA replaces the two Mini DisplayPort receptacles, and
the digital video interface therefore is not available concurrently with this option.
P-VGA (Option)
1RED
2 GREEN
3BLUE
4NC
5GND
6GND
7GND
8GND
9 DDC_POW
1)
10 GND
11 NC
12 VGA_DDC_SDA
13 HSYNC
14 VSYNC
15 VGA_DDC_SCL
1)
+3.3V protected by a self resetting PolySwitch fuse 0.75A. This voltage is switched on in S0 state
only.
