Charging system of the Transmitting Unit
41
12.4 Removing the charging system
To remove the charging system after charging, carry out the
procedure indicated in paragraph 12.3in reverse order.

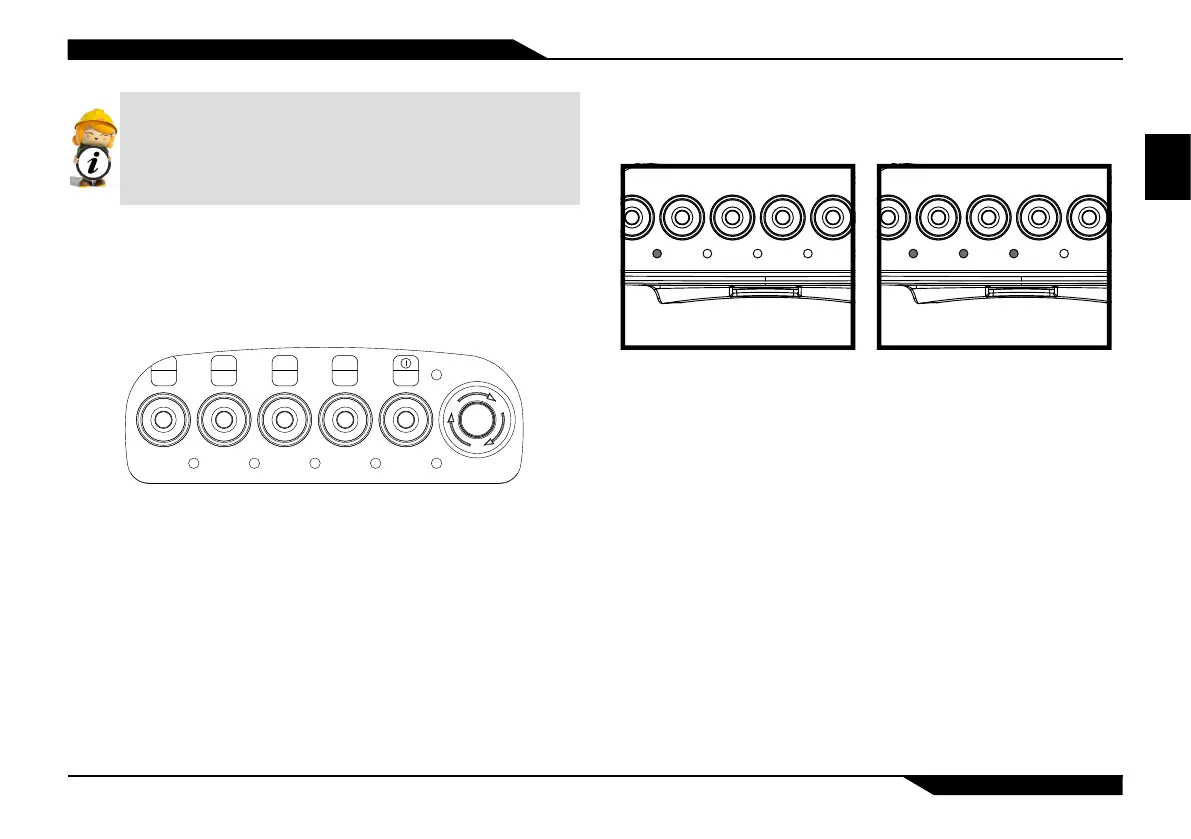

12.5 Charge level indicator of the Transmitting Unit
To check the charge level of the Transmitting Unit, start and keep active
simultaneously the START + K1 actuators with the Transmitting Unit off.
CHECK
CHARGE
1 2 3 4
K1 K2 K3 K0 START STOP
K4 K5 K6 K7 --
After e double ashings of the red Check LED, the white LED 1, 2, 3
come on progressively according to the charge state of the battery; if
only LED 3 is on it indicates that the battery is low, LED 1, 2 and 3 on
indicate that the battery is fully charged.
1 2
3
4 1 2
3
4
min MAX
