Description of the Transmitting Unit
ELCA
32
Table Position Information
Transmitting Unit data
plate
Side of the
Transmitting Unit
Serial number (Serial
Num.), year of
manufacture
and the main technical
information of the
Transmitting Unit, the
marking
and any trademarks
of the Radio Remote
Control.

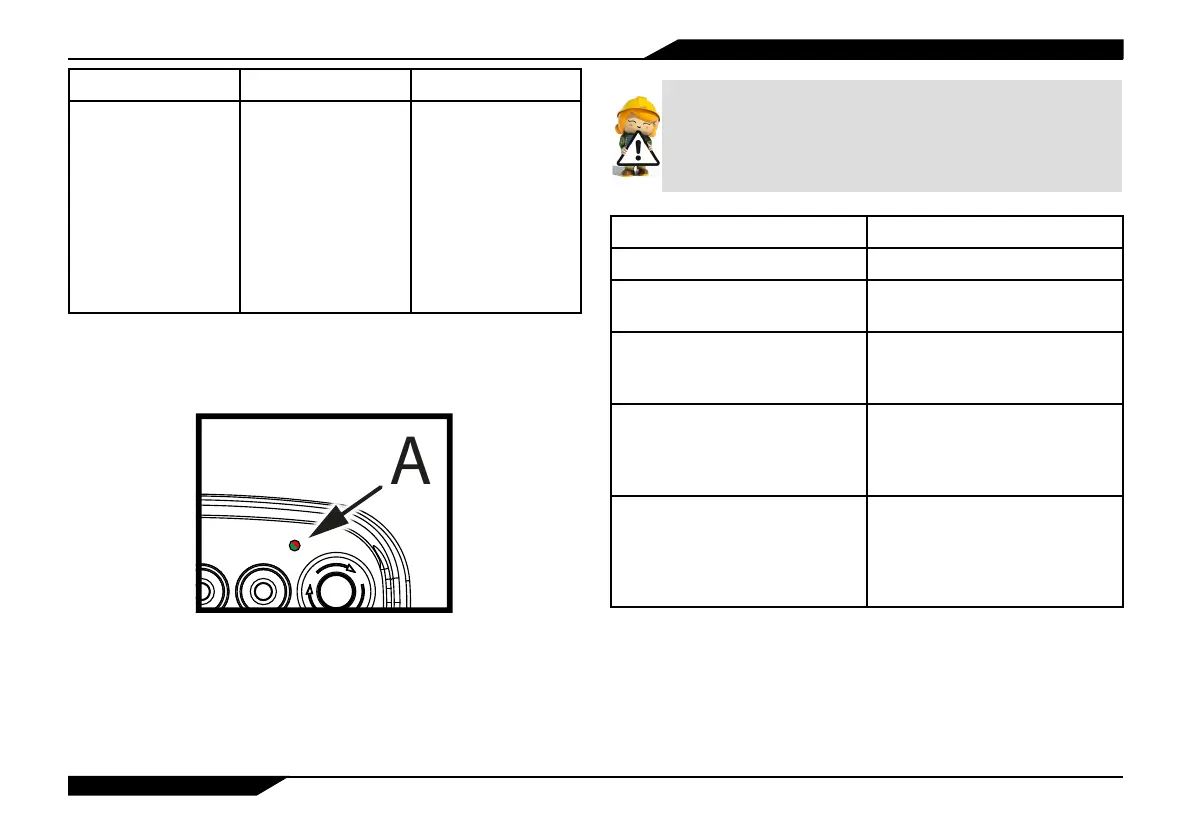

10.4 Indicator lights
10.4.1 LED Check [A]
A
The LED [A] can assume two colours: green or red.
The green or red colour provides information on the radio remote control.
See the tables below for the meaning of the LED lights.
For the action to be undertaken when the green and red indicator lights
are present see the tables below or paragraph 14.1.
It is not possible to alter the meaning of the green and
red LED signals.
SIGNAL MEANING
LED [A] is off. The Transmitting Unit is off.
The green LED [A] is on with a
steady light for 5 seconds.
The Transmitting Unit is waiting for
the access code to be entered.
The green LED [A] ashes slowly ( 1
ash/second).
The Radio Remote Control is
operating correctly and the battery
is charged.
The green LED [A] remains on for
10 seconds then blinks twice every
2 seconds.
The Transmitting Unit was switched
on and enabled but is not receiving
signals from the Receiving Unit that
might be off.
LED [A] is green and ashes rapidly
The Radio Remote Control might be
being disturbed or be at the limit
of its operating range or else in a
place with obstacles impeding the
transmission of the signals.
