06/2016 - Art. Nr. 4200 1041 1103A18
Installation

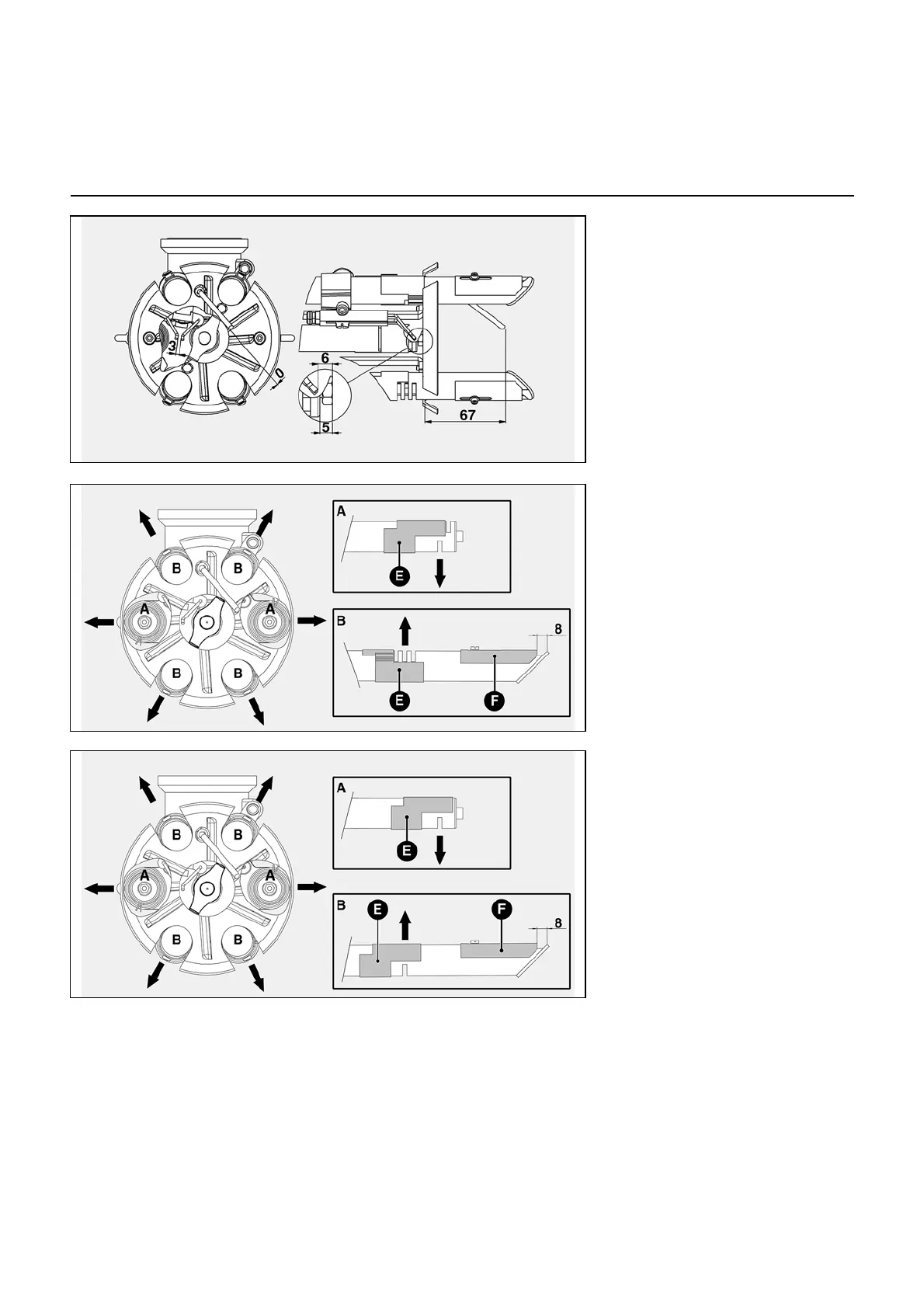

Checking the burner head for natural gas/propane gas
Checking the burner head
• Check the adjustment settings of the
ionisation probe and of the ignition
electrode as per the diagrams.
Recommended setting for
natural gas
On the gas diffusers labelled A,
1 outwards-facing slot and 1 inwards-
facing slot should be left open by sliding
shutter/diffuser E.
On the gas diffusers labelled B,
3 outwards-facing slots and 0 inwards-
facing slots should be left open by
sliding shutter/diffuser E.
At the end of the gas diffusers labelled
B, the opening is 8 mm (adjusted by
sliding the shutter F).
Recommended setting for propane
gas
On the gas diffusers labelled A,
1 outwards-facing slot and 0 inwards-
facing slot should be left open by sliding
shutter/diffuser E.
On the gas diffusers labelled B,
0 outwards-facing slots and 1 inwards-
facing slot should be left open by sliding
shutter/diffuser E.
At the end of the gas diffusers labelled
B, the opening is 8 mm (adjusted by
sliding the shutter F).
