06/2016 - Art. Nr. 4200 1041 1103A 23
POWERING UP
Connect the equipment to the power supply.
The micro-console switches to Output (display) mode.
Commissioning
VGx MV/TC burner
Air regulation by ventilation speed
ACS150 speed controller
Parameter setting mode
In Parameters mode, you can:
• display and change parameter values
• select and change signals, which are displayed in Display mode
• start, stop, change the rotation direction and switch between local control and remote control.

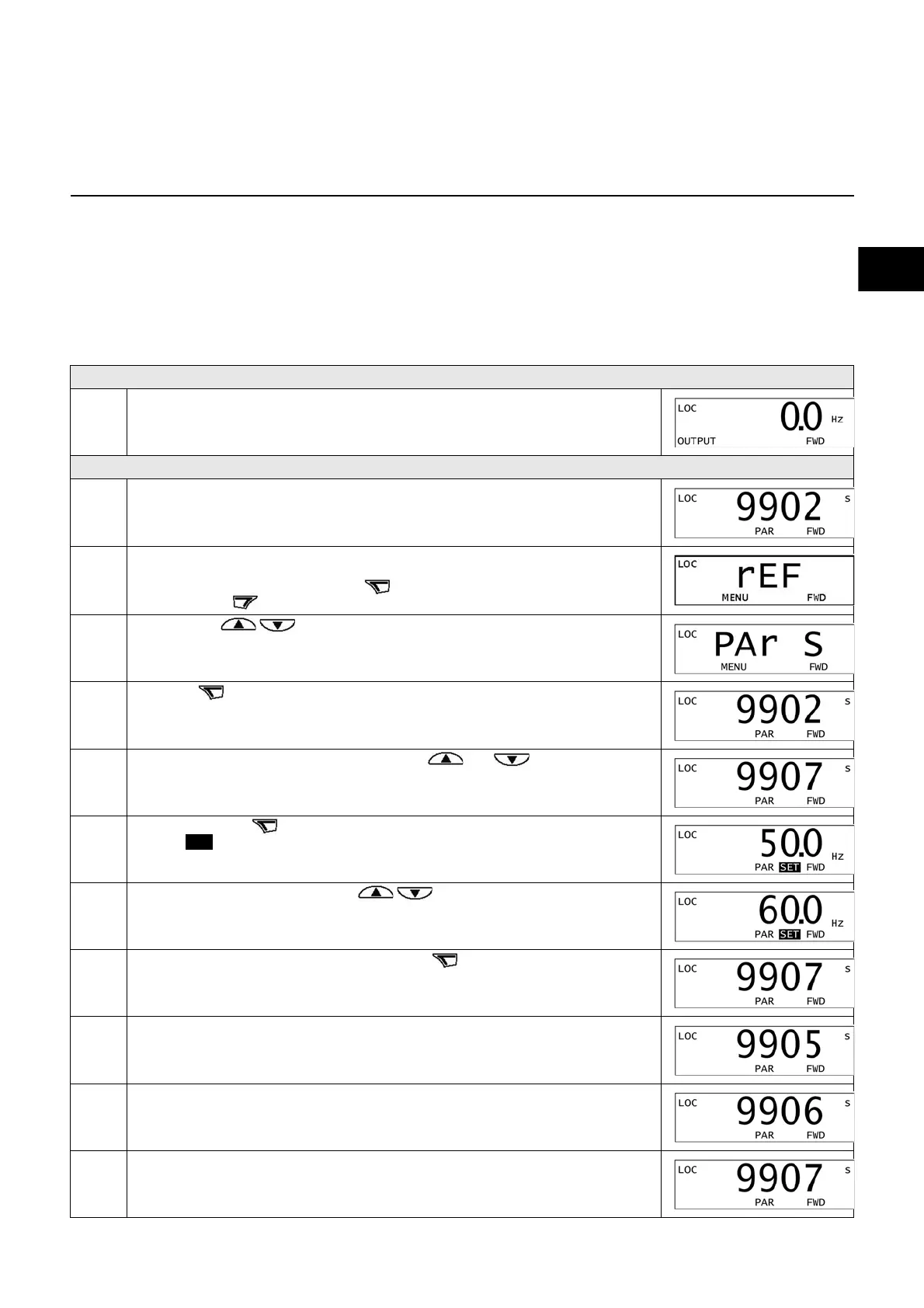

Selecting a parameter and changing its value
INITIALIZATION DATA INPUT
The preselected macro program 1 (STANDARD ABB) is suited to the majority
of applications.
General configuration procedure in Partial parameters mode:
1. To access the main menu, press if the lower line displays OUTPUT: other-
wise, press multiple times until the lower line displays the MENU function.
2. Press the / buttons until the function “PArS” displays.
3. Press . The micro-console displays a Partial parameters mode parameter.
4. Select the desired parameter using buttons and .
5. Hold down the button for approximately two seconds, until the parameter
and function value displays below the value.
6. Change the value using buttons / . To scroll through the values more
quickly, hold down the buttons.
7. Confirmed the configured value by pressing .
• Motor rated voltage
• Motor rated current
Permitted adjustment range: 0.2–2.0 /
2N
A
• Motor rated frequency
