Electrolux EWM1000 - EWM1000 plus Circuit Board Connectors

EWM1000plus EWM2000evo EWM3000new
QUICK GUIDE AND APPLIANCES LIST 39/176 599 72 40-80

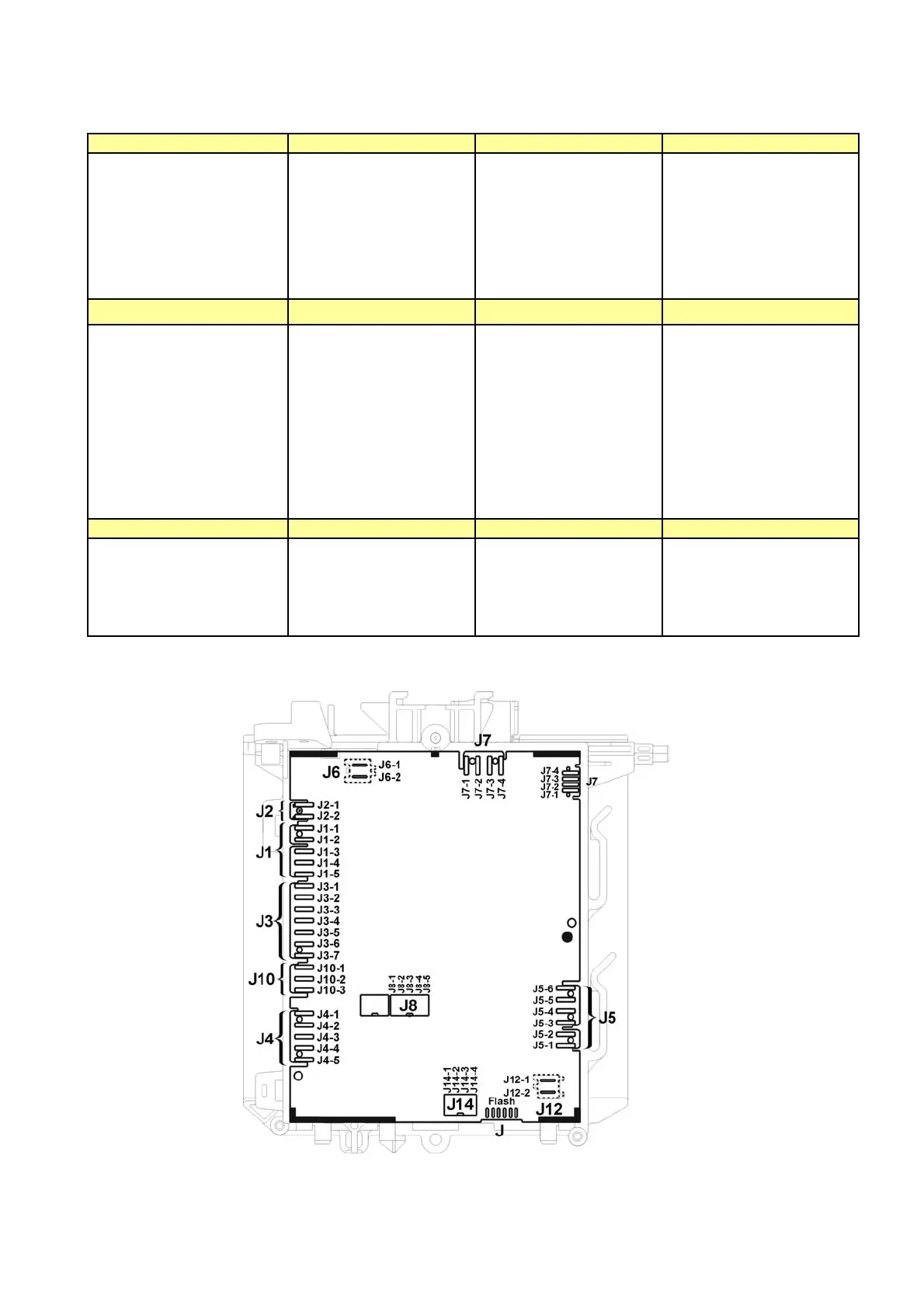

2.15 Connectors on circuit board EWM1000plus
J1 J2 J3 J4
Motor
J1-1 Motor (triac)
J1-2 Motor (rotor)
J1-3 Motor (rotor)
J1-4 Motor (stator - full range)
J1-5 Motor (stator - 1/2 range)
Door lamp
J2-1 Door lamp
J2-2 Door lamp
J3-1 Door safety interlock
(line-sensing)
J3-2 Drain pump (line)
J3-3 Aqua Control (line)
J3-4 Anti-overflow pressure
switch (line)
J3-5 1st level (sensing)
J3-6 Anti-overflow (sensing)
J3-7 Drain pump (triac)
Solenoid valves
J4-1 Prewash solenoid
(line)
J4-2 Bleach solenoid (line)
J4-3 Prewash solenoid (triac)
J4-4 Wash solenoid (triac)
J4-5 Bleach solenoid (triac)
J5 J6 J7 J8
J5-1 Drum positioning (DSP)
(sensing)
J5-2 Drum positioning (DSP)
(+5v)
J5-3 Tachometric generator
motor
J5-4 Tachometric generator
motor
J5-5 NTC temperature sensor
washing (sensing)
J5-6 NTC temperature sensor
washing (+5v)
Heating element:
J6-1 Relay
J6-2 Line
DAAS Interface:
J7-1 ASY_IN
J7-2 ASY_OUT
J7-3 Vcc (+5v)
J7-4 GND
Display board
J8-1 Vcc (+5v)
J8-2 GND
J8-3 SY OUT
J8-4 SY IN
J8-5 SY CLK
J10 J12 J14
J10-1 Line ON/OFF
J10-2 Door safety interlock
(triac)
J10-3
Washing solenoid
(line)
J12-1 LV2 (sensing)
J12-2 Door safety interlock
Flowmeter
J14-1 GND
J14-2 Vcc (5v)
J14-3 Flowmeter_dgt_in
J14-4 Flowmeter_anl_in
