Electrolux EWM1000 - EWM Diagnostics Test Phases

EWM1000plus EWM2000evo EWM3000new
QUICK GUIDE AND APPLIANCES LIST 24/176 599 72 40-80
2.9 Phases of the diagnostics test
Independently of the type of selector, after activating the diagnostics system, the operation diagnostics of
the different components and the reading of the alarms can be performed, by rotating the selector
clockwise.
In models with digit the code of the selector position is displayed for a second.
In the diagnostics cycle all alarms are activated. If during the cycle operation an alarm occurs, the appliance
blocks and the LEDs (and the display) flash indicating the relative code.

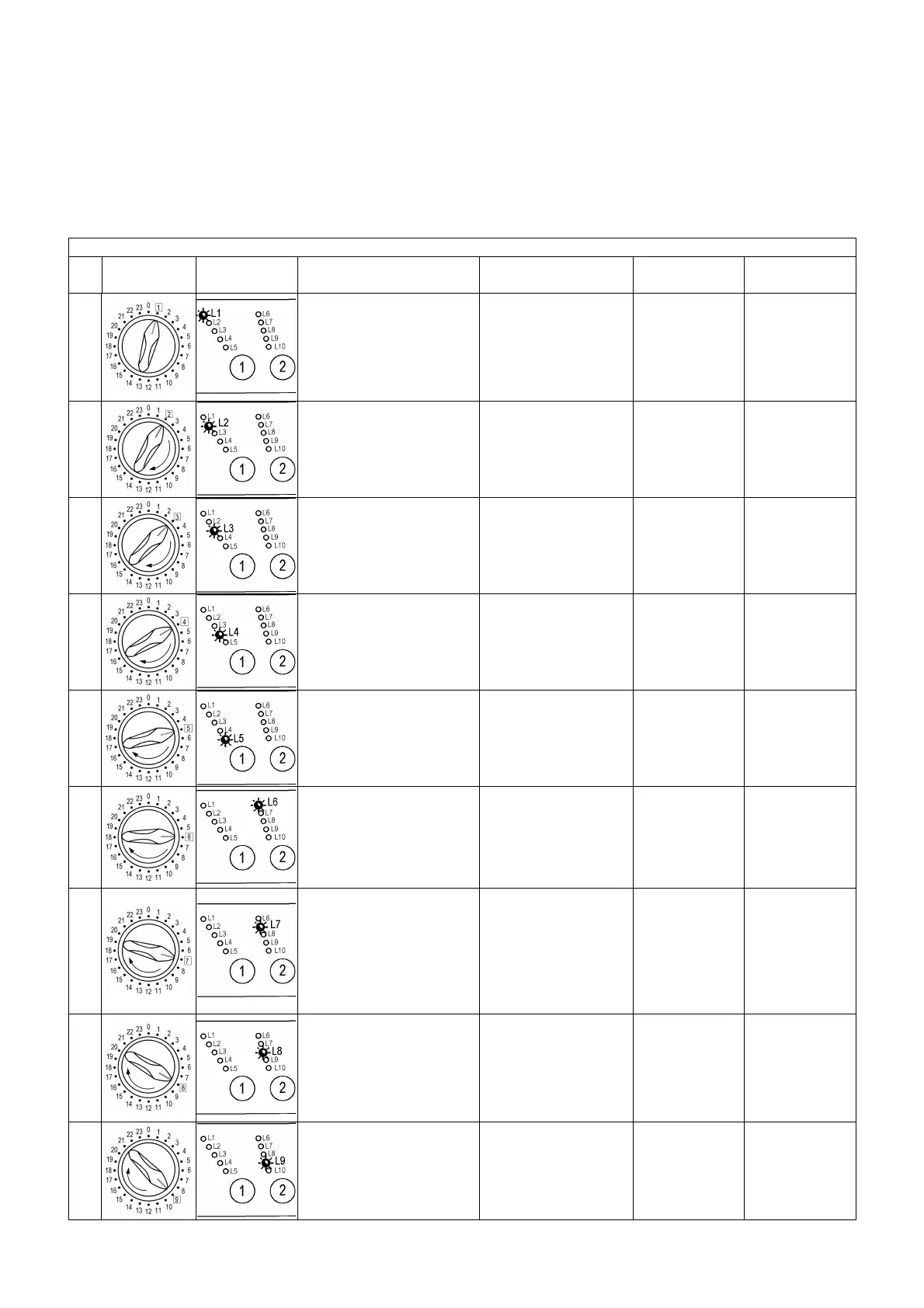

Diagnostics phases
Selector
Only
pushbutton
Components actioned Operating conditions Function checked
Displayed
parameters (1)
1
All the LEDs light in
sequence. When a
button is pressed, the
corresponding LED
lights (and the buzzer, if
featured, sounds)
Always activated
Operation of
the user
interface
Button
codification
2
Door interlock Washing
solenoid
Door locked
Water level below
anti-flooding level
Maximum time 5
minutes
Water ducted
through
washing
compartment
(**)Selection
position code
3
Door interlock Pre-wash
solenoid
Door locked
Water level below
anti-flooding level
Maximum time 5
minutes
Water ducted
through pre-
wash
compartment
(bleach)
(**)Selection
position code
4
Door interlock
Pre-wash and wash
solenoids
Door locked
Water level below
anti-flooding level
Maximum time 5
minutes
Water ducted
through
conditioner
compartment
(**)Selection
position code
5
Door interlock.
Bleach/stains solenoid.
Door locked
Water level below
anti-flooding level
Maximum time 5
minutes
Water ducted
through
bleach/stains
compartment
(**)Selection
position code
6
Door interlock
Washing solenoid if the
level of water in the tub is
below 1st level Heating
element.
Door locked.
Water at 1st level.
Maximum time 10
min. or up to 90ºC. (*)
Heating
(**)Selection
position code
7
Door interlock. (Washing
solenoid if the level of
water in the tub is below
1st level). Motor (55 rpm
clockwise, 55 rpm
counter-clockwise, 250
rpm impulse)
Door locked
Water level at 1st
level.
Check for leaks
from the tub
(**)Selection
position code
8
Door interlock
Drain pump Motor up to
650 rpm then at
maximum spin speed
Door locked
Water level lower
than anti-boiling
level for spinning
Drain and
spin; control
of congruence
in closure of
level pressure
switches
(**)Selection
position code
9
Drying heater
Fan
Condensation solenoid
Drain pump
Motor
Door closed Drying
(**) selector
position code
