Electrolux EWM1000 - Alarm Display ENV06;EWM Versions

ENV06 EWM11xx EWM21xx EWM25xx/35xx
QUICK GUIDE AND APPLIANCES LIST 45/176 599 72 40-80

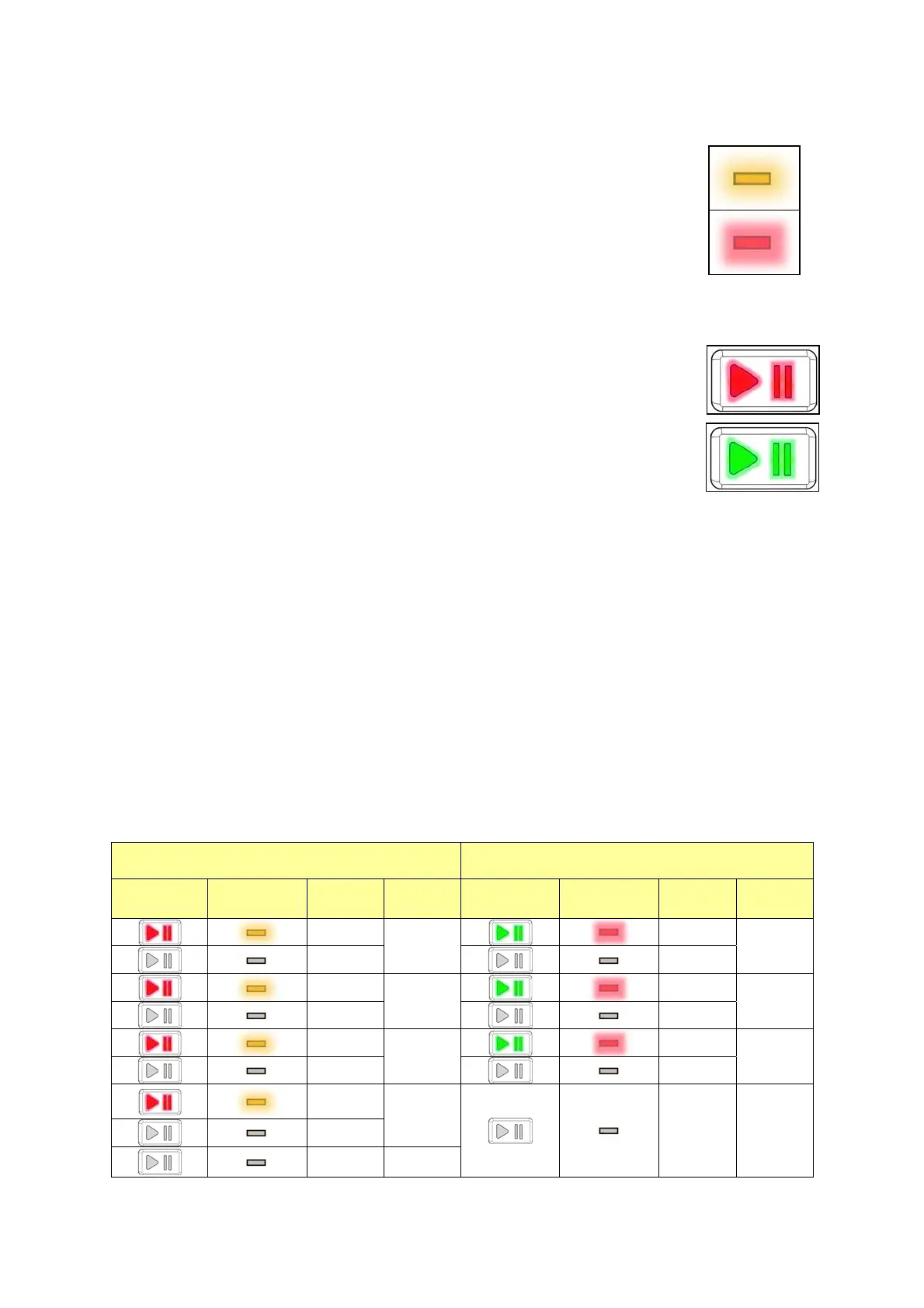

3.4 Alarm displaying
3.4.1 AEG Version:
The alarm is displayed by a repeated flashing sequence of the LED placed above
the button START / PAUSE with yellow and red light (0,5 seconds on, 0,5
seconds off with a 2,5 second pause between the sequences).
• LED indicator START / PAUSE with yellow light → indicates the first digit of
the alarm code (family).
• LED indicator START / PAUS with red light → indicates the second digit of
the alarm code (internal number of the family).
These two LEDs are featured in all models.
3.4.2 Other versions:
The alarm is displayed by a repeated flashing sequence of the START / PAUSE
button with red and green light (0,5 seconds on, 0,5 seconds off with a 2,5
second pause between the sequences).
• LED indicator START / PAUSE with red light → indicates the first digit of the
alarm code (family)
• LED indicator START / PAUSE with green light → indicates the second digit
of the alarm code (internal number of the family)
These two LEDs are featured in all models.
Notes:
• The first letter of the alarm code “E” (Error) is not displayed, since this letter is common to all alarm
codes.
• The alarm code “families” are shown in hexadecimal; in other words:
→ A is represented by 10 flashes
→ B is represented by 11 flashes
→ ...
→ F is represented by 15 flashes
• Configuration errors are shown by the flashing of all the LEDs, placed inside or above the button
START/PAUSE.
3.4.3 Examples of alarm display
Example: Alarm E43 (problems with the door interlock Triac) will display the following:
• the sequence of four flashes of the START / PAUSE button with red light (version AEG LED yellow
light), indicates the first number E
43;
• the sequence of three flashes of the START / PAUSE button with green light (version AEG LED red
light), indicates the second number E4
3;
3.4.4 Operation of alarms during diagnostics
All alarms are enabled during the components diagnostic phase.
Button/LED - START / PAUSE
red/yellow light
Button/LED - START / PAUSE
red/green light
ON/OFF
On/Off
(Ver. AEG)
Time
(Sec.)
Value ON/OFF
On/Off
(Ver. AEG)
Time
(Sec.)
Value
0.5
0.5
0.5
1
0.5
1
0.5
0.5
0.5
2
0.5
2
0.5
0.5
0.5
3
0.5
3
0.5
0.5
4
1.5 Pause
2.5 Pause
