3. USER INSTRUCTIONS
3.4.2.

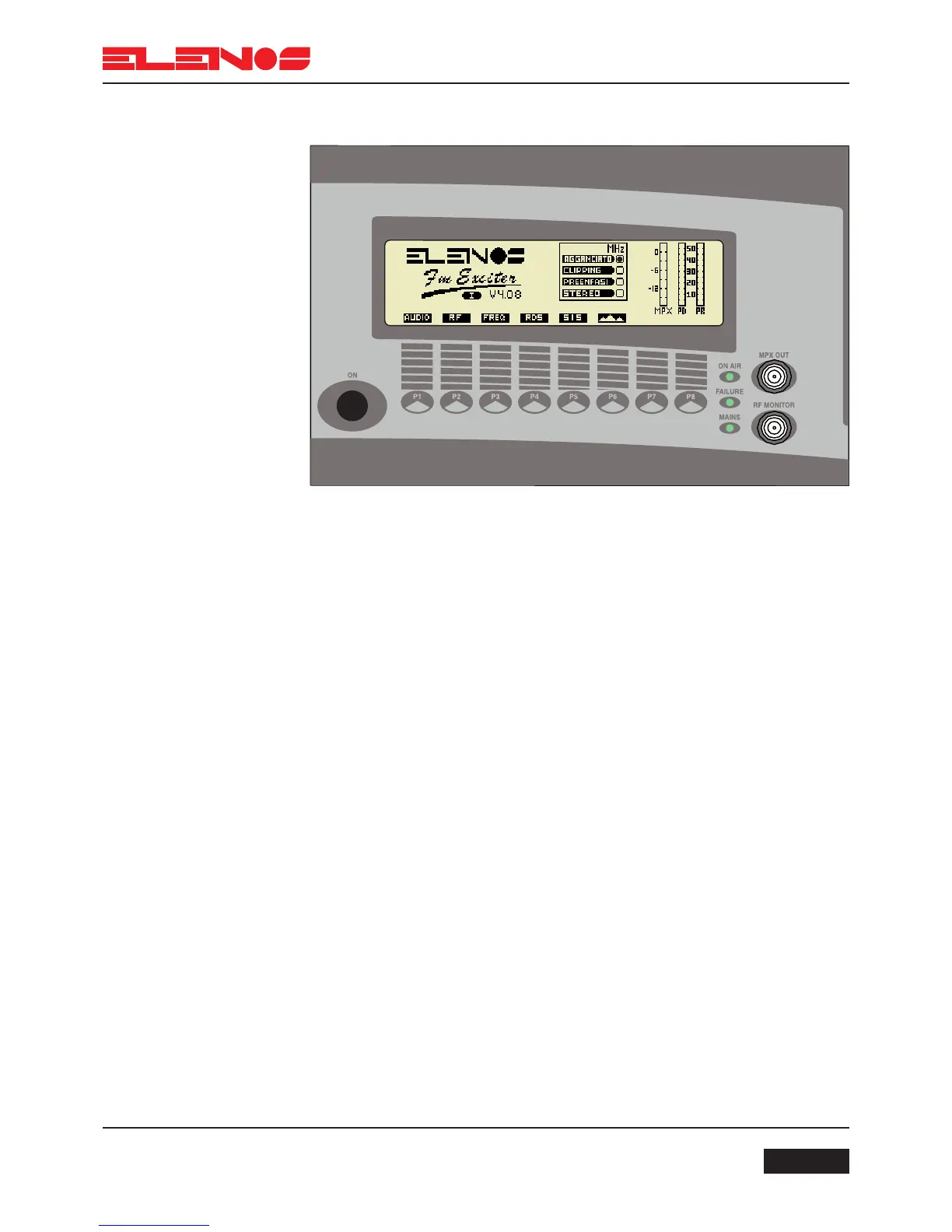

Functions Menu
Press key P1 to access the audio menu
Press key P2 to access the RF menu
Press key P3 to access the frequency programming menu
Press key P4 to access the RDS menu if the optional RDS board is fitted
Press key P5 to access the user setup menu
Press key P6 to access the deviation and statistics menu
The following parameters are displayed in the Functions menu: MPX level, direct
power, reflected power, operating frequency, PLL lock, clipper operation, insertion of pre-
emphasis and activation of the stereo encoder.
Once the functions menu has been entered, if no key is pressed, the main menu
will automatically appear after 10 seconds.
