3. USER INSTRUCTIONS
3.4.3.
Audio Menu
 Press key P1 to return to the functions menu
 Press key P4 to set the input signal level (default 0dBm)
 Press key P2 to reduce the input signal level
 Press key P3 to increase the input signal level
 Press key P6 to save the adjustment made
 Press key P5 to disable or re-enable the audio signal

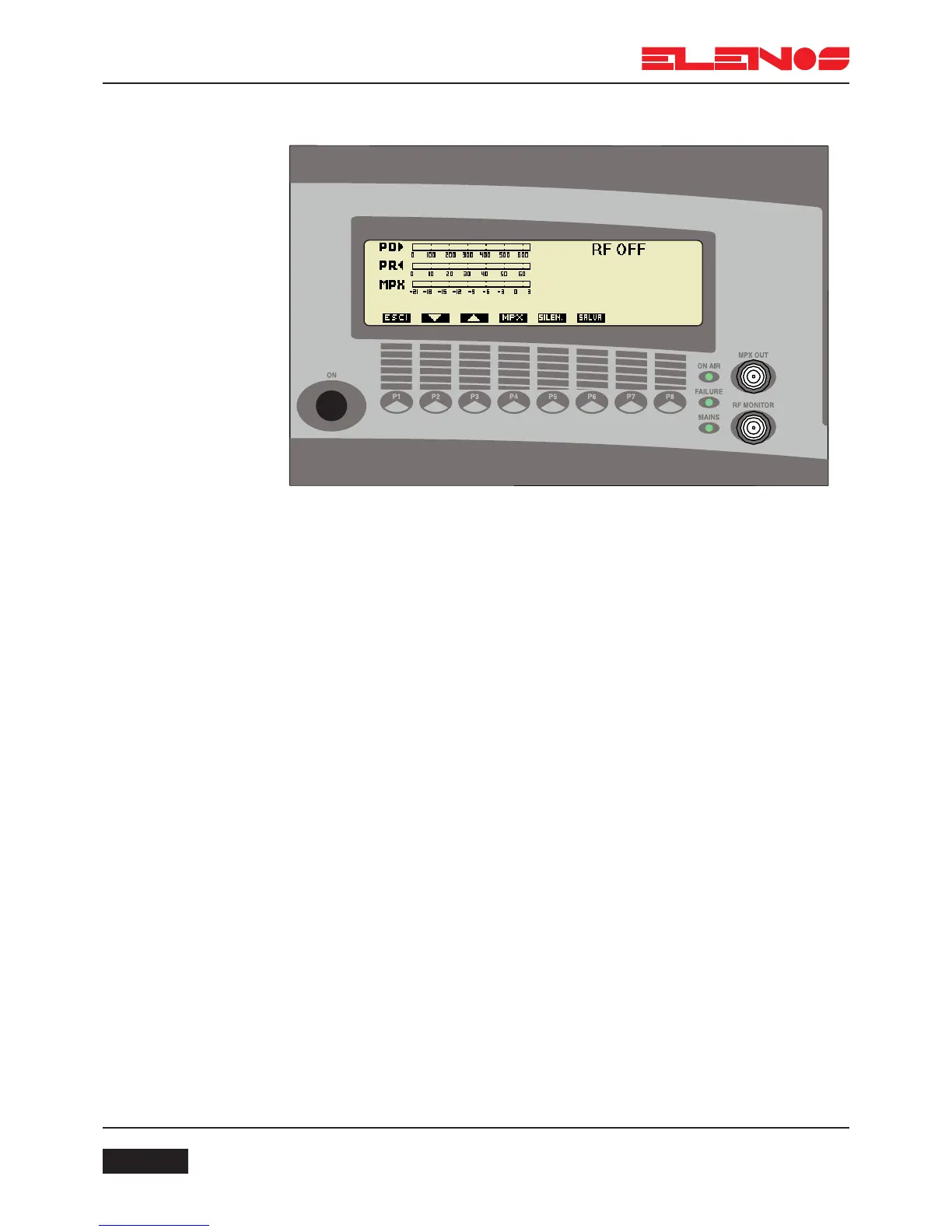

The audio menu displays the following parameters: direct power, reflected power and
MPX signal level in both “analog” and numerical form. In the diagram direct power is
disabled (RF OFF), the reflected power is 0W and the MPX signal level is -21dBm.
If the stereo encoder is present, the indication of direct and reflected power is
replaced by the level of the signals on the left and right channels.
Adjustment of the input signal level
F M
T R A N S M I T T E R
0.0
-21.0
