3. USER INSTRUCTIONS
 Press key P1 to return to the main menu
 Press key P8 to return to the deviation menu (previous page)

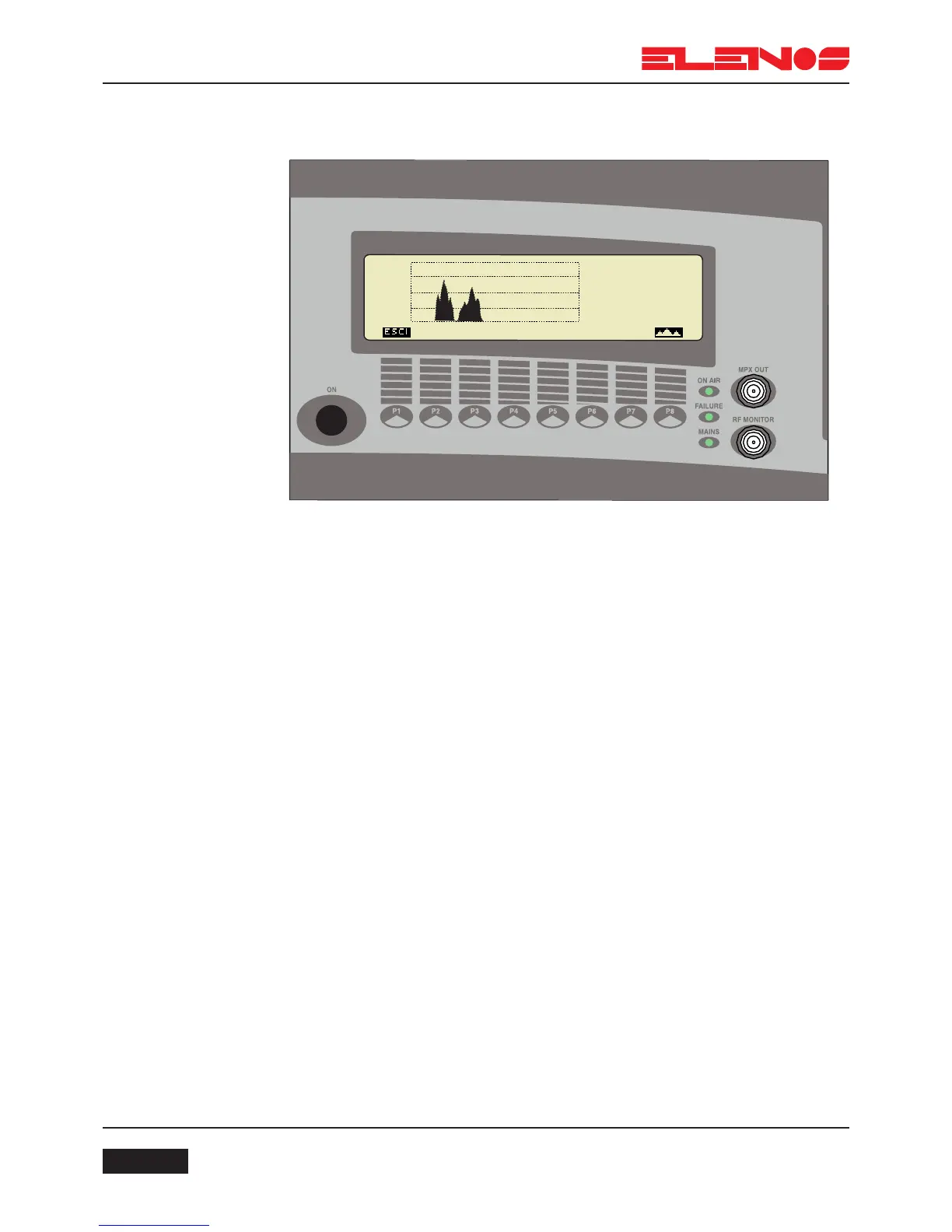

This window displays the percentage modulation (MPX).
The graphics aIlow evaluation of how much deviation is present and the percentage exce-
eding 75KHz of deviation.
- Y AXIS: The grid highlights the values 0%, 25%, 75%, 100%
- X AXIS: The grid highlights deviation values 0, 25, 50, 75, 100KHz
3.4.9.
Deviation and
Statistics Menu
From the deviation menu (page 25)
 Press key P8 to display Statistics
F M
T R A N S M I T T E R
25K 50K 75K 100K
75%
50%
25%
25KHz/div.
