EuroMaster AutoEV
22
VI. When the measurement is completed, the L-PE impedance measurement value and PFC (If) value
are displayed on the screen.
L-PE
LOOP
No Trip
0.65
Ω
If
353
A
R: 0.65 Ω
XL: ----------- Ω
0
OK
TN-net
0 230
230

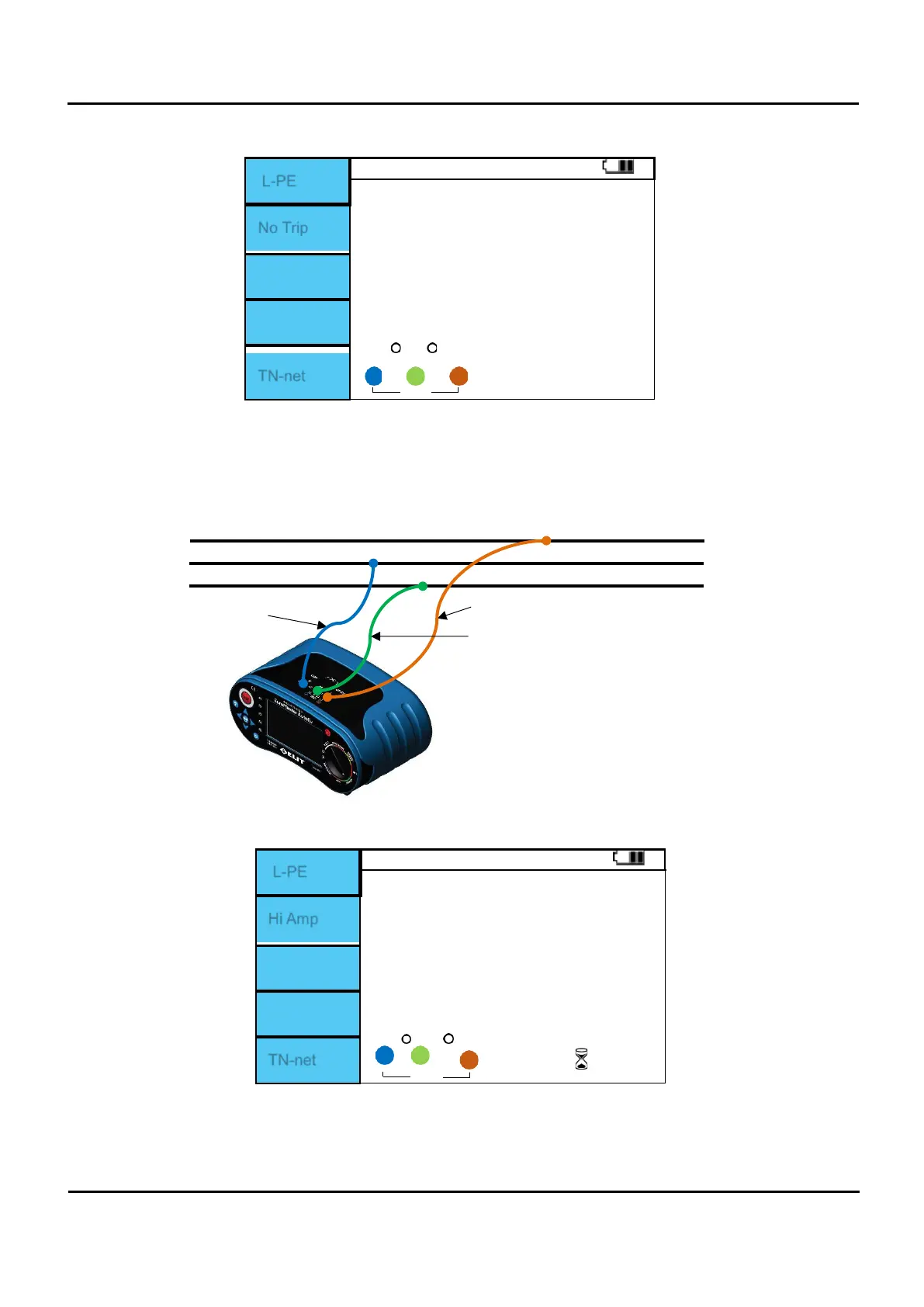

Figure 6.5.3 Loop / No Trip Measurement completed.
 Please use it where RCD >30mA is installed. (The measurement current is <15mA.)
 The Loop / No Trip function does not measure XL values.
 Loop / Hi Amp
N(Blue)
L
N
PE
L (Brown)
PE (Green)
Figure 6.5.4 Loop / Hi Amp Connection.
L-PE
LOOP
Hi Amp
---
Ω
If
---
A
R: ---- Ω
XL: ----
Ω
0
0
230
OK
TN-net
230
Figure 6.5.5 Loop / Hi Amp screen.
