I.
Set the rotary switch to Low Ohm.
II.
If the function is set to CONTINUTY, press the F1 button and hold for 2 seconds to change to the
LOWOHM function.
III.
Use the F1 button to select PE-COM or PE-L.
IV.
The F2, F3 button menu calculates and displays the length of a wire with a sectional area of 1.5 mm
2
,
2.5 mm
2
as measured resistance values.
V.
The F4 button calculates and displays the length of the wire with a 10 mm
2
, 16 mm
2
, 25 mm
2
, and 50
mm
2
cross section as measured resistance values.
VI.
Connect the measuring position of the terminal as shown in Figure 6.9.1 or 6.9.2.
VII.
If there is no voltage induced when connected to the measurement position, press the Test button.
VIII.
The symbol during measurement is displayed and the measured value is displayed.
IX.
When measurement is completed, the measured value is displayed on the screen.
PE-L
1.5mm
2
269.5 m
2
Comp : 0.00 Ω
R+ : 3.10 Ω R- : 3.10 Ω
10mm
2
0
0

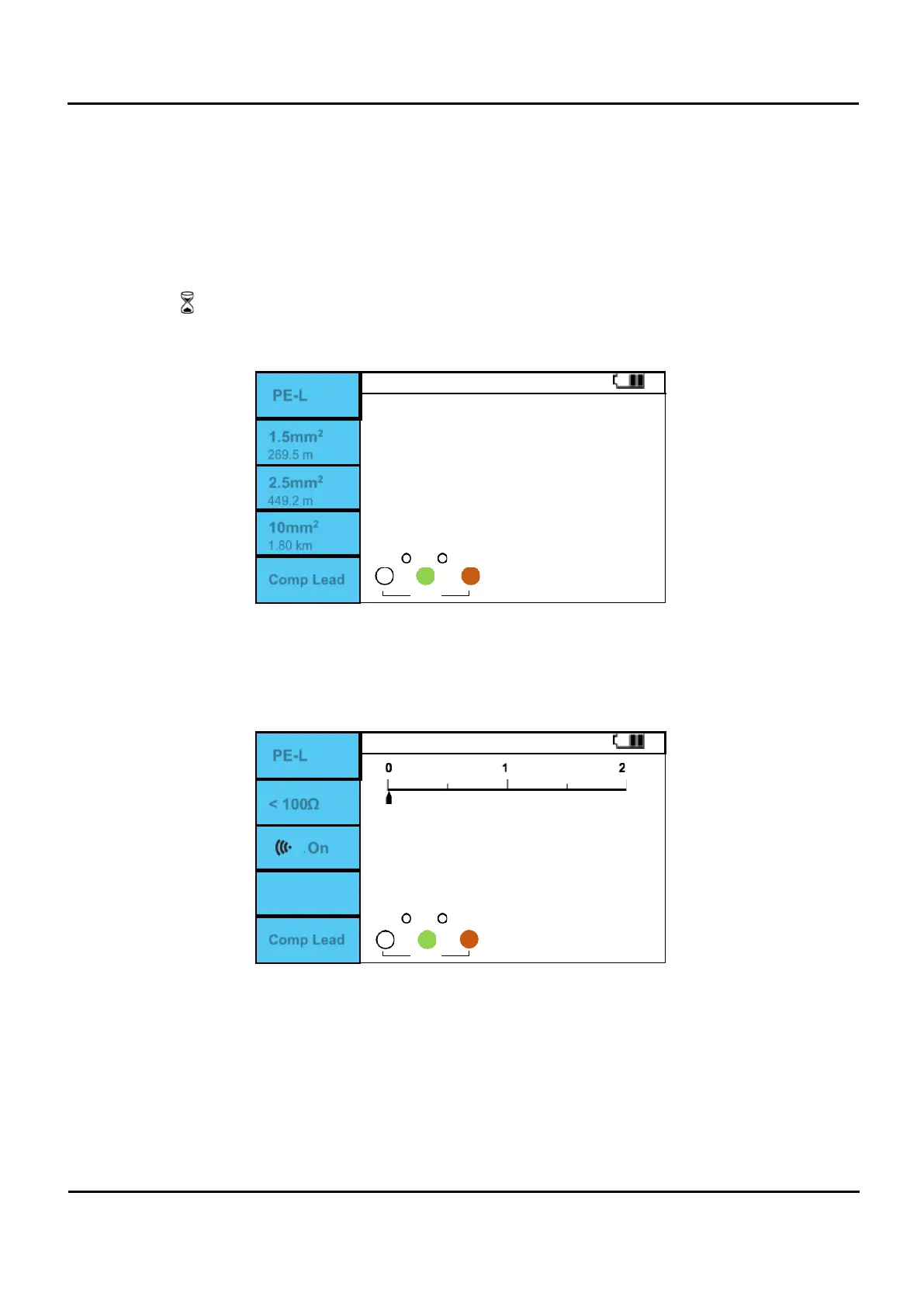

Figure 6.9.4 Low ohm L-PE Measurement completed.
CONTINUTY / +200mA
PE-L
< 100Ω
On
Comp : 0.00 Ω
Figure 6.9.5 CONTINUTY L-PE screen.
I.
Set the rotary switch to Low Ohm.
II.
If it is the LOWOHM function, press the F1 button and hold for 2 seconds to change to the CONTINUTY
function.
III.
If it is the LOWOHM function, press the F1 button and hold for 2 seconds to change to the CONTINUTY
function.
