3.5.7.3 Analog Input (Port J7)
Notes for connecting the analog input cable:
 Use 24, 26 or 28 AWG twisted pair shielded cable.
 Connect the cable shield to the ground near the signal source (controller)
according to the manufacturer’s recommendations.
Pin Signal Function Pin Position
1 ANLIN1+ Analog input 1+
2 ANLIN1- Analog input 1-
3 ANLRET Analog ground
Table 3-14: Analog Input Cable Pin Assignments
Bassoon
ANLIN1+
ANLIN1-
ANLRET
1
2
3
Single-Ended SourceAnalog Inputs - J7
BAS0022A

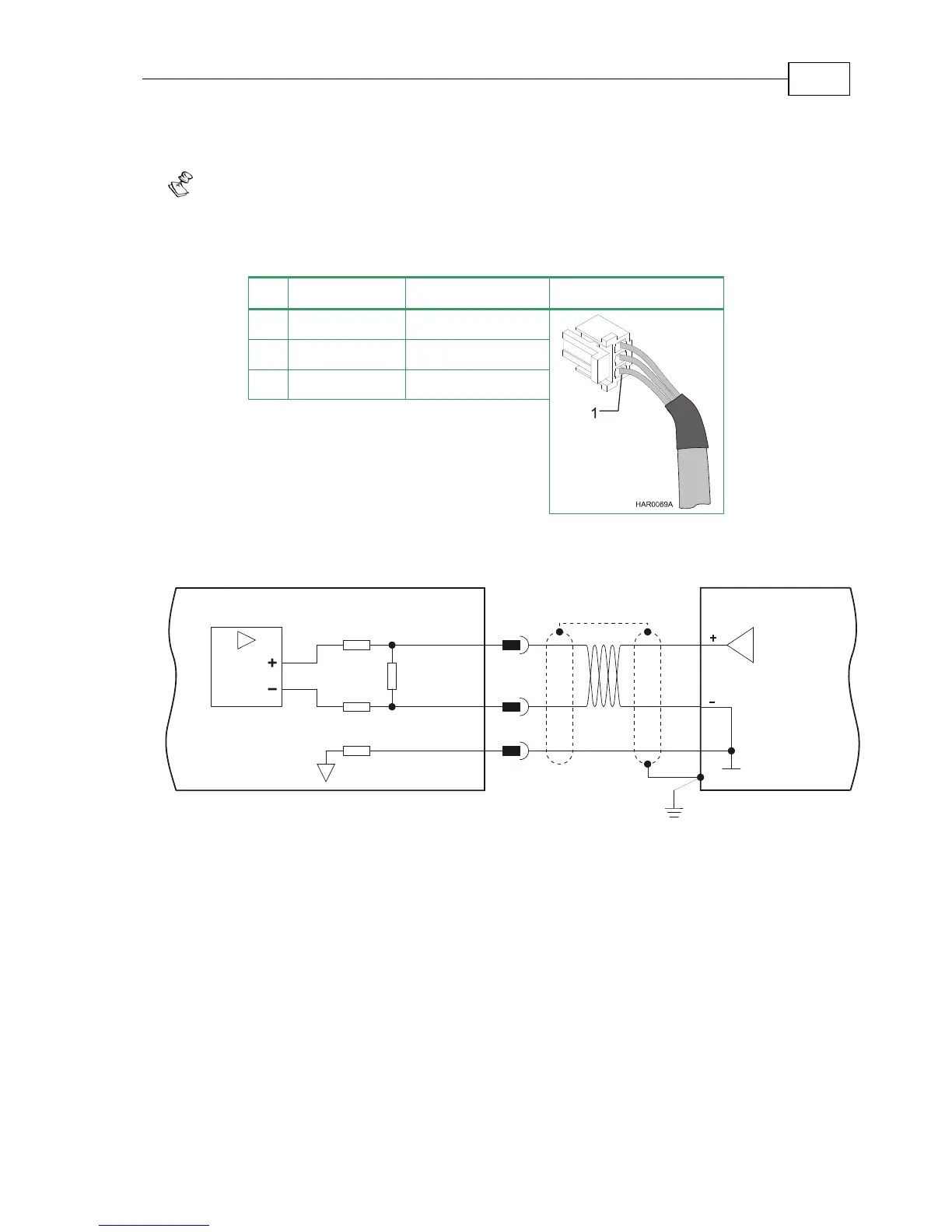

Figure 3-26: Analog Input with Single-ended Source
Bassoon Installation Guide Installation
MAN-BASIG (Ver 1.4)
3-31
