A.11 Pulse Width Modulation (PWM)
Feature Details
PWM resolution 12-bit
PWM switching frequency on the load 2/ Ts (factory default 22 kHz on the motor)
A.12 Heat Sink Specifications
The following table indicates the RMS output power when operating the Bassoon at
nominal DC bus voltage:
Bassoon 1/230 3/230 6/230
RMS output power without heat sink (%)
80
40 20
If the input voltage is lower, the RMS output current without a heatsink is higher.
Two types of heat sinks are recommended for ensuring maximum continuous output
power of the drive:
Finned heat sink
L-Shaped heat sink
BAS_FIN_HS

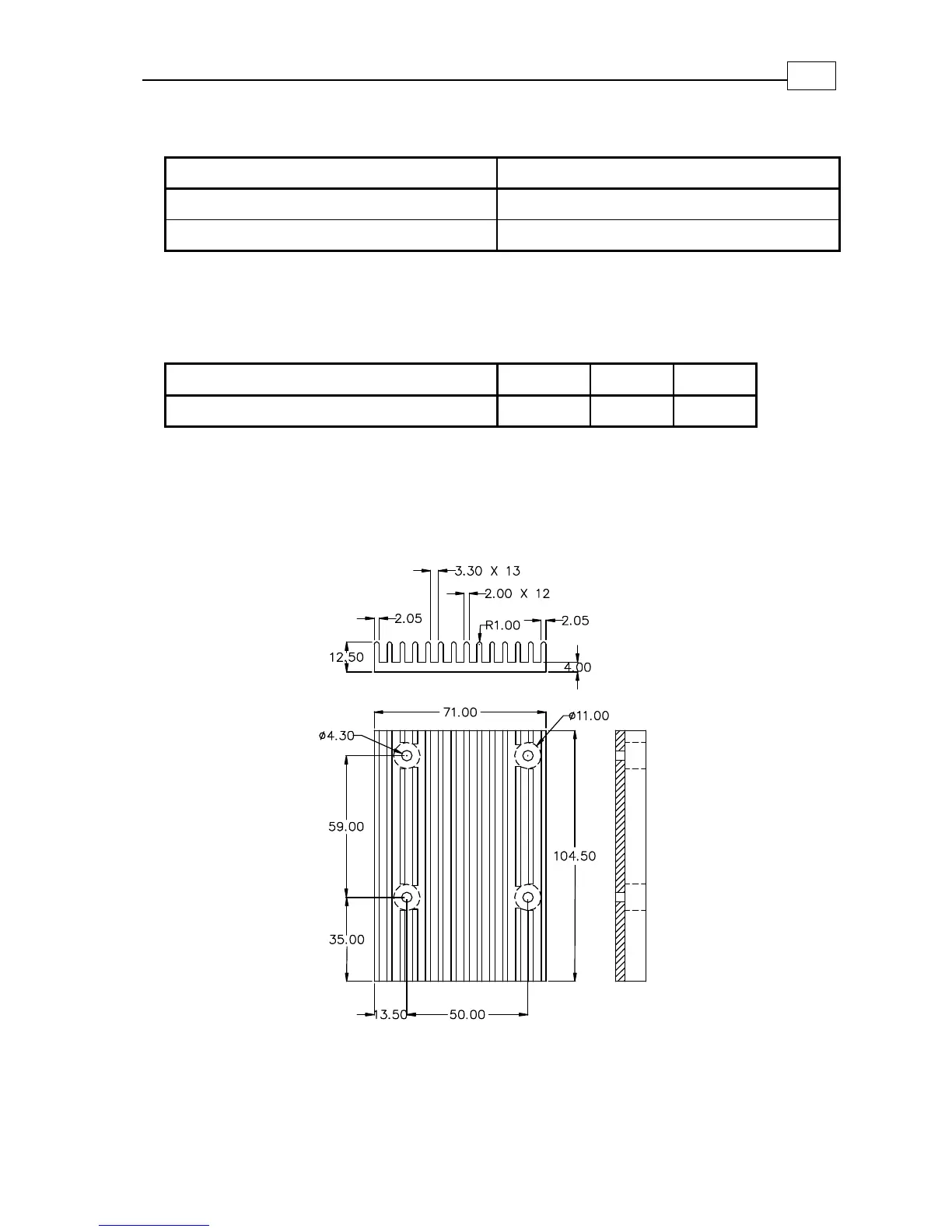

Figure A-4: Fin-Type Heat Sink Dimensions
Bassoon Installation Guide Technical Specifications
MAN-BASIG (Ver 1.4)
A-16
