A.5 Bassoon Connectors
A.5.1 Connector Types

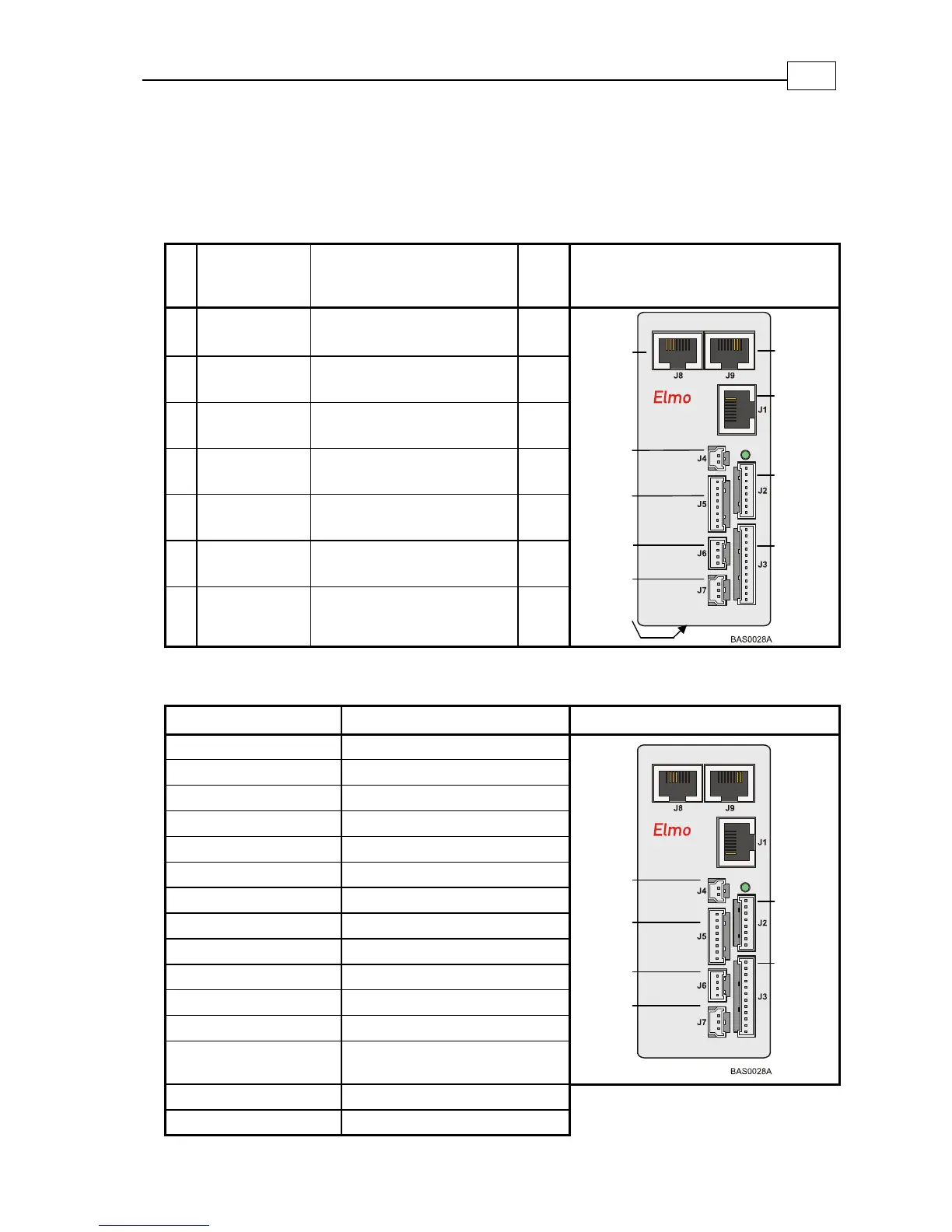

The table below shows the connector panel of the Bassoon.
Pin
s
Type
Connector Maker & No. /
Mating Plug (on Cable) Port
Connector Location
8 RJ-45
RJ-45 jack
mates with RJ-45 plug
J1,
J8, J9
8 2 mm Pitch
Molex 35363-0800
mates with 35507-0800
J2, J5
12 2 mm Pitch
Molex 35363-1200
mates with 35507-1200
J3
2 2 mm Pitch
Molex 35363-0200
mates with 35507-0200
J4
4 2 mm Pitch
Molex 35363-0400
mates with 35507-0400
J6
3 2 mm Pitch
Molex 35363-0300
mates with 35507-0300
J7
7
5.08 mm Pitch
Terminal Block
Phoenix MSTBA 2.5/7-G-5.08
with MSTB 2.5/7-ST-5.08
powe
r
A.5.2 Control and Feedback Connector Specifications
Feature Details
Connector Location
Product name Sherlock
Manufacturer Molex
Wire size 24, 26, 28, 30 AWG
Maximum current 2 A
Temperature range -40° to 105° C (-40° to 221° F)
Plating contact Tin/Lead (Sn/Pb)
Maximum voltage 125 V
Contact resistance < 20 mΩ
Withstanding voltage 500 VAC
Insulation resistance > 1000 MΩ
Terminal contact Phosphor bronze
UL files E29179, UL 94 V-0
Cable connector Molex 35507-XX00, where XX
is the number of leads
Hand crimper Molex 63811-1200
Crimp terminal Molex 50212
Auxiliary
Power
supply
Digital
Output
Analog
Input
Digital
Input
Auxiliary
Power
Supply
Auxiliary
Feedback
Main
Feedback
Main
Power
CANopen
RS232
Digital
Input
Digital
Output
Analog
Input
Auxiliary
Feedback
Main
Feedback
CANopen
